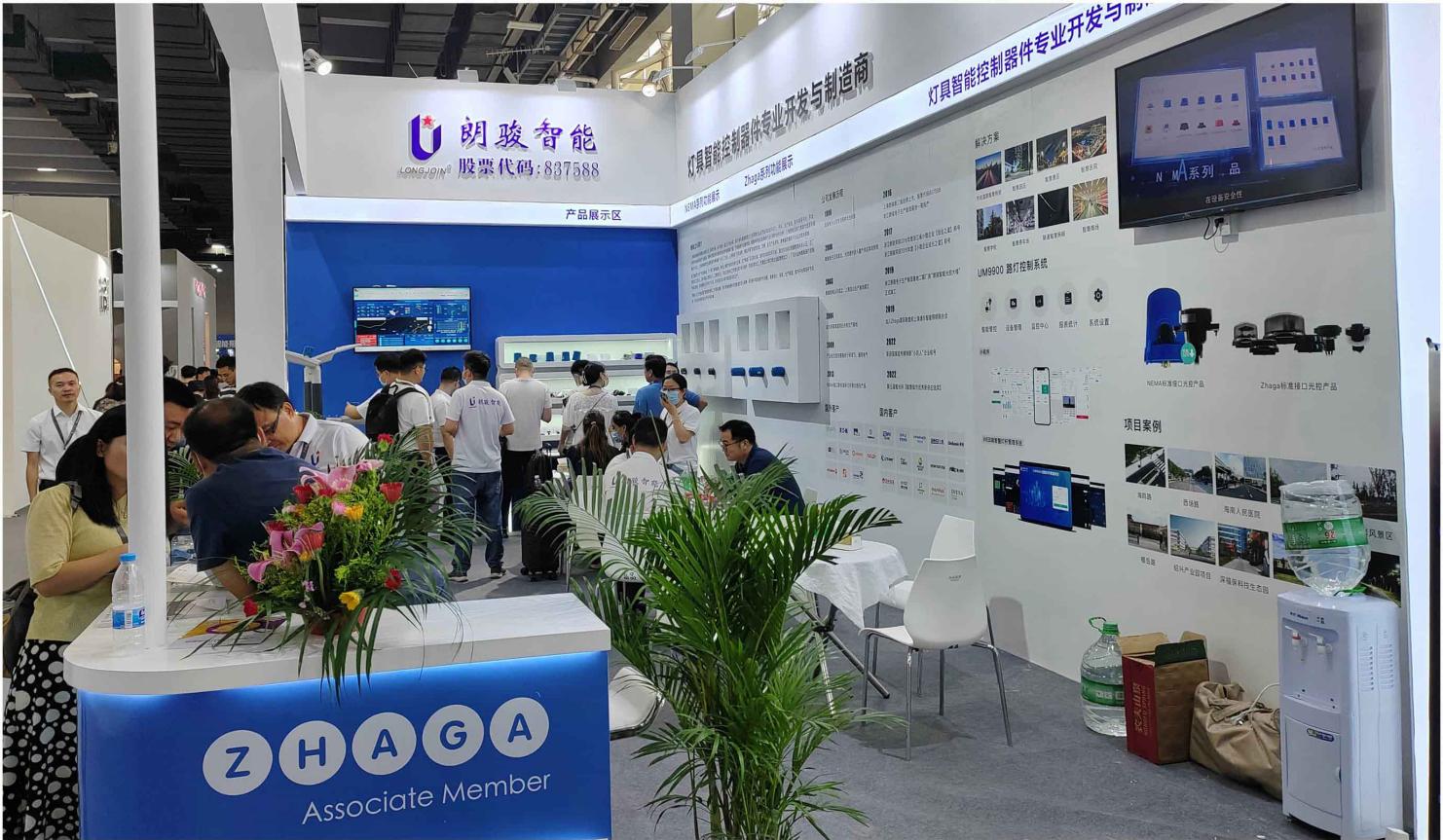

On June 12, 2023 Guangzhou International Lighting Exhibition (hereinafter referred to as: Light Asia Exhibition) in Guangzhou China Import and Export Fair hall ended successfully. longjoin Intelligent (stock code: 837588) with self-developed NEMA and ZHAGA interface light controller and accessories and other best-selling intelligent light control products and UM9900 smart light pole management system shine in the exhibition with smart new products to attract many on-site visitors and enterprises stop to consult.
In this year's Light Asia Exhibition, longjoin Intelligent brought four new networked intelligent light control products:
Based on NEMA interface: JL-245CG NEMA Interface spiral lock intelligent light controller (New)
LTE CAT1 communication mode, support all Netcom, external SIM card, application landing can be selected according to the specific project needs of the appropriate operator, to solve the uncertainty of the built-in SIM stock operator and the product needs to be sealed by the factory. The dimming mode is 0-10V. In addition to remote real-time/strategic control, the product also supports autonomous acquisition of ambient light for self-sensitive control. Self-sensitive + strategic control can achieve a more intelligent lighting control experience. It has high protection capability, such as IP67 protection level, 10KV/5KA surge protection capability, zero crossing switch, etc., and supports automatic reporting and automatic protection of over-voltage/under-voltage/over-current faults.

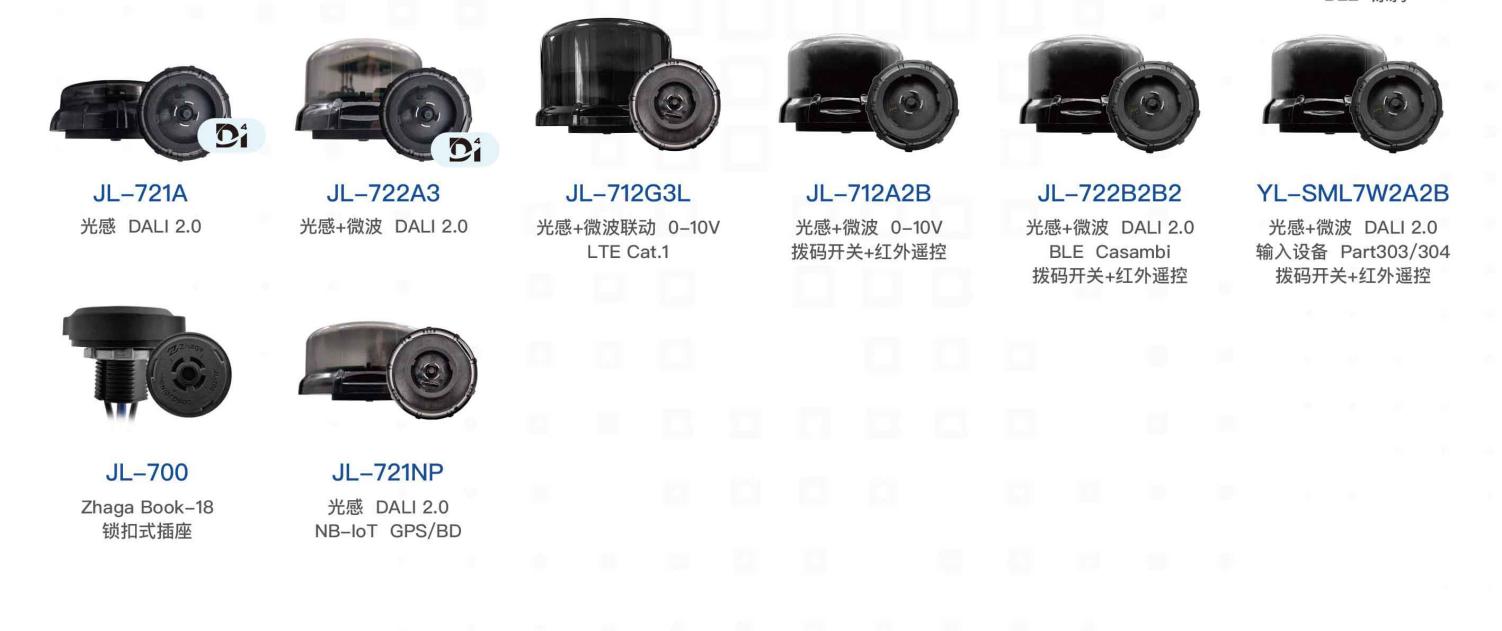

Based on Zhaga interface: JL-721NP Zhaga Book-18 Latch controller:
Adopt NB-IOT communication mode, support full Netcom, external SIM card, application landing can be selected according to the specific project needs of the appropriate operator, to solve the uncertainty of the built-in SIM stock operator and the product needs to be factory sealed contradiction. Products have many high-performance positioning satellite system function, contains the BDS/GPS/GLONASS/GALILEO/QZSS/SBAS, etc. Dimming mode is DALI2.0. In addition to remote real-time/strategic control, the product also supports autonomous acquisition of ambient light for self-sensitive control. Self-sensitive + strategic control can achieve a more intelligent lighting control experience. In addition, the light sense has the reflected light compensation function, which solves the problem of lighting itself when the product mounting surface is located on the luminaire's luminous surface. Products support formal, reverse and side loading, and can guarantee the protection level of IP66.
Based on Zhaga interface: JL-712G3L Zhaga Book-18 latch controller
LTE CAT1 communication mode, support all Netcom, external SIM card, application landing can be selected according to the specific project needs of the appropriate operator, to solve the uncertainty of the built-in SIM stock operator and the product needs to be sealed by the factory. The dimming mode is 0-10V, and supports light sensing + microwave induction. In addition to remote real-time/strategic control, the product also supports self-sensitive + microwave induction control, and supports microwave linkage between different devices. The linkage mode can be flexibly configured through our UM9900 system. In addition, the light sense has the reflected light compensation function, which solves the problem of lighting itself when the product mounting surface is located on the luminaire's luminous surface. Products support formal, reverse and side loading, and can guarantee the protection level of IP66.
Zhaga interface based: JL-712B2 Zhaga Book-18 latch controller
This controller product is based on the Zhaga Book-18 interface standard development of intelligent locking controller, using light sensing + microwave mobile sensor combination, on-demand lighting, intelligent power saving. It can be dimmed from 0 to 10V, only 12 to 24VDC power supply, low power consumption, can automatically adjust the dynamic microwave frequency, avoid dense installation mutual interference, and equipped with Bluetooth mesh communication network, which can be controlled and configured through APP near field. It also supports third-party voice control, such as Alexa, Google Assistant, SmartThing, IFTTT, Xiaodu, Tencent Xiaowei, Dingdong and more. The controller is very small in size, can be installed to all kinds of lamps, suitable for roads, lawns, courtyards, parks, parking lots, industrial and mining lighting scenes, especially with Zhaga socket UFO lights.
In addition, it also brought Lang Jun intelligent classic light control products based on NEMA interface that are loved by new and old customers: JL-246CG NEMA interface spiral lock intelligent light controller (ZigBee master), JL-245CZ NEMA interface spiral lock intelligent light controller (ZigBee sub-controller), JL-471CZ ZigBee built-in intelligent light controller, JL-245CN NEMA interface spiral lock intelligent light controller (NB-IoT version), JL-205C spiral lock analog electronic light control switch (bright light), JL-412C (R) wired micro CNC light control switch, JL-260D NEMA interface spiral lock light controller socket (7P flagship ultra-thin waterproof rotable version), JL-240XHA NEMA interface fixed screw lock type light control socket (NEMA 7P/5P curved touch plate version), JL-230F screw lock type light control switch socket (high waterproof type). And the three star light control products of Zhaga interface: JL-711A2 Zhaga Book-18 latch controller, JL-700 Zhaga Book-18 latch socket (pre-installed waterproof version), JL-700K Zhaga Book-18 latch socket.
The Zhaga series of products produced by longjoin intelligent R & D is smaller than the NEMA series of products, the structural cost and electronic cost can be greatly reduced, the installation position is more flexible, no longer limited to the top of the lamp, but also can be installed in any position of the lamp 360 degrees, and the application scenario is more, in addition to outdoor, It can also meet the various needs of indoor home application scenarios. At the same time, compared with the NEMA interface products that need to reach the protection level above IP65 when installed forward, the JL-7 series Zhaga interface intelligent latch controller products can reach the ultra-high protection level of IP66 in any installation direction. In addition, the DC-powered Zhaga interface is better suited to different voltage conditions in different countries than the AC-powered NEMA interface.
As an important interface for intelligent outdoor lighting, Zhaga book18 connects intelligent digital D4i power supply and intelligent lighting controller, making intelligent lighting installation, maintenance and upgrade plug and play, interworking. After joining the Zhaga Alliance in 2019, three products of longjoin Intelligent passed the rigorous testing of Dekra, Zhaga certification laboratory, and obtained certification in the same year. The three intelligent Zhaga interface products obtained Dekra quality inspection certification are: JL-701J Zhaga interface intelligent locking controller base, which has passed the inspection and certification in terms of shape diagram, outer diameter, mechanical braking, sealing surface and contact degree; JL-700 Zhaga interface intelligent lock type controller socket, which has passed the test and certification in the shape diagram, fit and contact production, plug and pull torque, contact degree; JL-700 Zhaga interface intelligent lock type controller socket protective cap, which has passed the shape diagram, outer diameter, mechanical braking and sealing surface test certification.

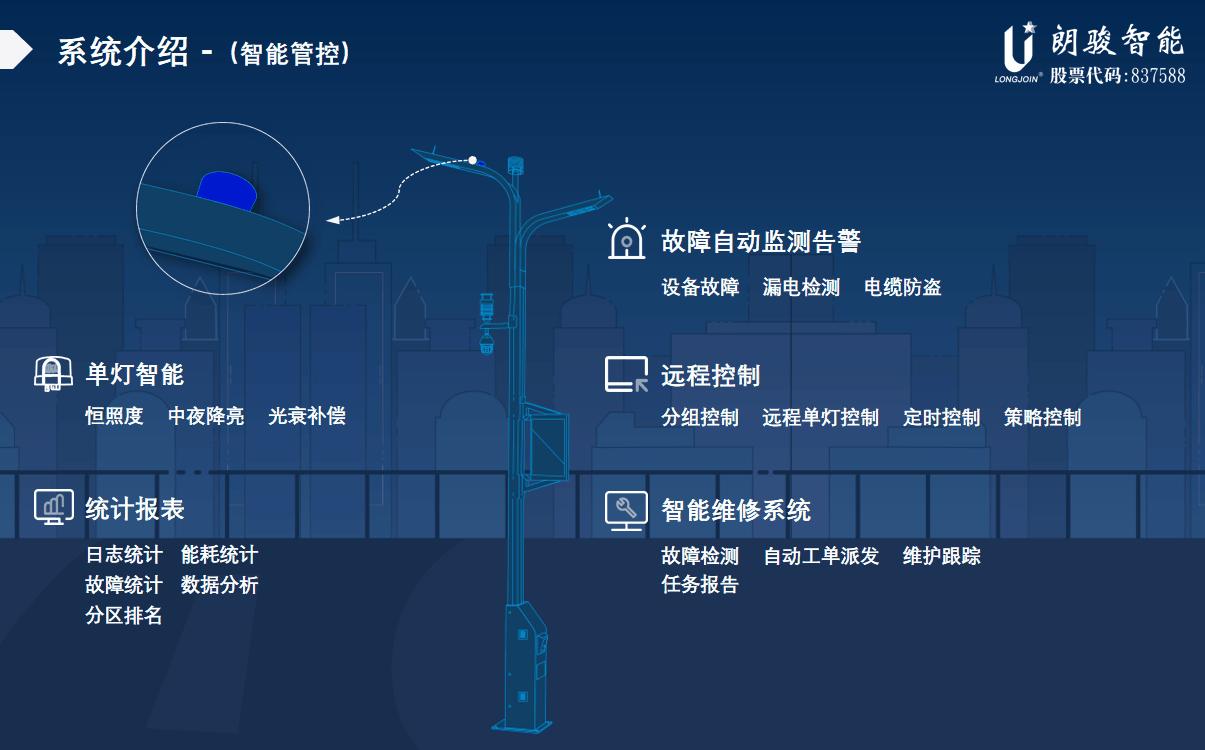

In addition, the system brought by longjoin Intelligence this time is the UM9900 intelligent light pole management system independently developed by its subsidiary Unilink Intelligence, which includes the business content of two large sectors:
One: Smart light pole lighting subsystem. The plate system is the intelligent road lighting management system (formerly UM9000 system), the content includes single light intelligence, remote control, report statistics, automatic fault detection alarm, intelligent work order system and other five powerful functions! The system combines novel technologies such as wireless communication, Internet and cloud computing to make urban road lighting projects more intelligent, environmentally friendly and energy-saving, and greatly reduces the complexity and cost of the entire lighting project through standardized technical interfaces. This smart road lighting management system also won the "Smart Light Cup" new supply chain Integration Award issued by Shanghai Pudong Intelligent Lighting Federation for two consecutive years in 2019 and 2020.
Two: Other subsystems of the smart light pole. The content of the plate integrates 5G network base stations, environmental monitoring, video surveillance, AP coverage, LED information screen, IP audio, new energy charging, alarms, mobile phone charging and other solutions, according to the actual needs of different streets and regions of the light pole, can achieve a full range of customized upgrading and optimization.
LongJoin was founded in 1996, in 2003, Shanghai longjoin electromechanical division, specializing in the design and development of light control switch devices and manufacturing. On February 14, 2016, it implemented the share reform and changed its name to Shanghai longjoin Intelligent Technology Co., LTD., and was listed on the National Small and medium-sized Enterprise share transfer system, the "New Third Board", with stock code 837588. Zhejiang longjoin Electronic Technology Co., Ltd. is a wholly-owned subsidiary of Shanghai longjoin Intelligent Technology Co., LTD. Shanghai longjoin Intelligent has been established for 20 years, is a professional R & D and production of intelligent light controller enterprises, is currently the world leader in the industry, has been listed on the New third board.
The company's main line products have also obtained the United States UL and CUL safety certification, a number of derivative and serialized products have completed the type and submitted safety certification, and the market share of North America has reached more than 60% for 10 consecutive years, and the market share of South America, Europe and Southeast Asia has reached more than 70%. For the famous lighting giant Xinofei, General Electric lighting, Cree lighting, Eaton Cooper and other designated supplier brand.
LongJoin focuses on independent single lamp control solutions for more than 20 years, has accumulated a large number of patented technologies and know-how, serves top customer groups, has its own professional manufacturing base, and has a dedicated production line automation R & D team based on photoelectric induction control technology applications, with a complete product line and leading output, which can ensure the needs of large users. Is a set of technology research and development, product design, manufacturing, service intelligent management solution provider. The company also won the Shanghai high-tech Enterprise, Shanghai "specialized and special new" enterprise honorary certificate. The company is also committed to the rapid introduction of new technology applications, original intelligent single light telemetry integrated control solutions, the industry's upstream and downstream resources are fully integrated, to provide a complete application solution ahead of the market, will continue to contribute to the continuous upgrading of the outdoor intelligent light control industry.
