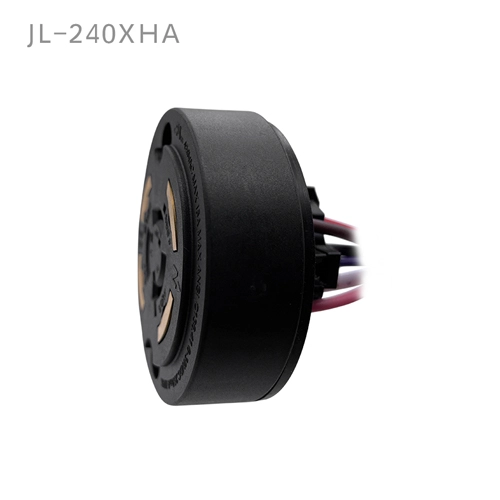

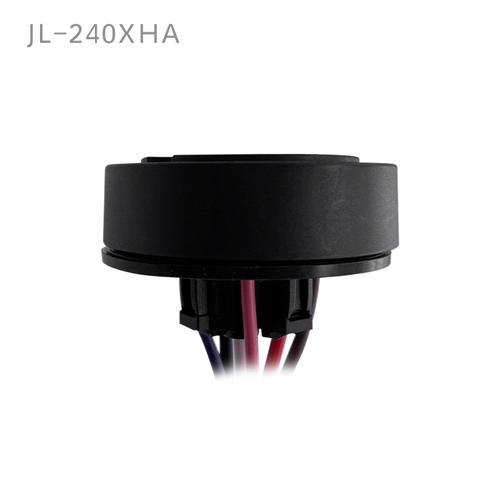

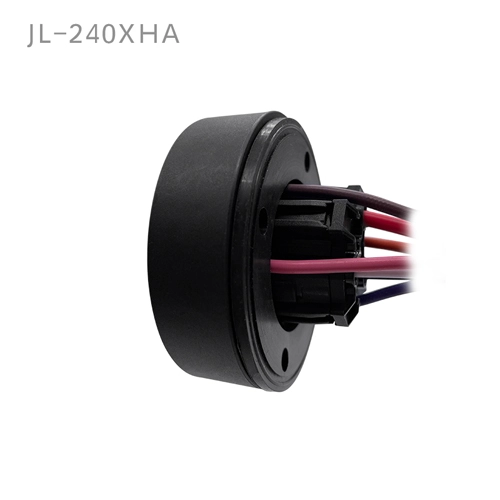

Name: JL-240XHA Built-In 7-Pin NEMA Socket
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-240XHA Built-In 7-Pin NEMA Socket Overview:

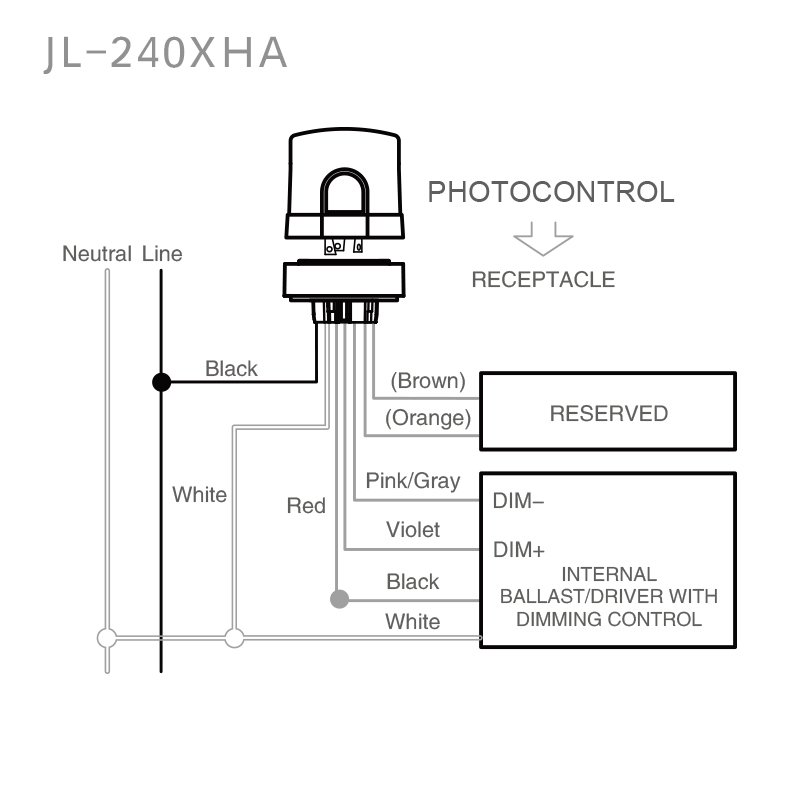

The JL-240XHA twist-lock photocell socket is specifically engineered for outdoor lighting fixtures, designed to accommodate twist-lock photocells for the management of LED lighting. This model features four gold-plated, arc-shaped contact tabs on its top surface, which align with the spring contacts of twist-lock photocells (ANSI C136.41), and comes with four signal wires at the rear. The JL-240XHA meets the standards set by ANSI C136.10, ANSI C136.41, and ANSI/UL773 for the use of insert and twist-lock photocells in area lighting applications.

JL-240XHA Built-In 7-Pin NEMA Socket Specifications

Model No.	JL-240XH
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Load Rating	15A
Signal Control	0-30 VDC, 250 mA Max
Lead	16AWG/14AWG 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Outdoor Wiring Cable	●
Certifications	ANSI C136.41-2013
