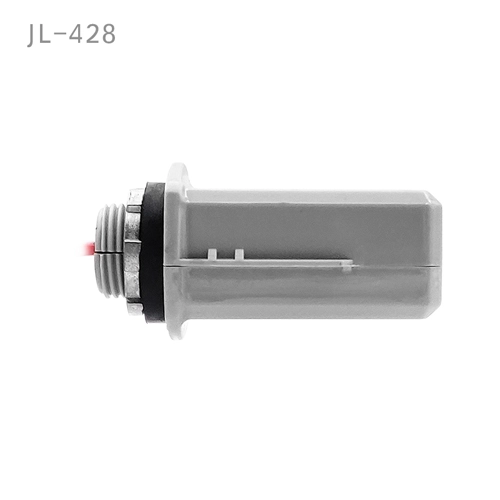

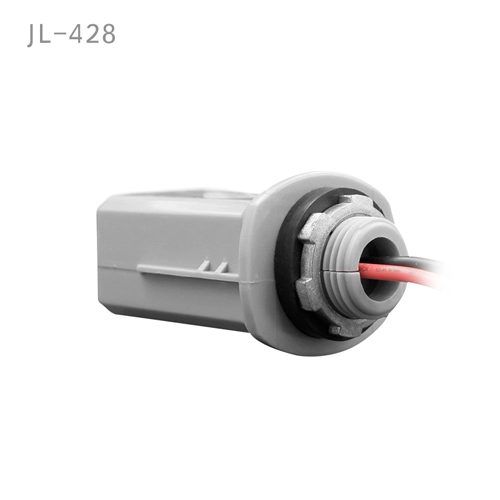

Name: JL-428 Conduit Wire-In Digital Photocontrol
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-428 Conduit Wire-In Digital Photocontrol Overview:

The JL-428 series of photocontrols is suitable for automatically regulating lighting in passageways and doorways, responding to the ambient light levels. These devices feature electronic circuits with an integrated microcontroller unit (MCU). Their rapid response, coupled with a 5-second time delay, facilitates easy testing while preventing unnecessary activation from vehicle headlights or lightning at night. Additionally, the series is equipped for midnight shutdown and pre-dawn reactivation. The optional Z model includes zero-crossing technology for increased longevity and meets FCC compliance. Moreover, the JL-428 series offers surge protection up to 235J/5000A.

JL-428 Conduit Wire-In Digital Photocontrol Specifications

Model No.	JL-428C	JL-428CZ
Rated Voltage	120~277VAC
Available Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Rated Loading	1000W Tungsten 1200VA Ballast @120VAC 1800VA Ballast @208-277VAC 8A e-Ballast @120VAC 5A e-Ballast @208-277VAC
Power Consumption	0.5W Max.
Operate Levels	16Lx Turn-On / 24Lx Turn-Off (customizable)
Time-delay	5-10s (customizable)
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Leads Length	AWG #16, AWM 1015 4" min

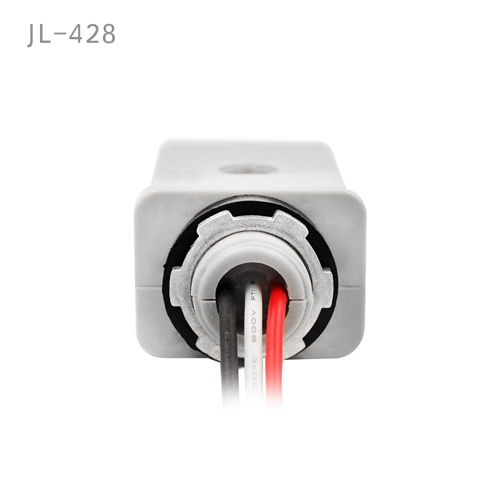

Wire Color Coding	US
Failure Mode	C4: Fail-Off C5: Fail-On
Surge Protection (MOV)	●
Zero Crossing	●
FCC	●	N/A
Certifications

JL-428 Conduit Wire-In Digital Photocontrol Installation

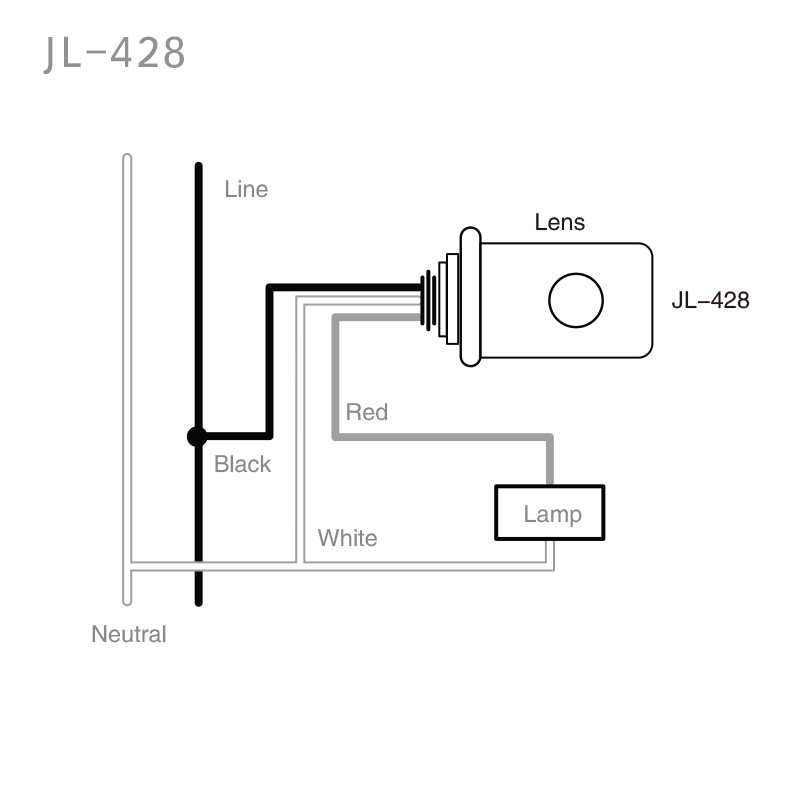

Disconnect power, remove junction box cover, place the photocontrol in knockout hole and fasten with locknut. Wire according to the diagram in right hand.Do not install the photocontrol with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.

JL-428 Conduit Wire-In Digital Photocontrol Installation
