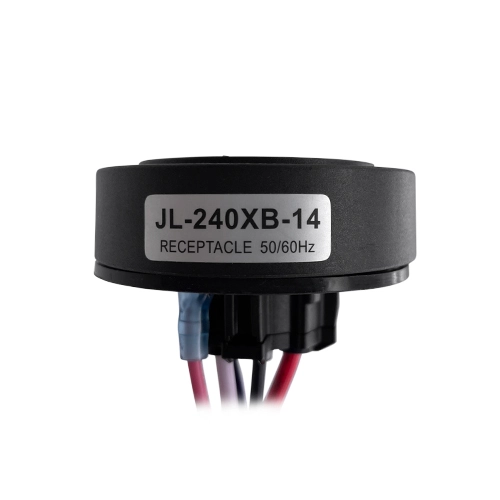

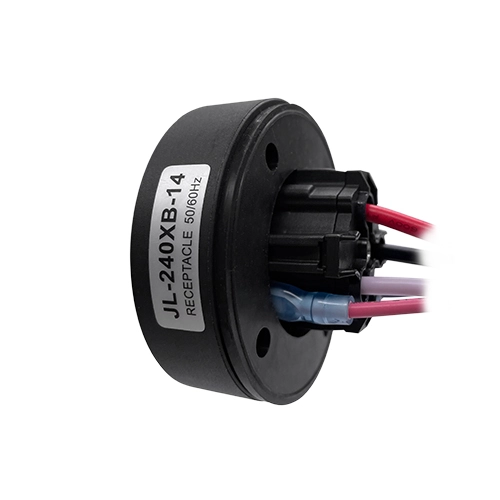

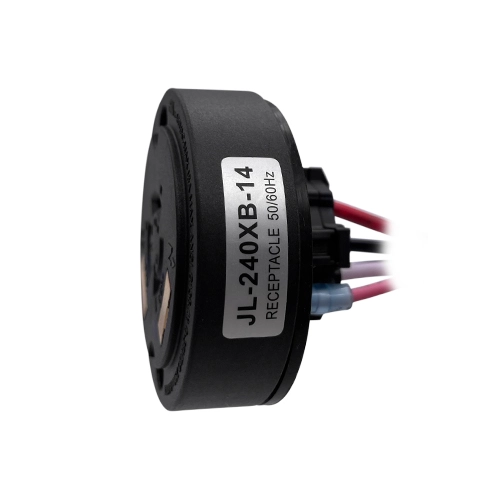

Name: JL-240XB Built-In 5-Pin NEMA Socket
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-240XB Built-In 5-Pin NEMA Socket Overview:

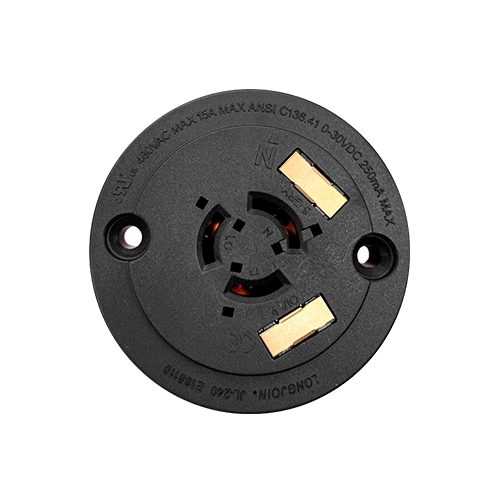

The JL-240XB twist-lock photocell socket, with a detachable gasket design, is crafted for outdoor lighting fixtures to facilitate the control of LED luminaires with twist-lock photocells. This model features two gold-plated contact tabs on its upper surface, aligning with the spring contacts of twist-lock photocells as specified by ANSI C136.41, and it includes two signal wires at the rear. The JL-240XB meets the criteria for insert and twist-lock photocells as outlined in ANSI C136.10, ANSI C136.41, and ANSI/UL773 standards for area lighting applications.

JL-240XB Built-In 5-Pin NEMA Socket Specifications

Model No.	JL-240X/TX
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Load Rating	15A
Signal Control	0-30 VDC, 250 mA Max
Lead	16AWG,14AWG 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Outdoor Wiring Cable	●
Certifications	ANSI C136.41-2013
