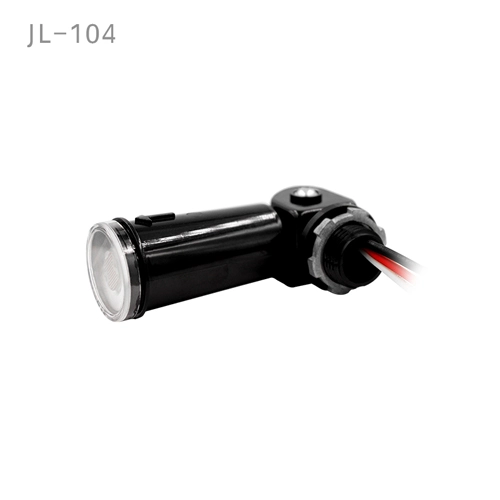

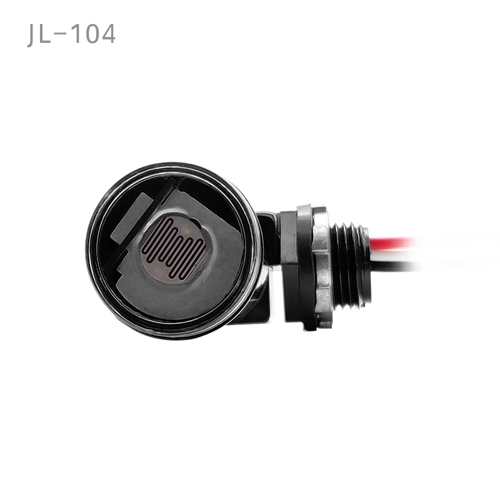

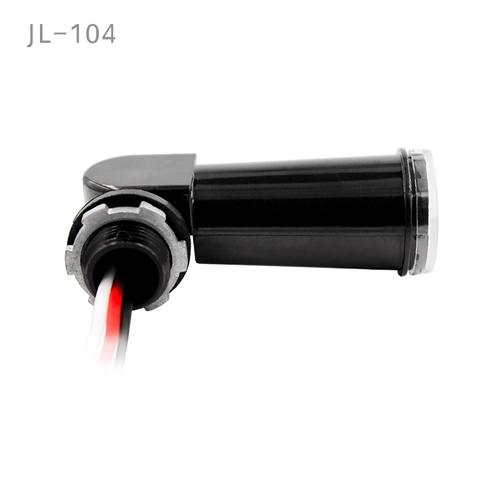

Name: JL-104 Swivel Mount Pencil Type Photocontrol
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-104 Swivel Mount Pencil Type Photocontrol Overview:

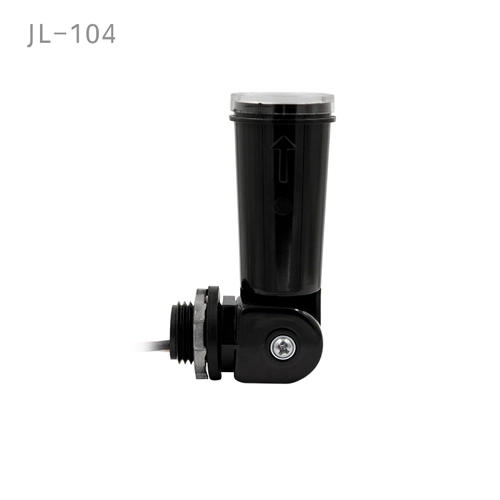

The JL-104 photocontrol is designed for the automatic management of lighting in corridors and entryways, adjusting to the surrounding light intensity. It incorporates an electrical heating mechanism that introduces a delay of over 30 seconds to prevent unnecessary activation due to brief light sources like vehicle headlights or lightning at night. Additionally, a temperature compensation system ensures stable operation across varying environmental temperatures. The JL-104 features an integrated swivel joint that allows for easy orientation of the sensor/switch assembly post-installation. This device meets the requirements of the UL773A standard for non-industrial photocontrols for lighting control and is also compliant with relevant Canadian standards.

JL-104 Swivel Mount Pencil Type Photocontrol Specifications

Model No.	JL-104A	JL-104B	JL-104C	JL-104D	JL-104EE
Rated Voltage	120VAC	220~240VAC	208~277VAC	277VAC	347VAC
Applicable Voltage Range	—		200~305VAC	—
Rated Frequency	50/60Hz
Rated Loading	1800W Tungsten, 1100VA Ballast				2000W Tungsten, 2000VA Ballast
Power Consumption	1.5W Max.
Operate Levels	10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Fail Mode	Fail-On
Lead Wire	AWG#16, AWM3321 4"min
Certifications
