Name: JL-240SXB Built-In 5-Pin NEMA Socket
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-240SXB Built-In 5-Pin NEMA Socket Overview:

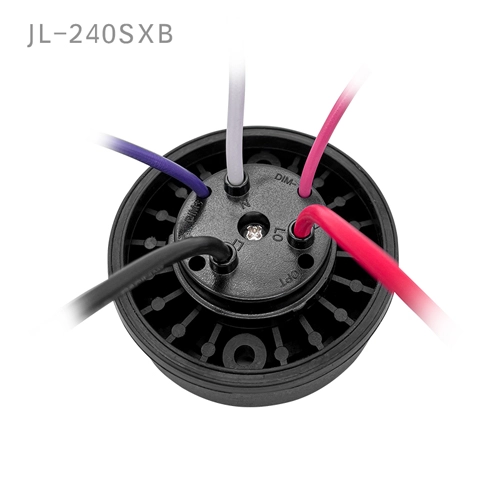

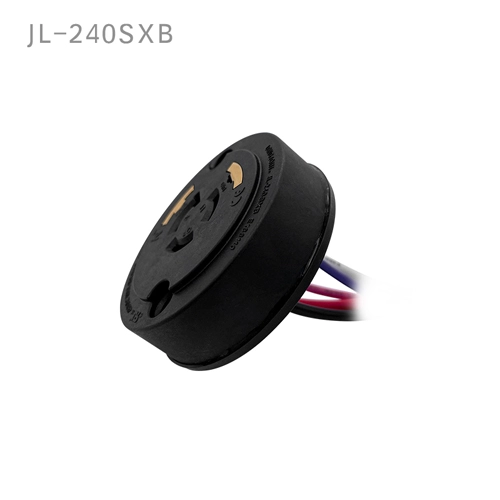

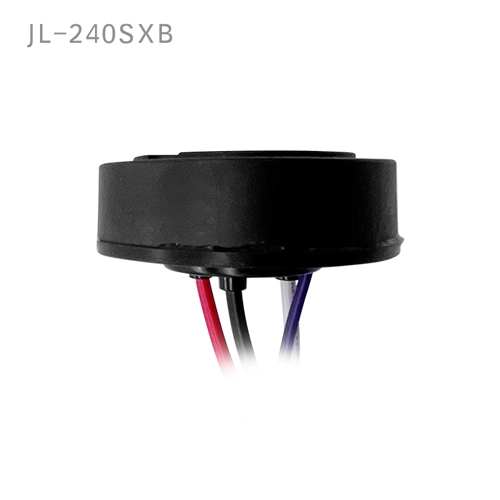

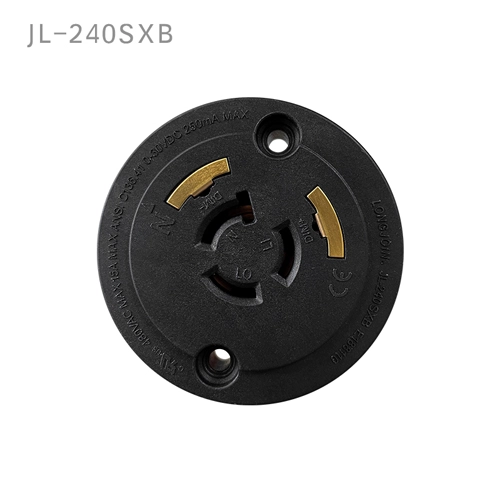

The JL-240SXB twist-lock photocell socket is designed for outdoor lighting fixtures to facilitate control of LED luminaires with twist-lock photocells. This ultra-thin socket features two gold-plated, arc-shaped contact tabs on its top surface, compatible with the spring contacts of twist-lock photocells (ANSI C136.41), and is equipped with two signal wires at the rear. Engineered to accommodate situations with limited internal space, the JL-240SXB does not encroach on any internal lighting fixture space. It meets the insert and twist-lock photocell standards as outlined in ANSI C136.10, ANSI C136.41, and ANSI/UL773 for area lighting applications.

JL-240SXB Built-In 5-Pin NEMA Socket Specifications

Model No.	JL-240SXB
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Load Rating	15A
Signal Control	0-30 VDC, 250 mA Max
Lead	16AWG, 14AWG 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Outdoor Wiring Cable	●
