Name: JL-245CZ NEMA Interface 0-10V
Brand: Shanghai Long-Join Intelligent Technology Inc.

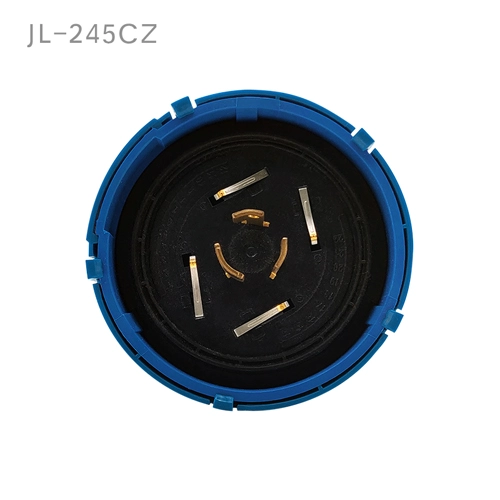

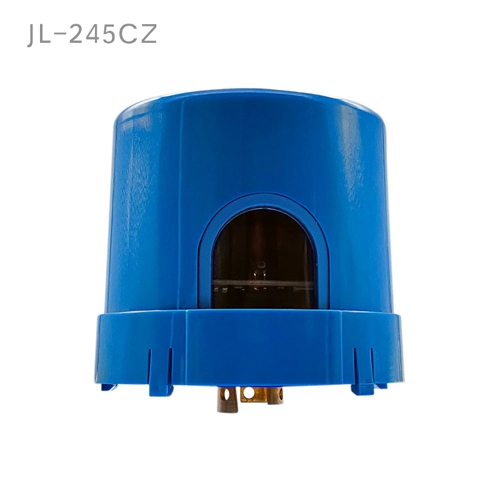

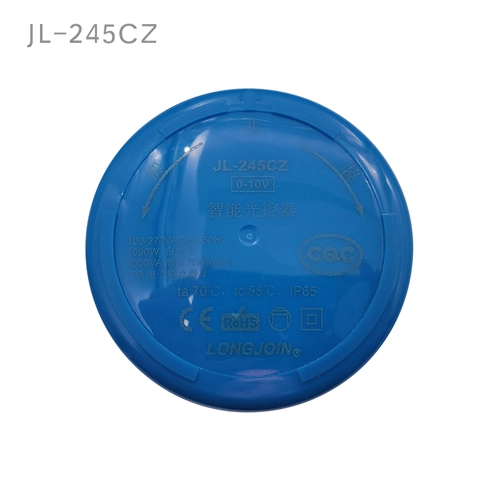

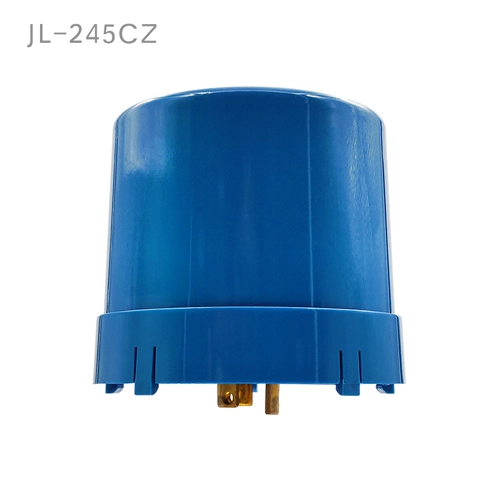

JL-245CZ NEMA Interface 0-10V Overview:

The JL-245CZ photocontrol is adaptable for both independent and system-based control applications across various settings like highways, conventions, academic institutions, retail complexes, grocery stores, industrial facilities, and public gardens. It is furnished with a Zigbee communication module, enabling it to be remotely accessed and managed through a smart IoT network management system.

JL-245CZ NEMA Interface 0-10V Specifications

Model No.	JL-245CZ
Rated Voltage	120~277VAC
Applicable Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Dimming Output	0~10VDC
Wireless Communication（up）	Zigbee
Wireless Communicatio（down）	Zigbee
Spectral Acquisition Range	350~1100nm；Peak wavelength 590nm
Rated Loading	1000W Tungsten,1000VA Ballast,8A@120VAC/5A@208-277VAC e-Ballast
Operate Levels	Turn-On＜100Lx，Turn-Off＞150Lx / per client request
Power Consumption	1.2W static，2.4W dynamic
Ambient Temperature	-40℃~70℃
Related Humidity	96%
Fail Mode	Fail-On
Shell material	PC
High protection	Double Shell
Surge protection level	6KV/3KA differential mode
IP level	IP67
Factory Settings	Remote control+Adaptive mode
Certifications
Criterion	IEC61000-4-5; IEC61000-4-2; IEC61000-4-3; IEC61000-4-6; GB/T 17743-2017; IEC61000-4-4; IEC61000-4-11; IEC61000-3-2; GB/T2423.10-2008; UL94-V0;

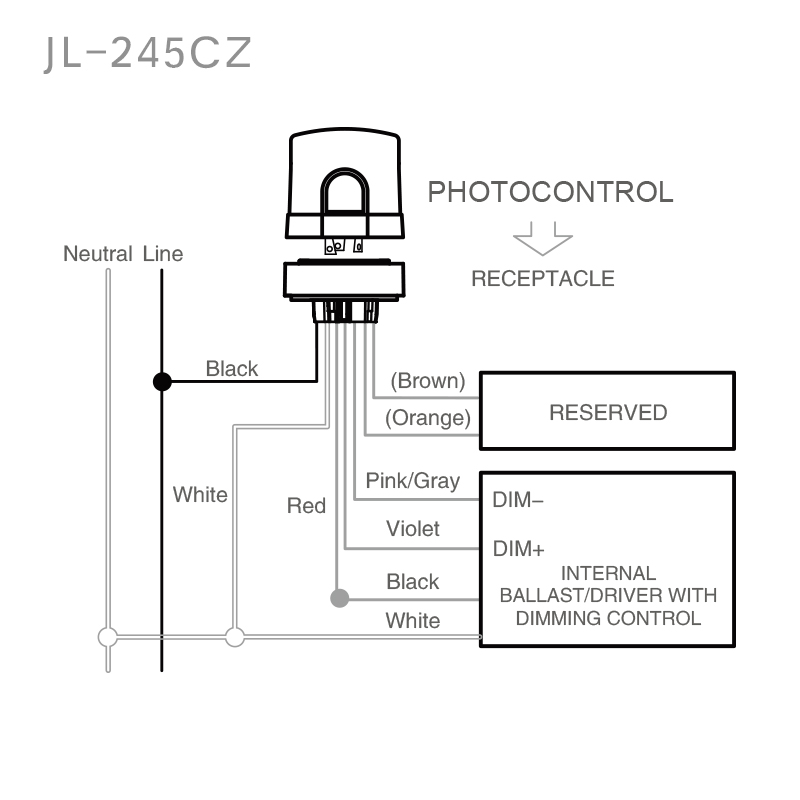

JL-245CZ NEMA Interface 0-10V Installation

The interface of the product itself has been mistake-proof designed, just tighten the photocontrol directly to the rotatable/fixed base, as shown in Figure clockwise after insertion.
