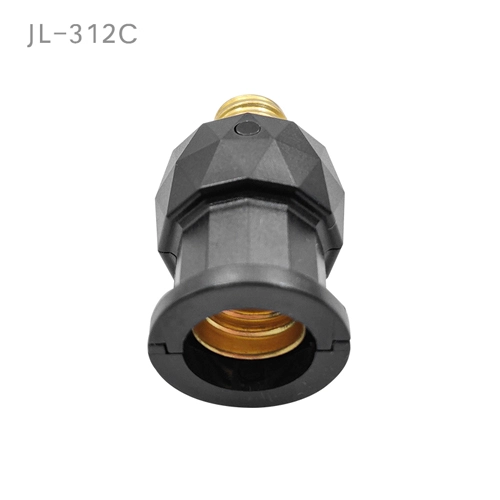

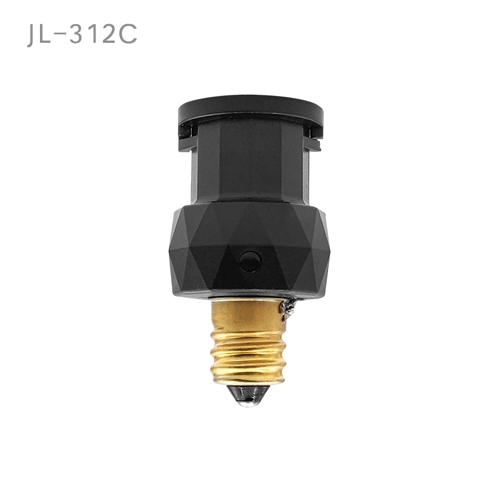

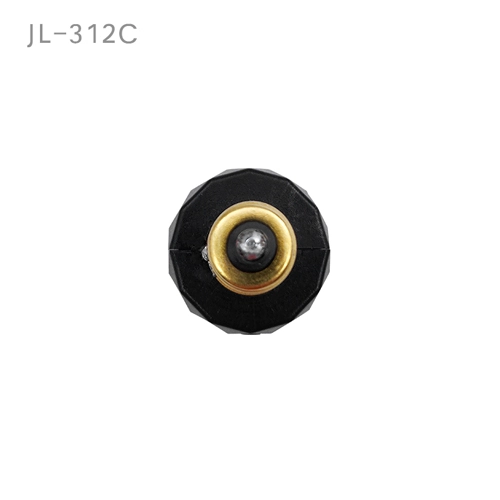

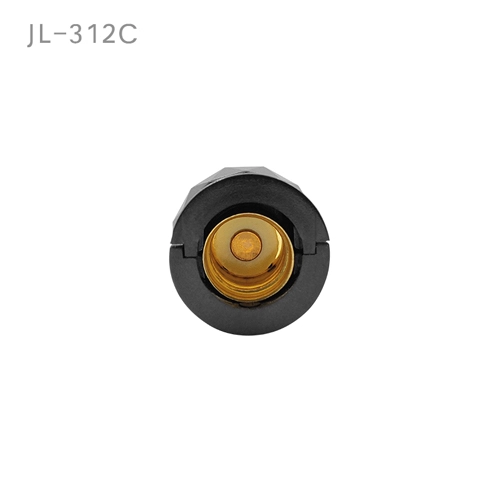

Name: JL-312C E12 Candlestick Bulb Socket Type
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-312C E12 Candlestick Bulb Socket Type Overview:

The JL-312C is an intelligent light controller created using the E26 adapter standard. Equipped with a light sensor, it monitors the surrounding light intensity to toggle the bulb on or off automatically. This controller is compatible with use alongside CFL and LED bulbs.

JL-312C E12 Candlestick Bulb Socket Type Specifications

Model No.	JL-312C
Rated Voltage	120VAC
Applicable Voltage Range	102~132VAC
Rated Frequency	50/60Hz
Rated Loading	60W Tungsten 0.5A e-Ballast
Power Consumption	0.2W Max.
Turn On Level	16Lx（±15）Natural light
Turn Off Level	64Lx（±15）Natural light
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Adapter	E12
Failure Mode	Fail-Off
Zero Crossing Control	Built-in
Certifications

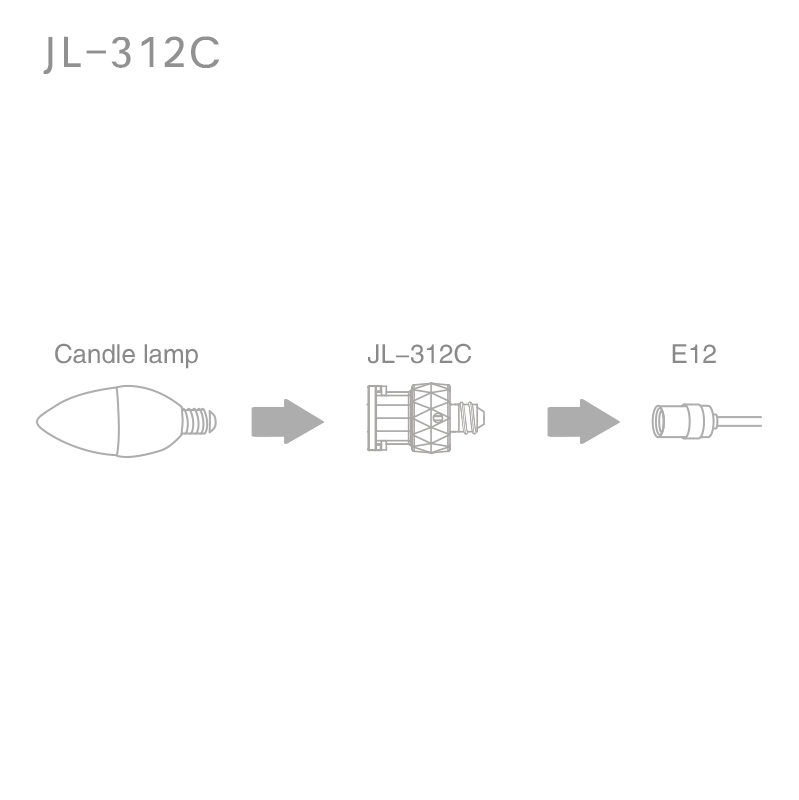

JL-312C E12 Candlestick Bulb Socket Type Installation

Disconnect power.
Screw bulb off from E12 socket.
Put the light control unit into the E12 socket, and then turn clockwise to tighten.
Screw bulb into the bulb holder of the unit.
Connect power; Turn lamp switch ON.
Avoid to use the unit in an opaque or reflective glass lantern, as well as use in a wet place.

JL-312C E12 Candlestick Bulb Socket Type Installation
