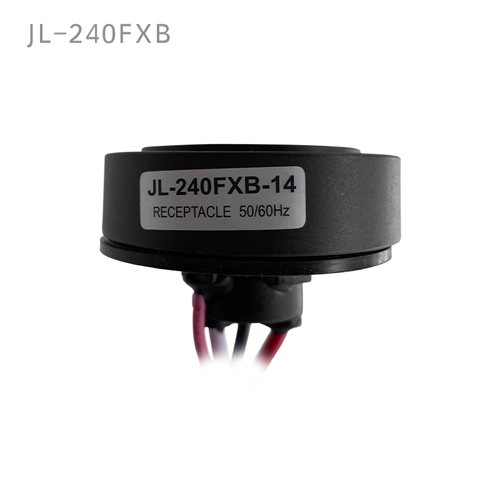

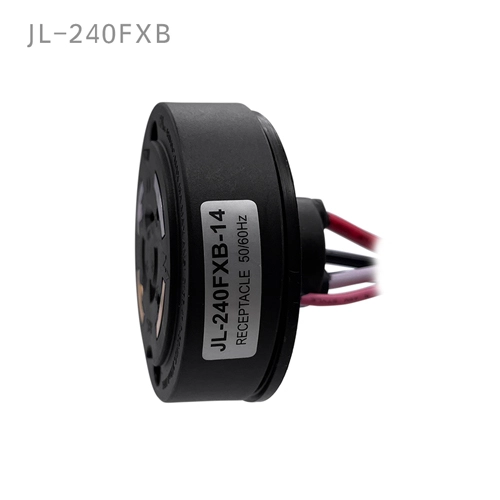

Name: JL-240FXB Built-In 5-Pin NEMA Socket
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-240FXB Built-In 5-Pin NEMA Socket Overview:

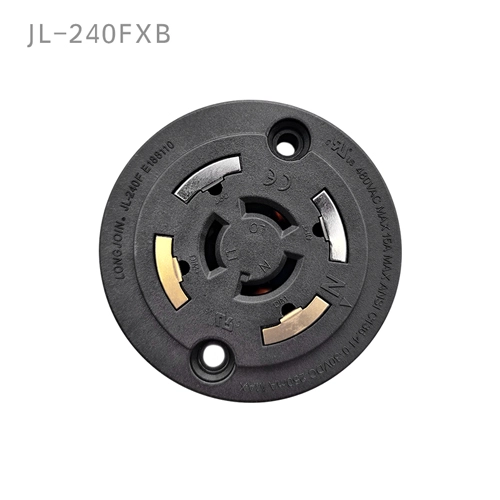

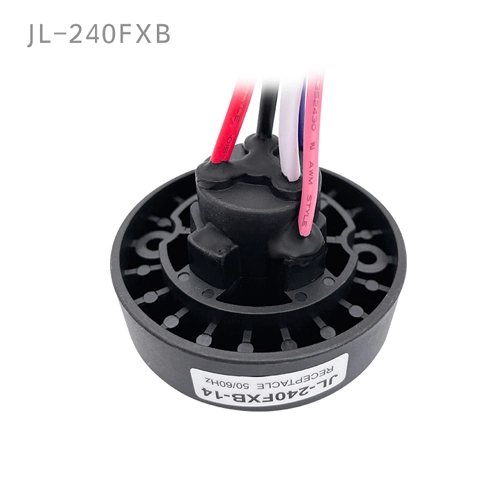

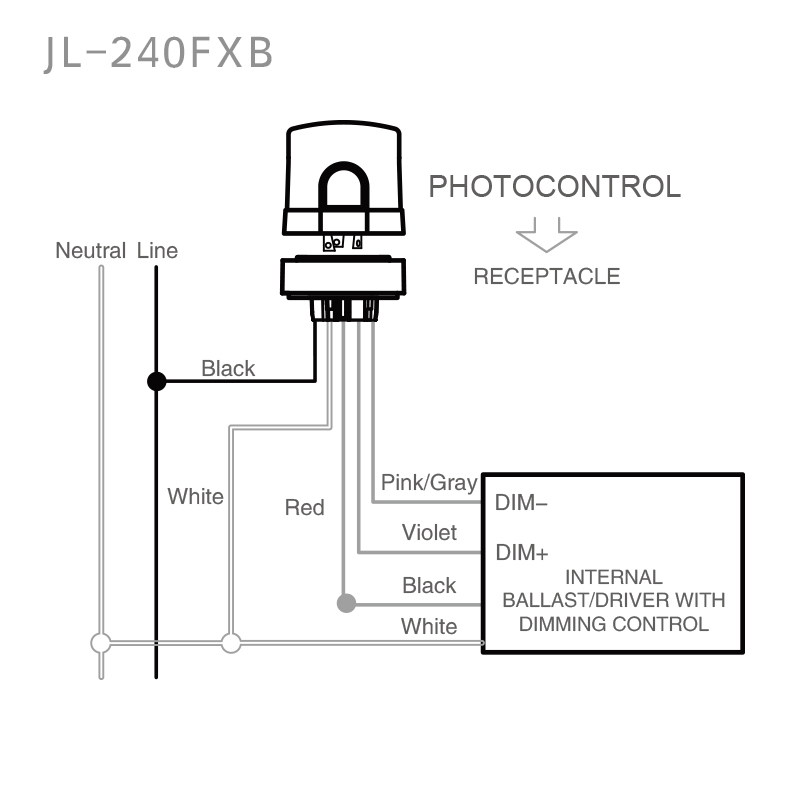

The JL-240FXB twist-lock photocell socket, boasts high waterproofing capabilities and is designed for outdoor lighting fixtures to manage LED lighting with twist-lock photocells. This model features two gold-plated contact tabs on its top surface, designed to mate with the spring contacts of twist-lock photocells (ANSI C136.41), and comes with two signal wires at the rear. Additionally, it incorporates a screw-hole O-ring made of silicone and a silicone-sealed socket body for enhanced waterproofing. The JL-240FXB series meets the standards for insert and twist-lock photocells as specified by ANSI C136.10, ANSI C136.41, and ANSI/UL773 for area lighting applications.

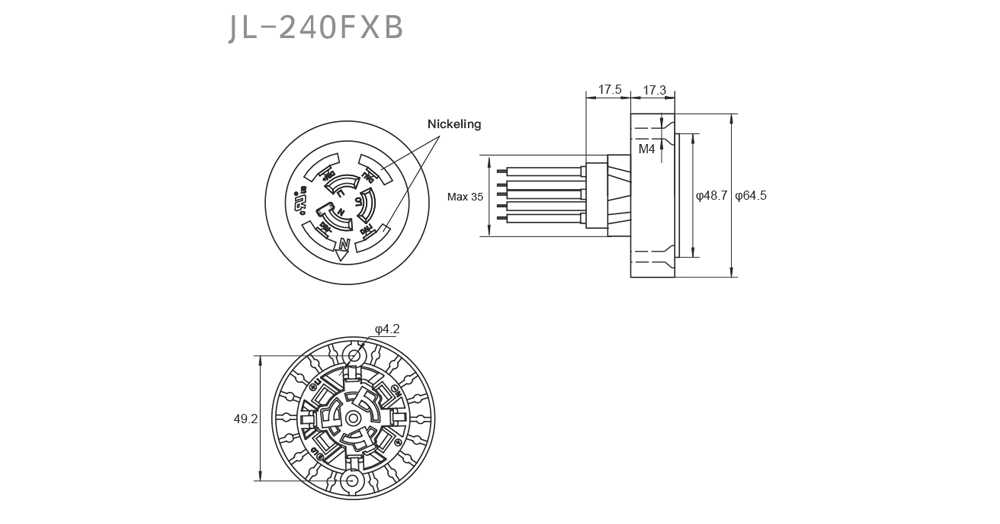

JL-240FXB Built-In 5-Pin NEMA Socket Specifications

Model No.	JL-240F
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Power Loading	15A
Signal Control	0-30 VDC, 250 mA Max
Lead	16AWG, 14AWG 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Outdoor Wiring Cable	●
Certifications	ANSI C136.41-2013
