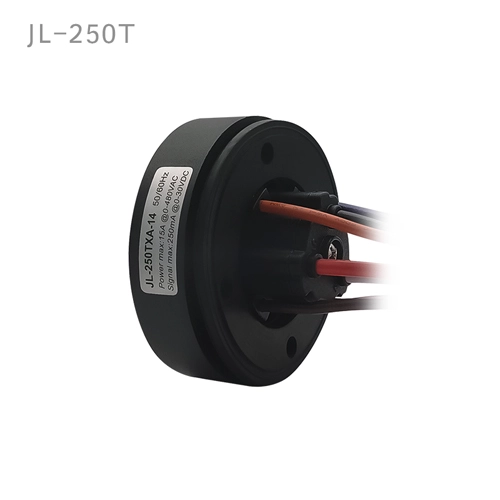

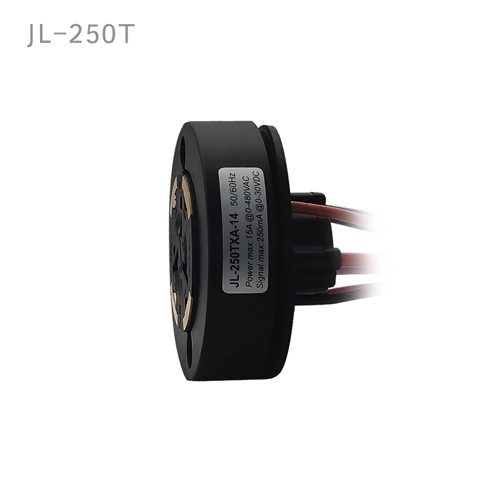

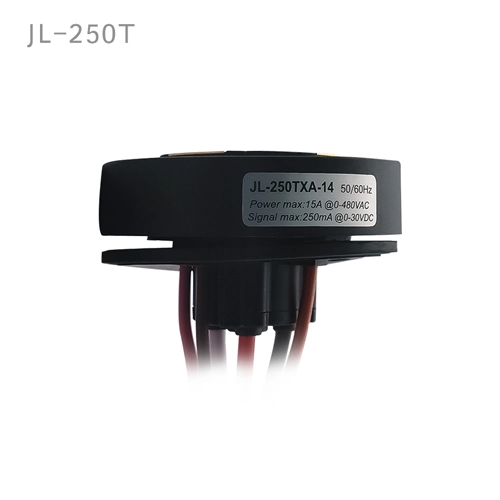

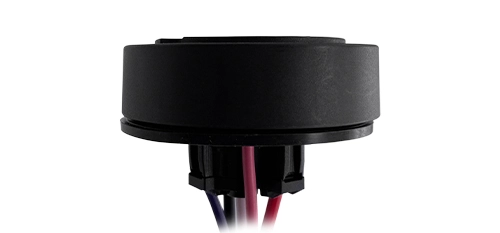

JL-250TXA Built-In 7-Pin NEMA Socket

Photocontrol Dimming Receptacle, Rotate 360 Degrees

JL-250TXA Built-In 7-Pin NEMA Socket Features:

Body made from polybutylene terephthalate
Contacts made from phosphor bronze
Gold pad made from Nickel plated phosphor bronze with gold plating per ASTM B 522
Silicone gasket offered
Rotatable by central slot adjusting with screwdriver
The screw can be loosened to find the north, making it convenient for the installation of the light controller (default north direction during installation), avoiding the decline of the light sensitive components of the light controller and extending its service life

JL-250TXA Built-In 7-Pin NEMA Socket Overview:

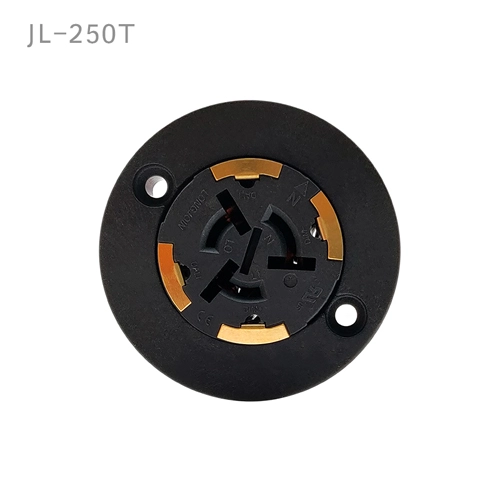

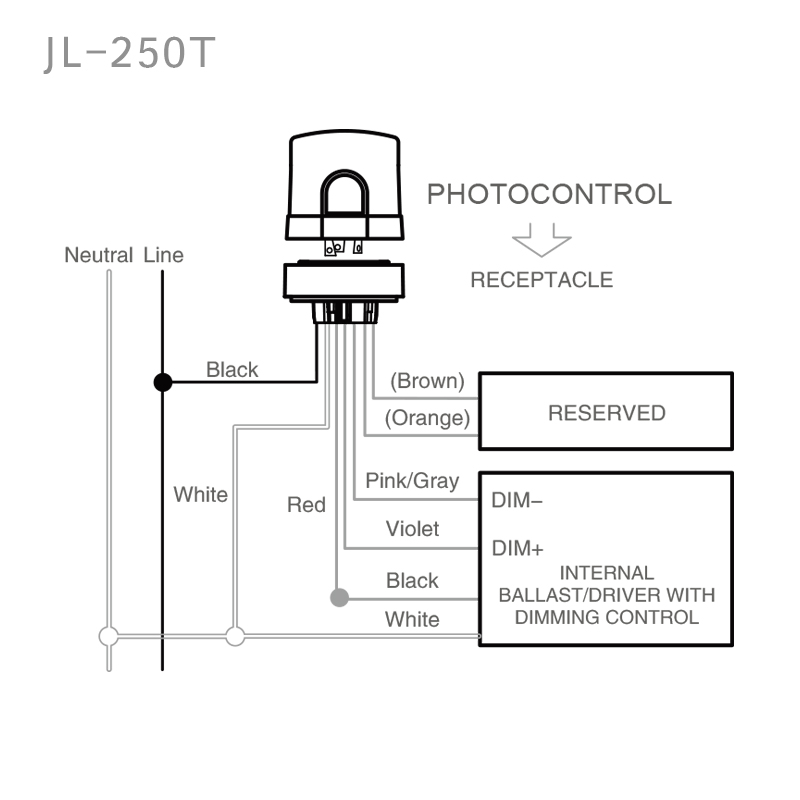

The JL-250TXA twist-lock photocell socket is crafted for outdoor lighting fixtures, facilitating control of LED luminaires with twist-lock photocells. This model features four gold-plated, arc-shaped contact tabs on its top surface, which are compatible with the spring contacts of twist-lock photocells (ANSI C136.41), and includes four signal wires at the rear. Notably, it offers a directional orientation feature that can be adjusted by rotating the central slot with a screwdriver. The JL-250TXA adheres to the standards for insert and twist-lock photocells as set forth by ANSI C136.10, ANSI C136.41, and ANSI/UL773 for area lighting applications.

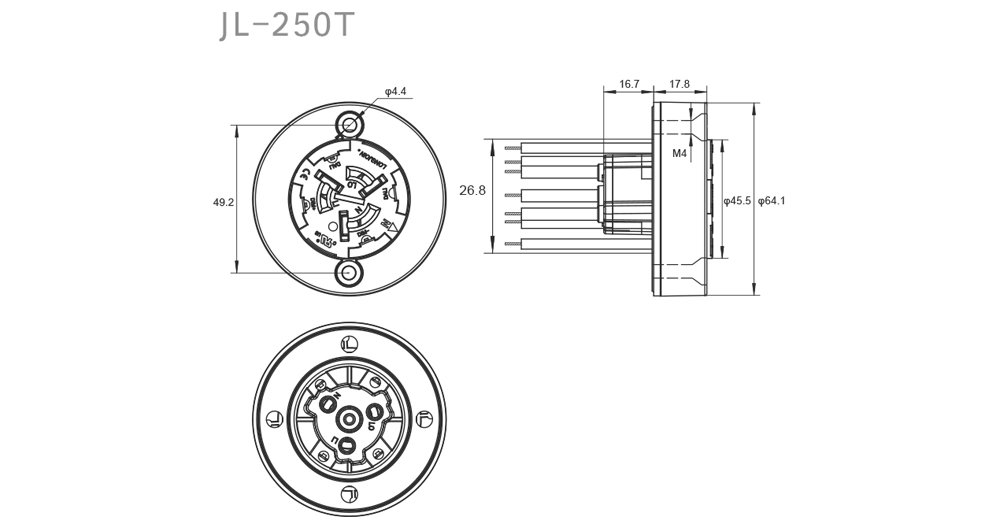

JL-250TXA Built-In 7-Pin NEMA Socket Specifications

Model No.	JL-250T
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Load Rating	15A
Signal Control	0-30 VDC, 250 mA Max
Lead	16AWG/14AWG 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Certifications	ANSI C136.41-2013
