Name: JL-711A1 0-10V Dimming
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-711A1 0-10V Dimming Overview:

The JL-711A series of light controller offerings comprises smart light controllers with a rotary lock design, conforms to the ZHAGA BOOK18 interface criteria, and is capable of providing 0~10V dimming signals. Each model in the series is equipped with an internal photosensitive sensor. These controllers are appropriate for lighting applications in settings like roadways, grass fields, patios, and recreational areas.

JL-711A1 0-10V Dimming Specifications

Model	JL-711A1	JL-711A2
Power Supply	Rated voltage：12~24VDC Rated current：10mA
Power Consumption	12V/5mA；24V/6mA
Sensor Type	Photosensitive tube
Spectral Acquisition Range	350~1100nm, Peak wavelength 550nm
Dimming interface	Type：0~10V Accuracy：±2% Drive current：20mA（Typical）
Turn on Illuminance	50Lux（±10）
Turn off Illuminance	Reflected light + 40Lux（±10）after each turn on Lower limit：50+40Lux（±10） Upper limit：6000Lux（±100）
Reflected light compensation upper limit	6000Lux（±100）
Initialization	After power on, the light is turned on by default and maintains 5S, then automatically turns off the light and enters the auto-sensing operation mode *1
Turn on delay	5s
Turn off delay	20s
0%~100%；100%~0% Brightness change time	8s
Midnight Dimming	NC	Trigger: the average center point of the first ten days (The first day default call night base is 10 hours) Dimming Ratio:50% Duration Ratio:40% Less than 10 days is calculated based on the actual number of days
Energy saving strategy	NC	Factory Preset
Mechanical Vibration	IEC60068-2-6
Flammability Level	UL94-V0
Operating Temperature	-40℃~70℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%RH~99%RH
IP Level	IP66
Certifications

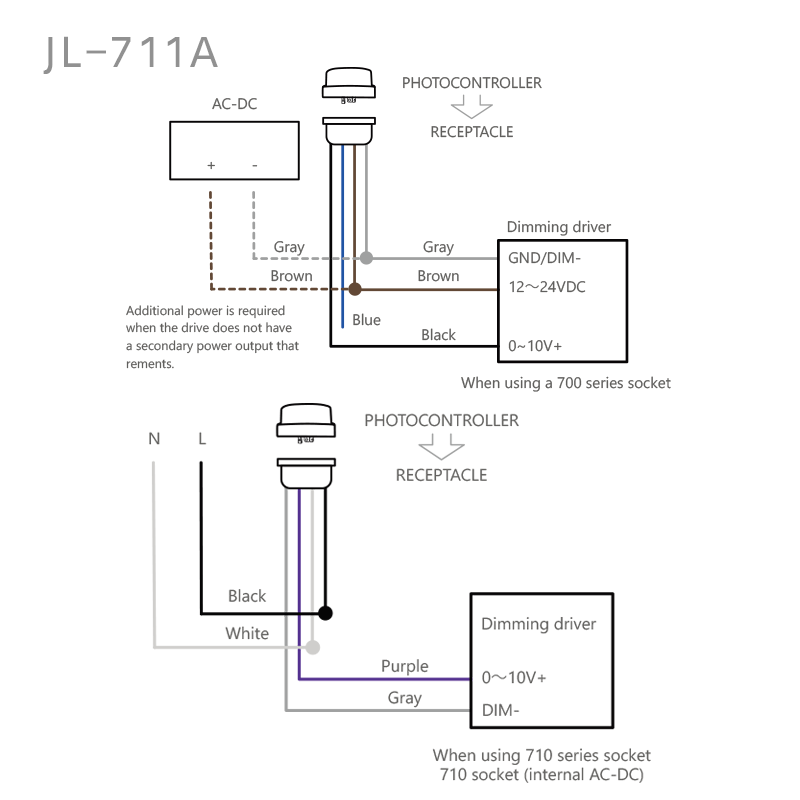

JL-711A1 0-10V Dimming Installation

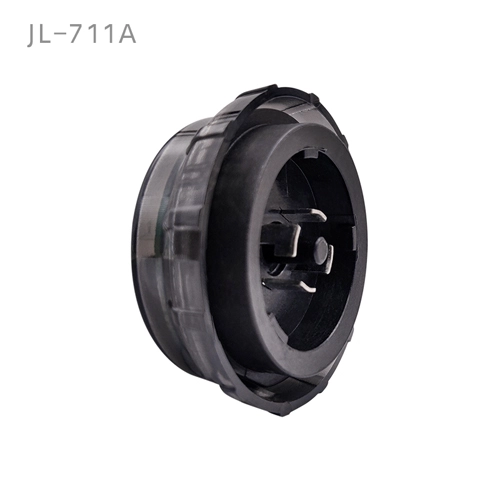

The interface of the product itself has been fool-proof design, the installation only need to tighten the controller directly to the rotatable base, as shown in Figure clockwise after insertion.

JL-711A1 0-10V Dimming Installation
