Name: JL-406C (V) Conduit Wire-In Electronic Photocontrol
Brand: Shanghai Long-Join Intelligent Technology Inc.

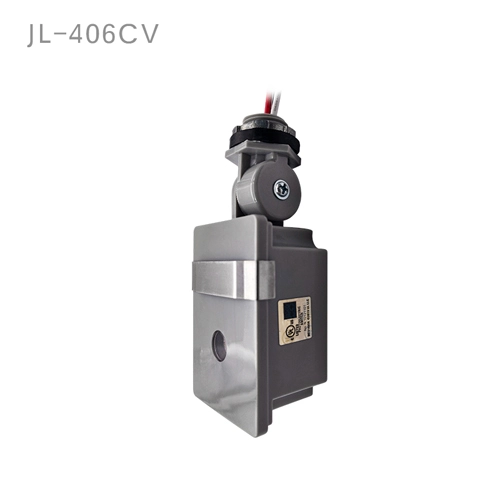

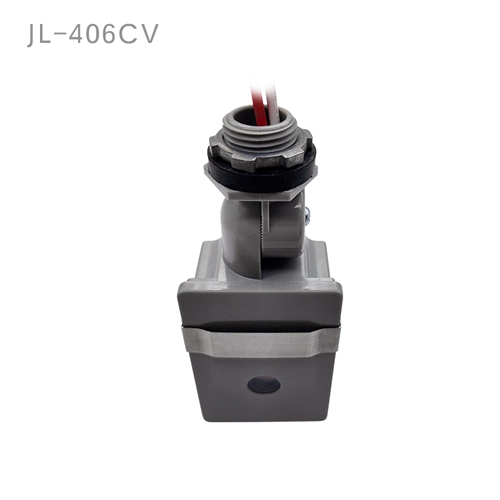

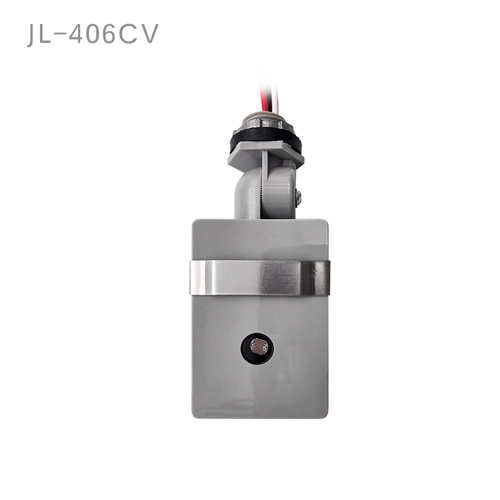

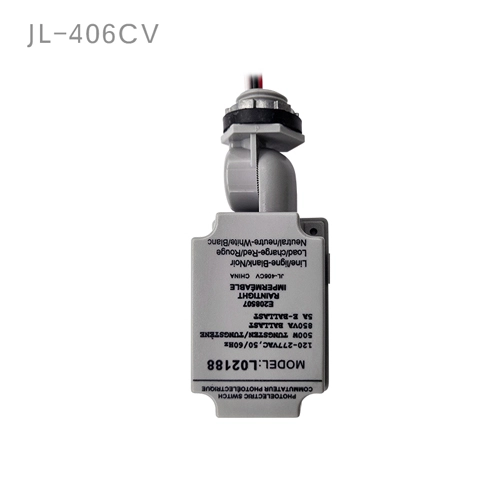

JL-406C (V) Conduit Wire-In Electronic Photocontrol Overview:

The JL-406C photocontrol is suitable for automatically regulating street, corridor, and entrance lighting based on the outdoor light levels. Equipped with electronic circuitry, it boasts a swift response enhanced by a 3-10 second time delay for convenient testing. In particular, the JL-406CV model includes a swivel for precise alignment and a shielding bar is provided across all models, enabling users to calibrate the on/off settings. Moreover, the built-in 3-10 second time delay helps prevent false triggering by vehicle headlights or nighttime lightning. This product has been certified by UL LLC and meets the criteria set forth in the UL773A standard for non-industrial photoelectric switches used in lighting control.

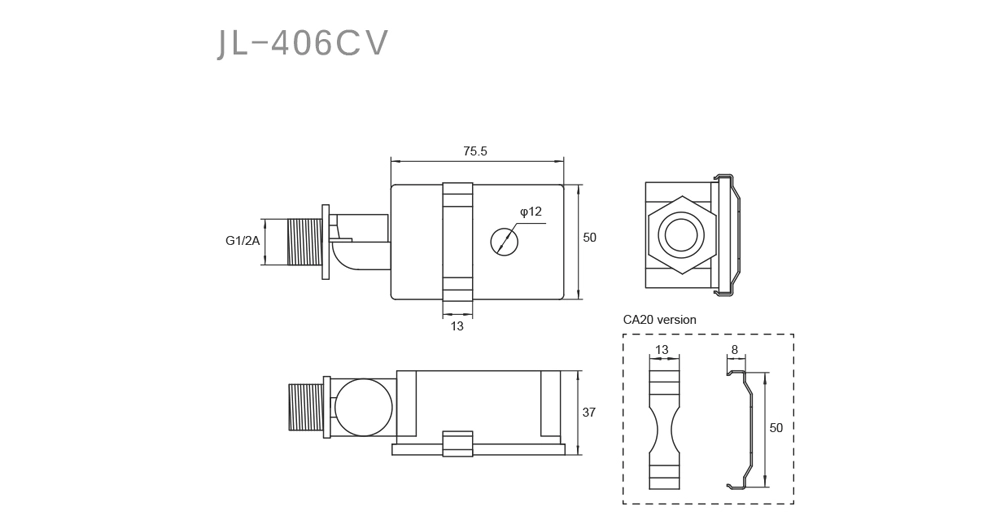

JL-406C (V) Conduit Wire-In Electronic Photocontrol Specifications

Model No.	JL-406C	JL-406CV
Rated Voltage	120~277VAC
Available Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Rated Loading	500W Tungsten, 850VA Ballast 5A e-Ballast
Power Consumption	1.8W@120VAC
Operate Levels	10~20Lx Turn-On / 30~80Lx Turn-Off
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Leads	AWG #18, 105℃ 4" min
Wire Color Coding	US
Failure Mode	Fail-Off
Certifications

JL-406C (V) Conduit Wire-In Electronic Photocontrol Installation

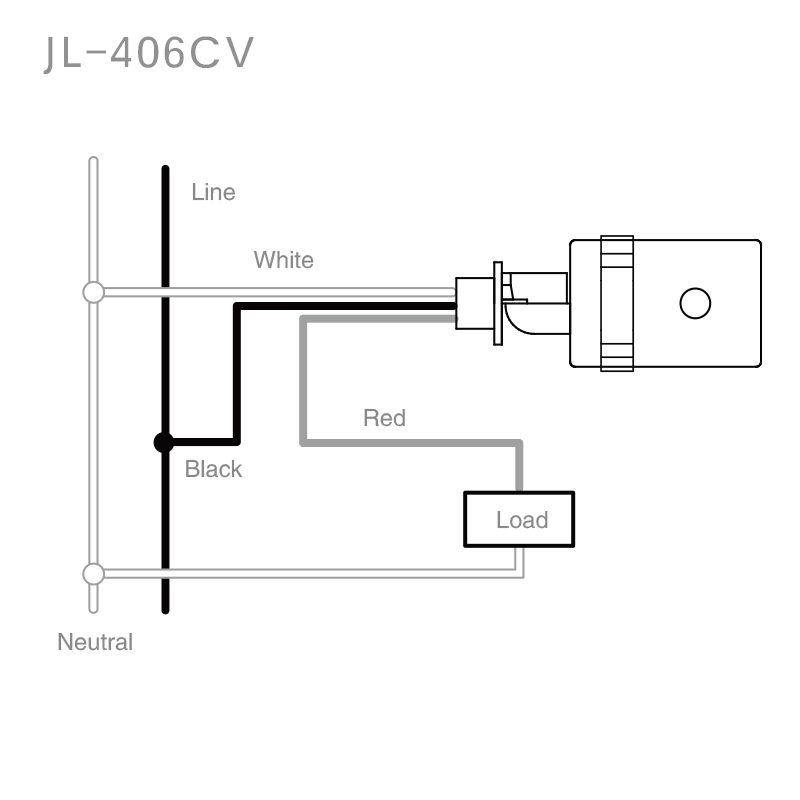

Disconnect power, remove junction box cover, place the photocontrol through knockout hole and fasten with locknut. Wire according to the diagram in below.

Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

JL-406C (V) Conduit Wire-In Electronic Photocontrol Installation
