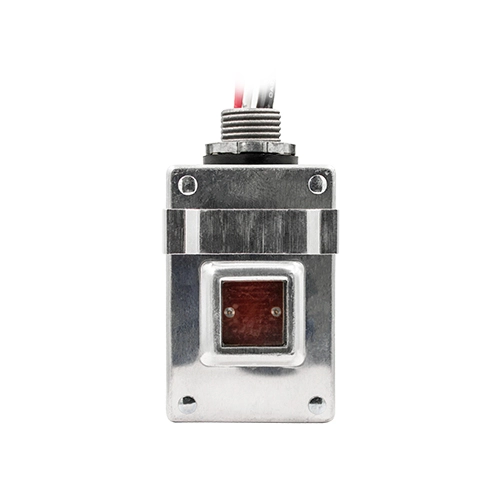

Name: JL-126 Outdoor Thermal Photocontrol
Brand: Shanghai Long-Join Intelligent Technology Inc.

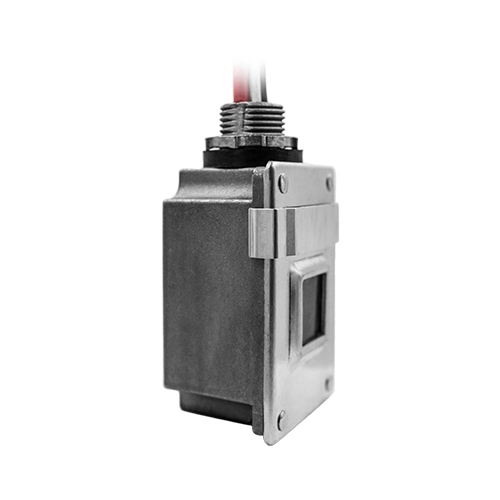

JL-126 Outdoor Thermal Photocontrol Overview：

The JL-126 photocontrol unit is designed to autonomously manage lighting in corridors and entrance areas based on the surrounding light levels. Utilizing an electrical heating element, it incorporates a delay of more than 30 seconds to prevent unnecessary activation by headlights or nighttime lightning. A temperature compensation system ensures stable operation across a range of temperatures. The unit is equipped with an optional swivel adapter, making it easy to adjust the direction post-installation.

JL-126 Outdoor Thermal Photocontrol Specifications

Model No.	JL-126A	JL-126B	JL-126D
Rated Voltage	120VAC	220~240VAC	277VAC
Rated Frequency	50/60Hz
Rated Loading	3000W Tungsten, 2000VA Ballast		3000W Tungsten,3000VA Ballast
Power Consumption	1.5W Max.
Operate Levels	10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Fail Mode	Fail-On

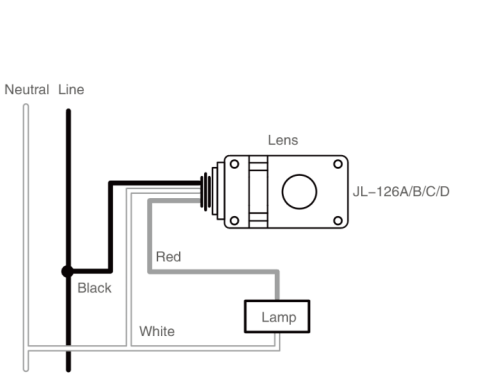

Lead Wire	N：AWG#18 AWM1015; Li/L0：AWG#10 AWM1015 6" min
Certifications
