Name: JL-712A3 0-10V Dimming ZHAGA BOOK18 Interface Standard Development Of Intelligent Lock Type
Brand: Shanghai Long-Join Intelligent Technology Inc.

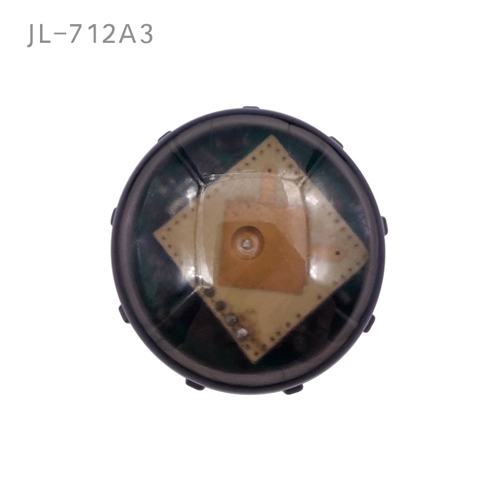

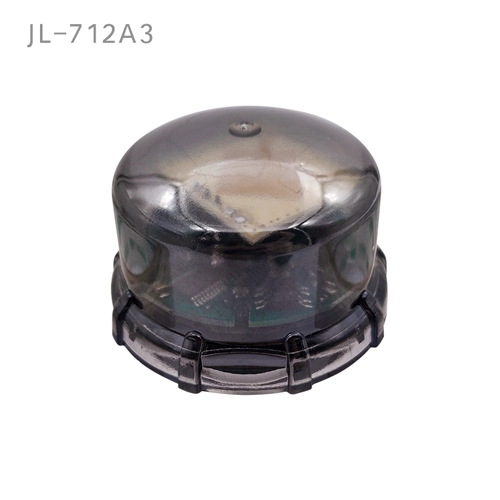

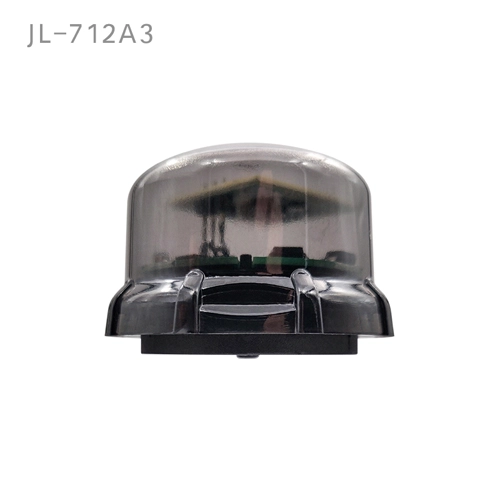

JL-712A3 0-10V Dimming ZHAGA BOOK18 Interface Standard Development Of Intelligent Lock Type Overview

The JL-712A3 series of light controllers are smart light controllers with a twist-lock design, created in line with the ZHAGA BOOK18 interface standard. They incorporate a hybrid sensor system that combines light sensing with microwave motion detection, capable of producing a 0~10V dimming signal. These controllers are well-suited for a variety of lighting environments, including streets, grassy areas, courtyards, parks, parking lots, and construction sites.

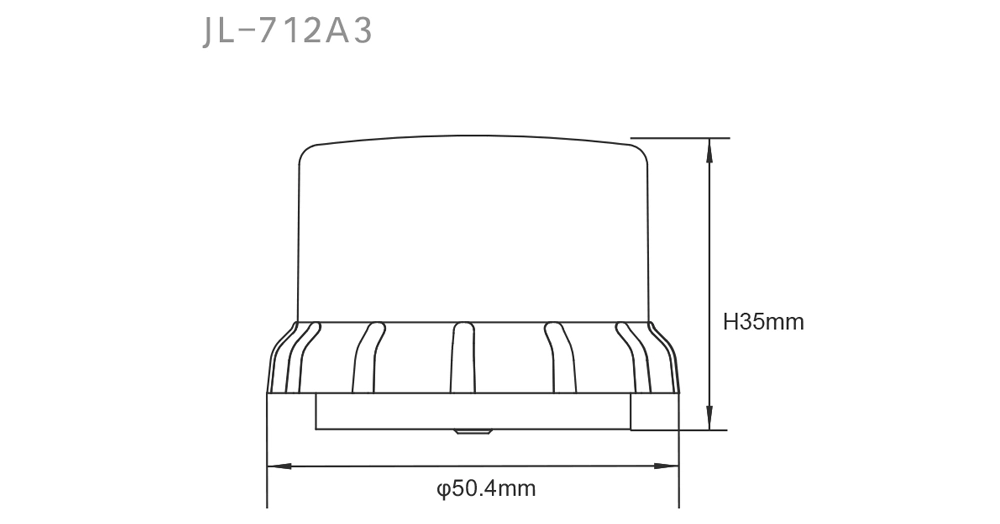

JL-712A3 0-10V Dimming ZHAGA BOOK18 Interface Standard Development Of Intelligent Lock Type Specifications

Model	JL-712A3
Power Supply	Rated voltage: 12~24VDC Rated current: 12V/45mA; 24V/30mA
Power Consumption	12V/3.5mA, 24V/3.5mA
Dimming	0/10V
Spectral Acquisition Range	350~1100nm, Peak wavelength 550nm
Dimming interface	Type: 0~10V; Accuracy: ±2%; Drive current: 40mA(Typical)
Turn on Illuminance	50Lux(±10)
Turn off Illuminance	Reflected light + 40Lux(±10) after each turn on Lower limit: 50+40Lux(±10); Upper limit：6000Lux(±100)
Reflected light compensation upper limit	6000Lux(±100)
Initialization	After power on, the light is turned on by default and maintains 5S, then automatically turns off the light and enters the auto-sensing operation mode*1
Turn on delay	5S
Turn off delay	60S
0%~20%；20%~100% Brightness change time	1S
100%~20%；X%~0% Brightness change time	8S
100% brightness hold time after microwave trigger	30s
Stand-by Dimming	20%
Maximum hanging height of microwave	15M
Sensing radius	4-8M (by 15m hanging height)
Microwave induction angle	92°
Microwave anti-false trigger	Can prevent wind, rain, leaves, and small animals
Mechanical Vibration	IEC60068-2-6
Flammability Level	UL94-V0
Operating Temperature	-40℃~70℃
Storage Temperature	-40℃~85℃
Operating Humidity	5%RH~99%RH
IP Level	IP66
Certifications

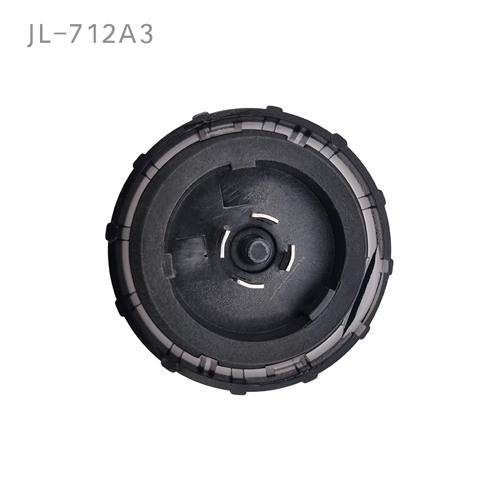

JL-712A3 0-10V Dimming ZHAGA BOOK18 Interface Standard Development Of Intelligent Lock Type Installation

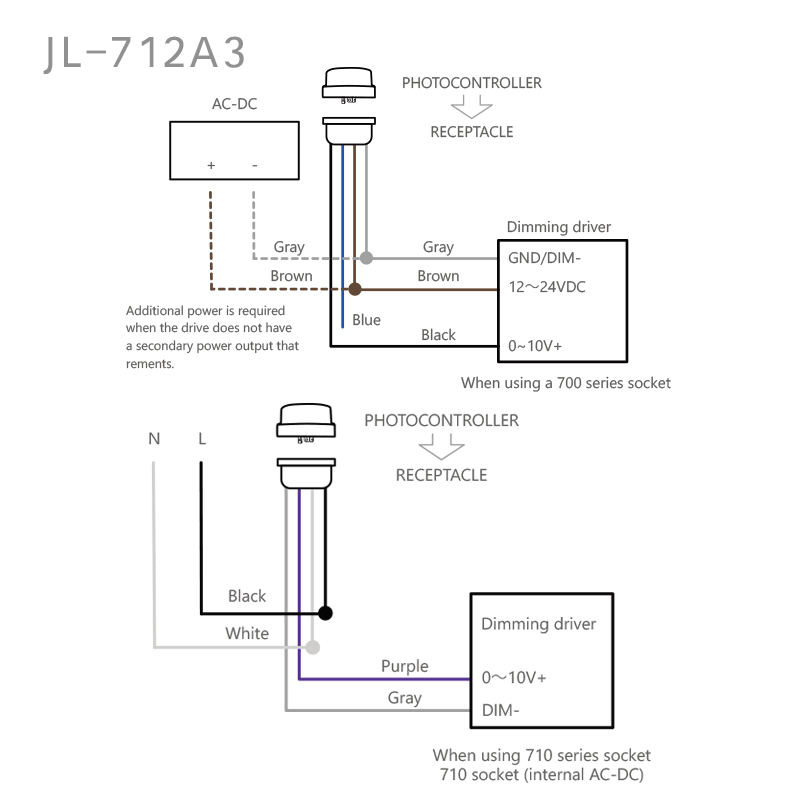

The interface of the product itself has been fool-proof design, the installation only need to tighten the controller directly to the rotatable base, as shown in Figure clockwise after insertion.

JL-712A3 0-10V Dimming ZHAGA BOOK18 Interface Standard Development Of Intelligent Lock Type Installation
