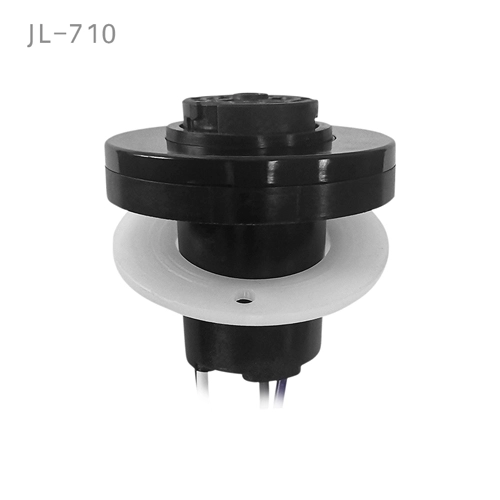

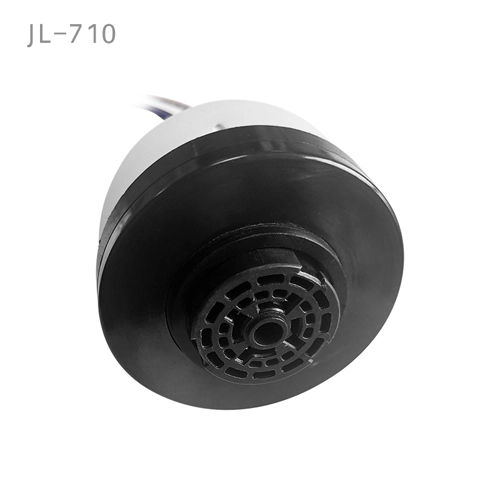

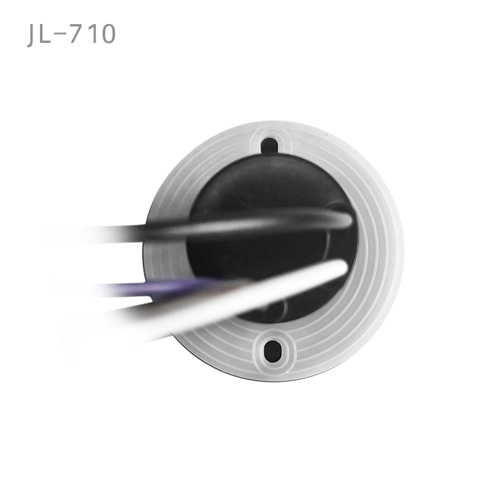

Name: JL-710 Power Version
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-710 Power Version Specifications

Input	Input voltage	*Rated：120-277VAC Limited：85~305VAC
	Input frequency range	*50/60Hz
	Maximum steady-state input AC current	30mA（full load，220VAC）
	Cold start surge current（I2t）	0.009A2s（full load，220VAC）
	Efficiency	80%（full load，220VAC）
Output	Output voltage	24VDC
	Accuracy	±2%
	Rated current	0.21A
	Rated power	5W
	Ripple	100mVp-p
	Nose	150mVp-p
	Linear adjustment rate	±0.12%
	Load adjustment rate	±5%
	Start-up time	＜340mS
	Start-up overshoot voltage	＜5%
	No load power consumption	＜0.12W
Protection	Output undervoltage protection	Hiccup mode, automatic recovery after abnormal removal
	Output overvoltage protection
	Output overcurrent protection
	Output short circuit protection
	Output open circuit protection
	Over temperature protection
Environment	Operating Temperature	-40℃~70℃
	Storage Temperature	-40℃~85℃
	Operating Humidity	5%RH~99%RH
	Storage Humidity	5%RH~99%RH
Others	Shell material	PBT
	IP level	IP66（When used with our light controller）
	Mechanical vibration	IEC60068-2-6
	Flammability Level	UL94-V0
	MTBF	≥80000h
	Weight	85g
Certification

* Real rated voltage range: 100~277VAC

* Real input frequency range: 47~63Hz

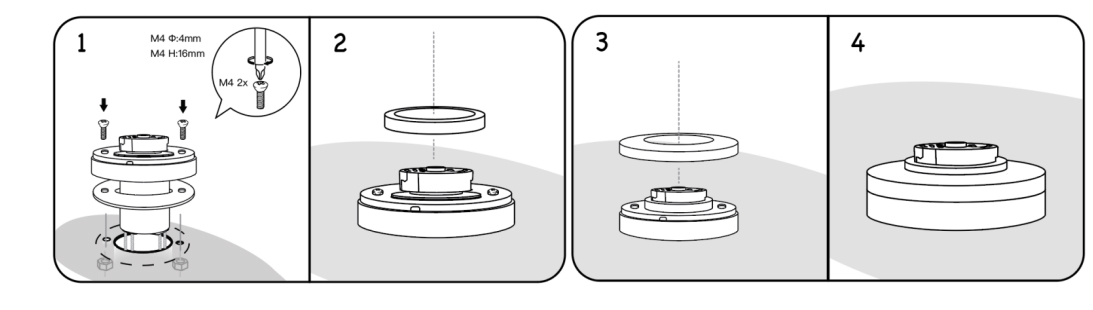

JL-710 Power Version Installation

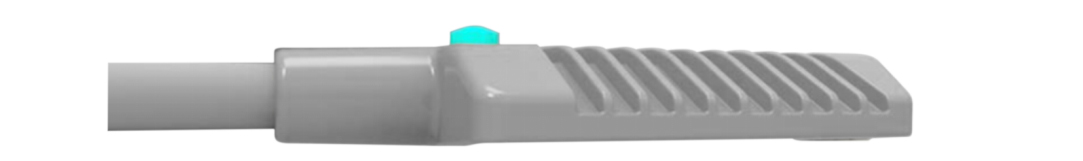

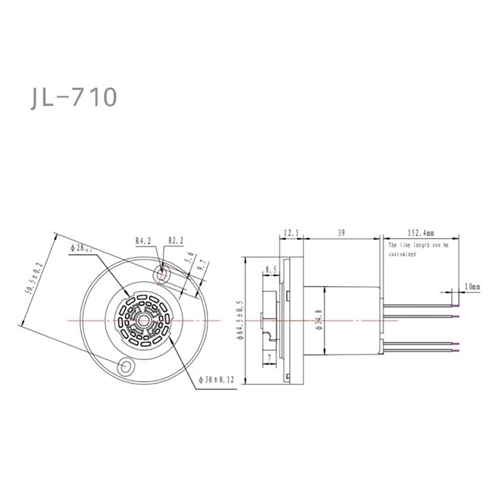

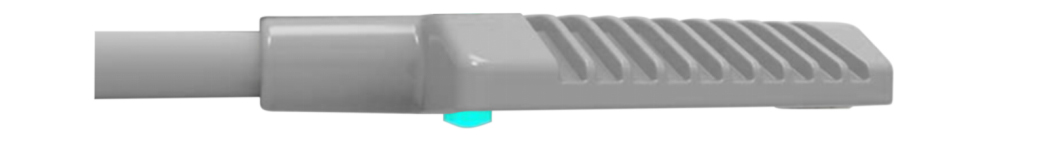

The opening size is completely equivalent to the standard NEMA socket, so the lamp can be opened according to the original NEMA socket drawing, and the lamp with the NEMA socket hole can also be directly installed on the JL-710 socket. JL-710 supports top/side/upside-down installation, and can achieve IP66 protection on any installation surface.

JL-710 Power Version Installation
