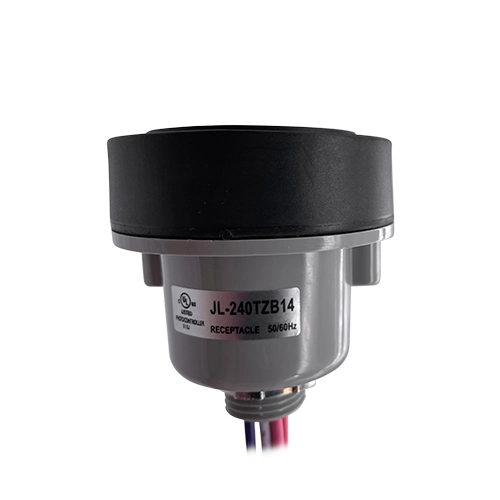

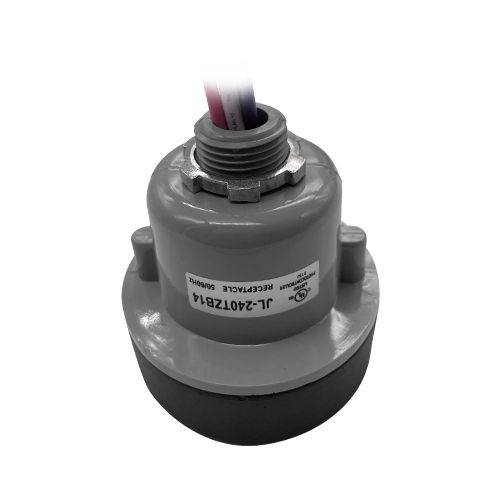

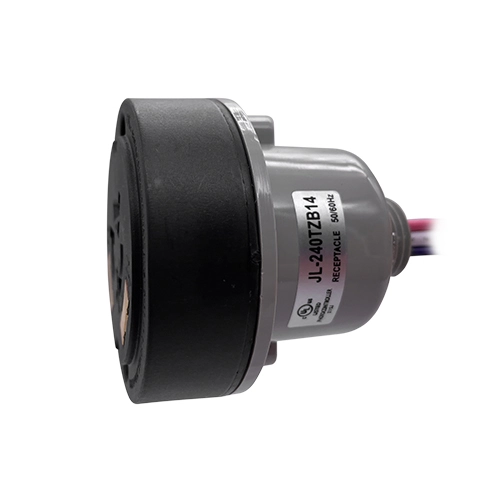

JL-240TZB External Mounting 5-Pin NEMA Socket

Name: JL-240TZB External Mounting 5-Pin NEMA Socket
Brand: Shanghai Long-Join Intelligent Technology Inc.

Photocontrol Dimming Receptacle, Rear Cover

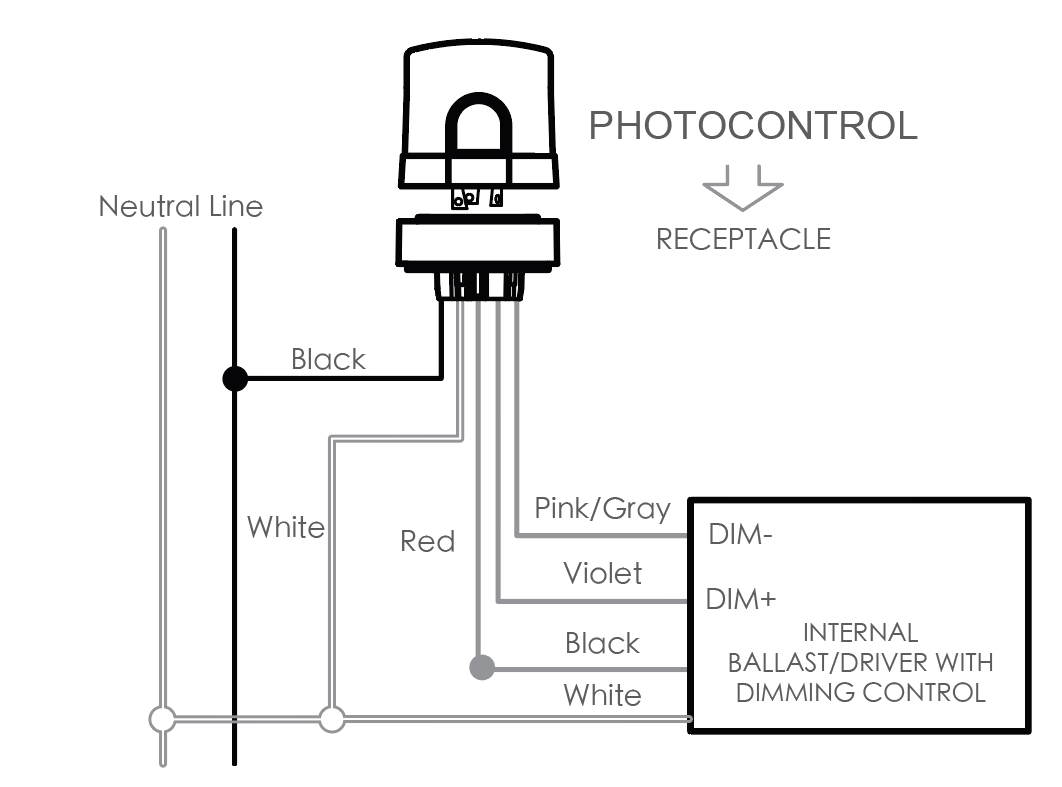

The JL-240TZB twist-lock photocell socket is designed for outdoor lighting fixtures to enable control of LED luminaires with twist-lock photocells. This product features two gold-plated contact tabs on its top surface, designed to interface with the spring contacts of twist-lock photocells (ANSI C136.41), and includes two signal wires at the back. It is equipped with an external bracket, back cover, and outdoor cable wiring for on-site projects. The JL-240TZB meets the standards for insert and twist-lock photocells as specified by ANSI C136.10, ANSI C136.41, and ANSI/UL773 for area lighting applications.

JL-240TZB External Mounting 5-Pin NEMA Socket Specifications

Model No.	JL-240TZ
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Load Rating	15A
Signal Control	0-30 VDC, 250 mA Max
Lead	16AWG/14AWG （Non-UL） 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Outdoor Wiring Cable	●
Certifications	ANSI C136.41-2013
