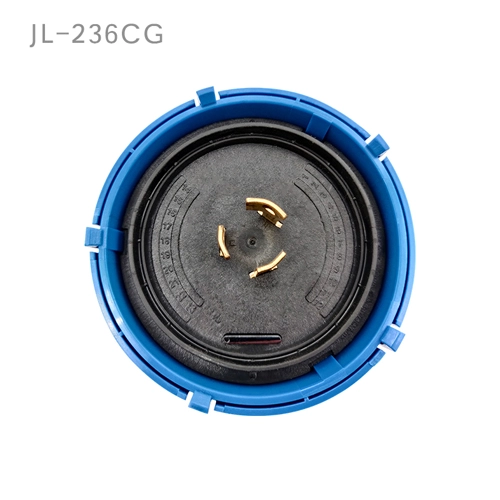

Name: JL-236CG NEMA Interface
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-236CG NEMA Interface Overview:

The JL-236CG photocontrol is suitable for automatically regulating street, garden, passage, and entrance lighting in response to the surrounding natural light levels, as well as being controllable through a remote system. It is equipped with a Zigbee communication module, which facilitates its integration with a intelligent IoT (Internet of Things) management system for remote control capabilities.

JL-236CG NEMA Interface Specifications

Model No.	JL-236CG
Rated Voltage	120~277VAC
Applicable Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Wireless Communication （up）	LTE-Cat1
Wireless Communication （down）	Zigbee
Spectral Acquisition Range	350~1100nm ; Peak wavelength：590nm
Rated Loading	1000W Tungsten, 1000VA Ballast 8A e-Ballast @120VAC/5A e-Ballast @208-277VAC
Power Consumption	2.4W Max.
Operate Levels	Turn-On＜100Lx，Turn-Off＞150Lx / per client request
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Fail Mode	Fail-On
Shell Material	PC+PC
Optional High Protection	Double Shell
Surge protection level	6KV/3KA
IP level	IP65 / IP67
Factory settings	Remote control+Adaptive mode
Certifications
