JL-721NP DALI2.0 Dimming ZHAGA BOOK18 Interface Standard Development Of Intelligent Lock Type

Light Controller, Using Light Sensing Sensor, Communication Mode NB-IoT, GPS To Automatically Locate

JL-721NP DALI2.0 Dimming ZHAGA BOOK18 Interface Standard Development Of Intelligent Lock Type Features:

DC power supply, low power consumption
ZHAGA BOOK18 interface standard
Support NB-IOT communication mode, multi-band B1/B3/B5/B8/B20, support most countries/regions in the world
Support GPS positioning
MQTT network protocol, data encryption
0.01~64000Lux ultra-wide ambient illumination collection range
When the wireless signal is abnormal, it will automatically switch to the local light sensing mode
DALI2.0 dimming interface

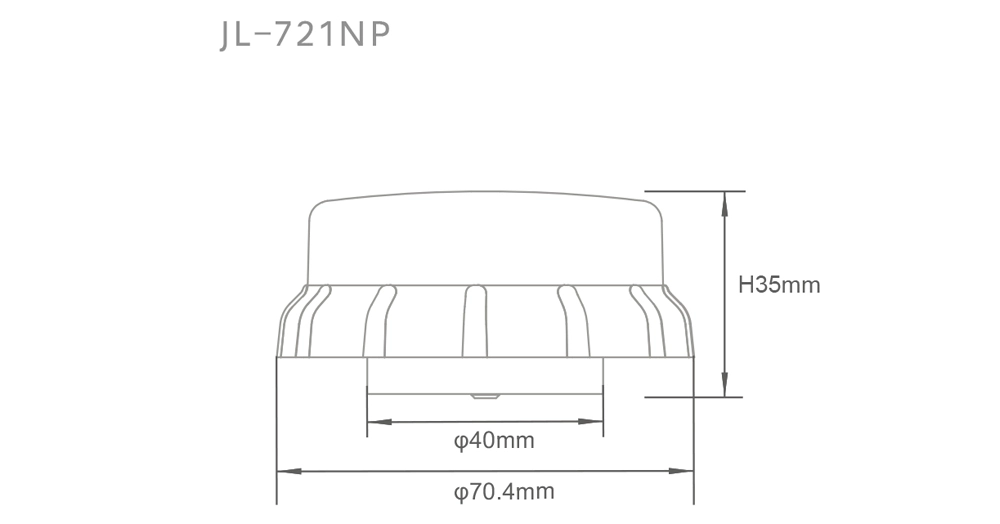

Small size, suitable for installation in most lamps
Interference lighting filtering
Lamp reflected light compensation
Support DFOTA remote software upgrade
Undervoltage alarm report
RTC
External NANO SIM card
IP66

JL-721NP DALI2.0 Dimming ZHAGA BOOK18 Interface Standard Development Overview:

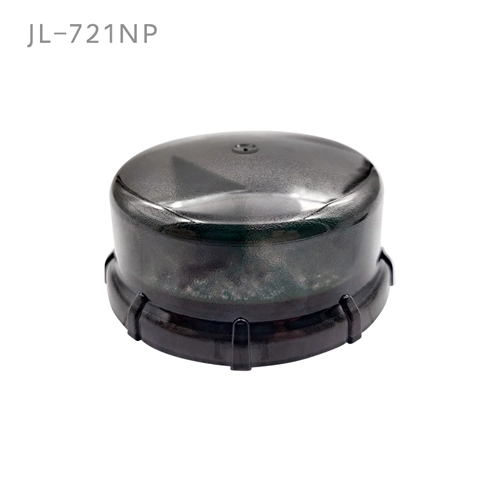

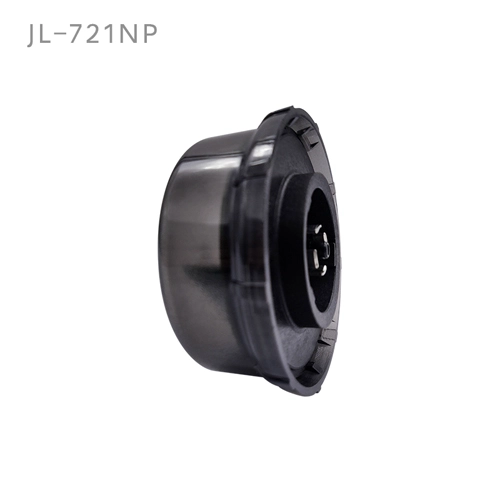

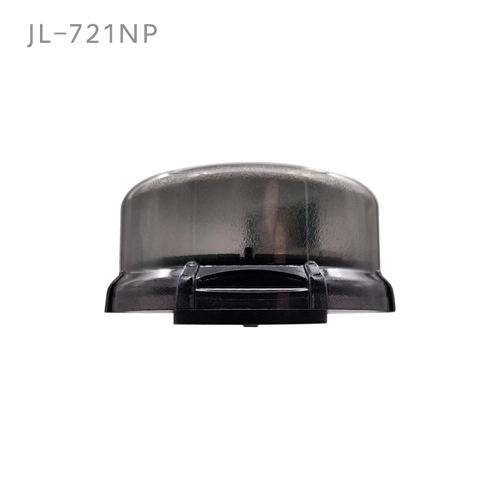

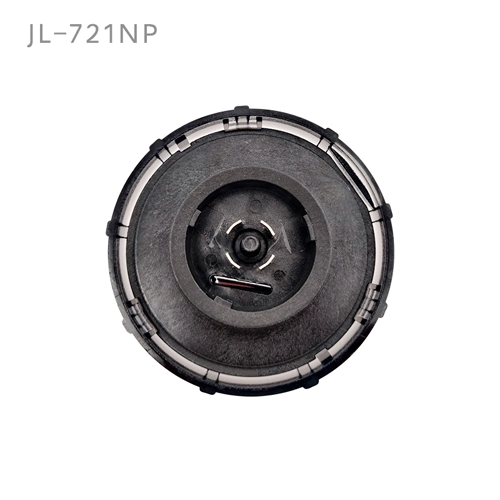

The JL-721NP series of light controllers are advanced, twist-lock controllers designed to comply with the ZHAGA BOOK18 interface standard. They offer the capability to dim automatically in response to the local ambient light levels or through NB-IoT for remote real-time or scheduled control. The dimming functionality is compatible with DALI2.0 protocol and includes GPS for automatic geolocation of the device. These controllers are appropriate for a variety of lighting environments, including streets, industrial and mining sites, grassy areas, parking lots, courtyards, and public parks.

JL-721NP DALI2.0 Dimming ZHAGA BOOK18 Interface Standard Development Of Intelligent Lock Type Specifications

Model No.	JL-721NP
Power Supply	Rated voltage：12~24VDC，5W
Communication mode	NB-IoT
Spectral Acquisition Range	350~1100nm, Peak wavelength 550nm
Ambient light acquisition	Range：0.01~64000Lux Accuracy：±2%
Turn on Illuminance	100Lux（±10）
Turn off Illuminance	Reflected light +40Lux（±10） Lower limit：50+40Lux（±10） Upper limit：6000Lux（±100）
Reflected light compensation upper limit	6000Lux（±100）

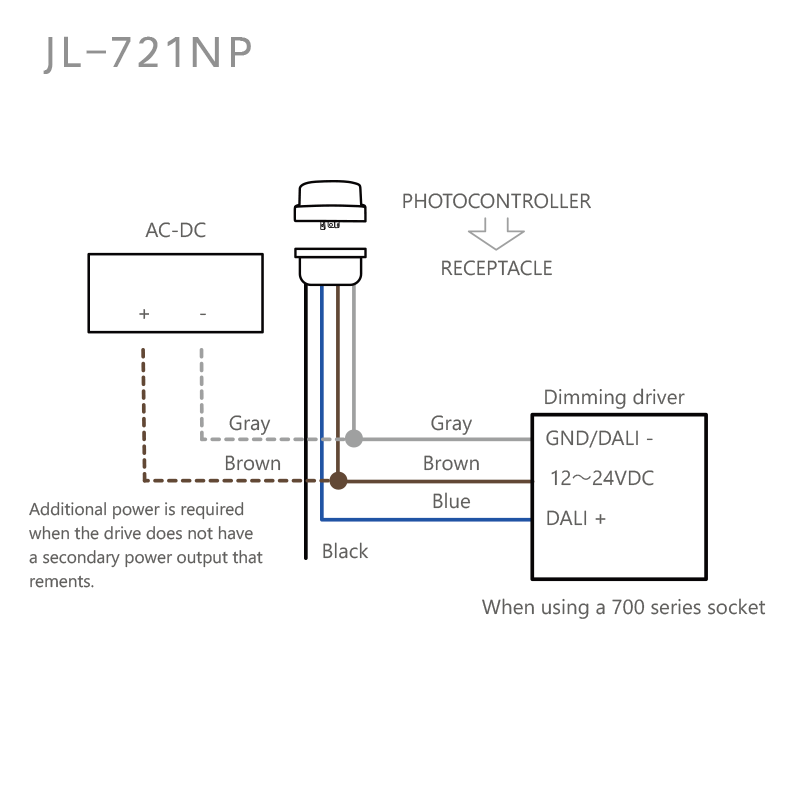

Dimming interface	DALI2.0
Default maximum power ratio	80%
NB-IOT	Frequency band：B1/B3/B5/B8/B20（customizable） Transmitting power：23dBm±2dB Receiving sensitivity：-129dBm
Network Protocol	MQTT
Initialization	After power on, the light is turned on by default and maintains 5S, then automatically turns off the light and enters the auto-sensing operation mode *1
Blue LED Indicator Light	Blinking: Connecting to the server Always on: Successfully connected to the server
Default periodic reporting frequency	10 minute
Turn on delay	10S
Turn off delay	10S
Energy saving strategy	Custom
Mechanical Vibration	IEC60068-2-6
Flammability Level	UL94-V0
Operating Temperature	-40℃~70℃
Operating Humidity	5%RH~99%RH
IP Level	IP66
