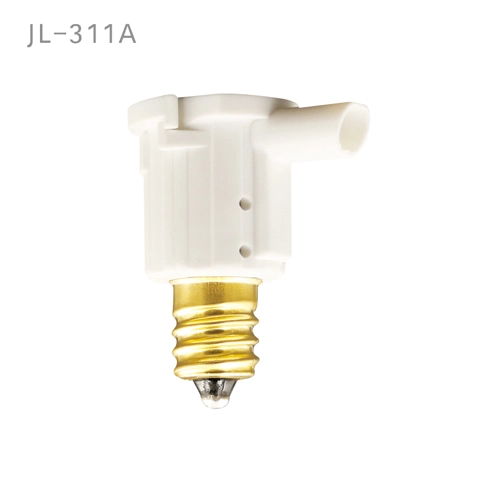

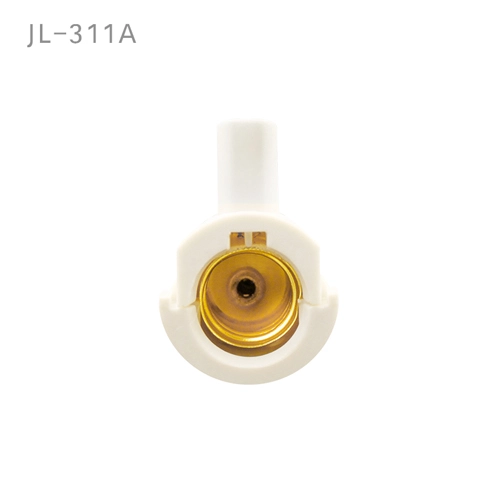

JL-311A E12 Candlestick Bulb Socket Type

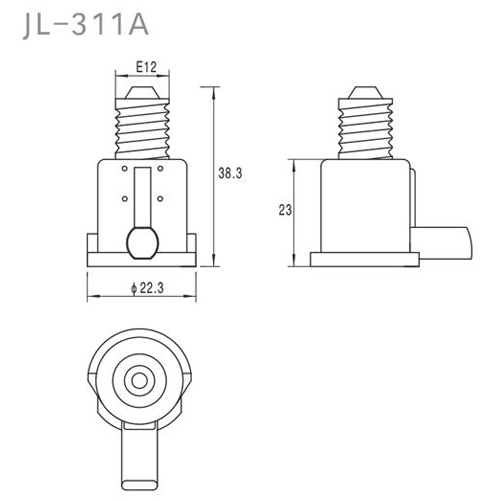

Electronic Light Control Switch, Length 38.3mm

The JL-311A series of bulb holder controls is suitable for automatically managing candelabra bulbs based on the surrounding natural light conditions.

JL-311A E12 Candlestick Bulb Socket Type Specifications

Model No.	JL-311A
Rated Voltage	120VAC
Rated Frequency	60Hz
Rated Loading	75W Tungsten Max
Power Consumption	0.5W Max.
Standard Operate Level	20~40 LX
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Adapter	E12
Failure Mode	Fail-Off
Sunshade sleeve	●
Certifications

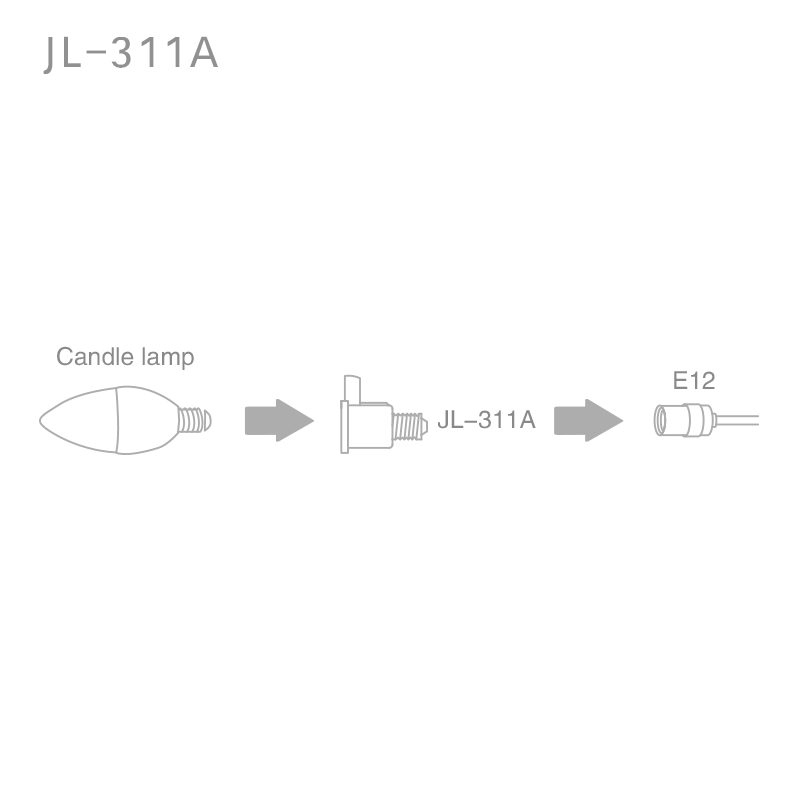

JL-311A E12 Candlestick Bulb Socket Type Installation

Disconnect power.
Screw bulb off.
Screw the unit into bulb holder completely.
Screw bulb into the bulb holder of the unit.
Connect power. Turn lamp switch ON.
Do not install the switch with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.
Avoid to use the unit in an opaque or reflective glass lantern, as well as use in a wet place.

JL-311A E12 Candlestick Bulb Socket Type Installation
