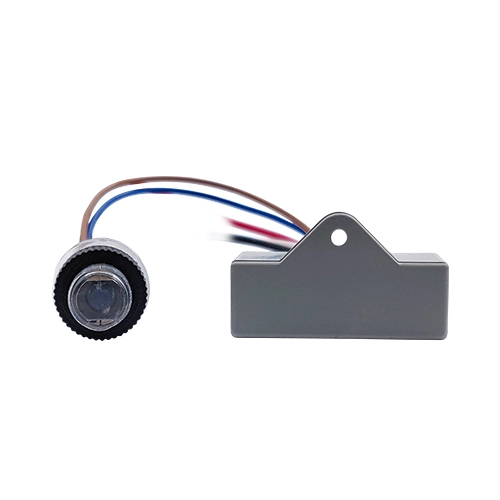

Name: JL-412CR Separated Sensor, Miniature Improved Electronic
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-412CR Separated Sensor, Miniature Improved Electronic Overview:

The JL-412CR photocontrol is suitable for the automatic control of lighting in passageways and doorways, functioning in sync with the environmental light intensity. Crafted with advanced electronic circuitry, it features a swift response rate complemented by a 3-10 second time delay, which simplifies testing procedures. Its sleek, compact design is compatible with the majority of small lighting fixtures. Moreover, the inclusion of a 3-10 second pre-set time delay helps prevent unnecessary activation from headlights or nighttime lightning. This unit is certified by UL LLC and meets the criteria set forth in the UL773A standard for non-industrial photoelectric switches used in lighting control. The R model of this device comes with a separate sensor component.

JL-412CR Separated Sensor, Miniature Improved Electronic Specifications

Model No.	JL-412C	JL-412CR
Rated Voltage	120~277VAC
Available Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Rated Loading	1.2A Tungsten / Ballast 1A e-Ballast
Power Consumption	1W Max.
On-off Levels	10~30Lx Turn-On / 30~80Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Leads Length	AWG #18, AWM1430
Wire Color Coding	US
Certifications

JL-412CR Separated Sensor, Miniature Improved Electronic Installation

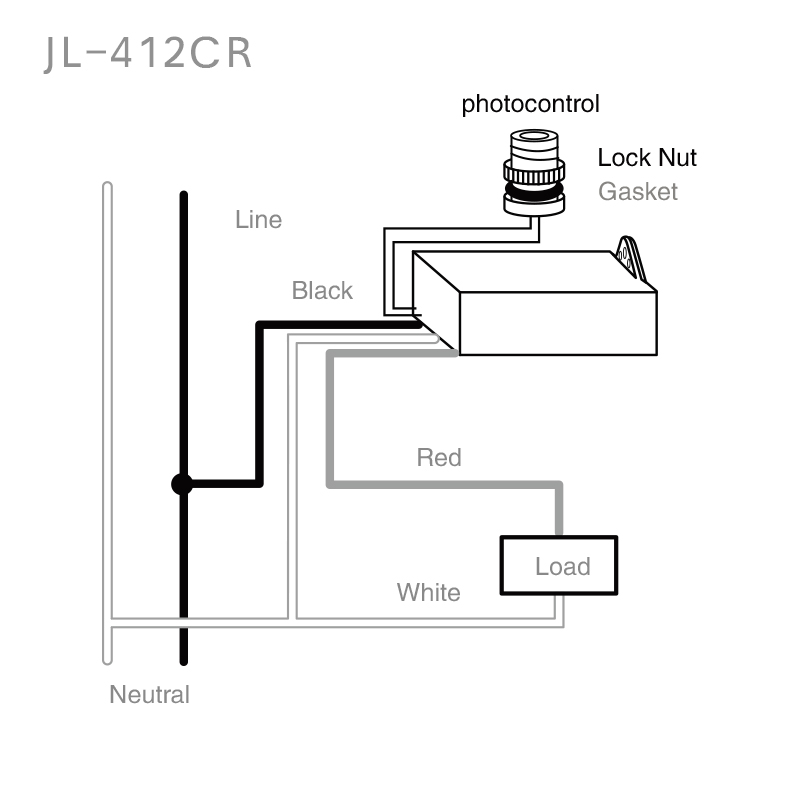

Disconnect power, place screw thread of the photocontrol in knockout hole and fasten with rubber gasket and lock-nut. Wire according to the diagram in below. Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

JL-412CR Separated Sensor, Miniature Improved Electronic Installation
