Name: JL-240XHB Built-In 5-Pin NEMA Socket
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-240XHB Built-In 5-Pin NEMA Socket Overview:

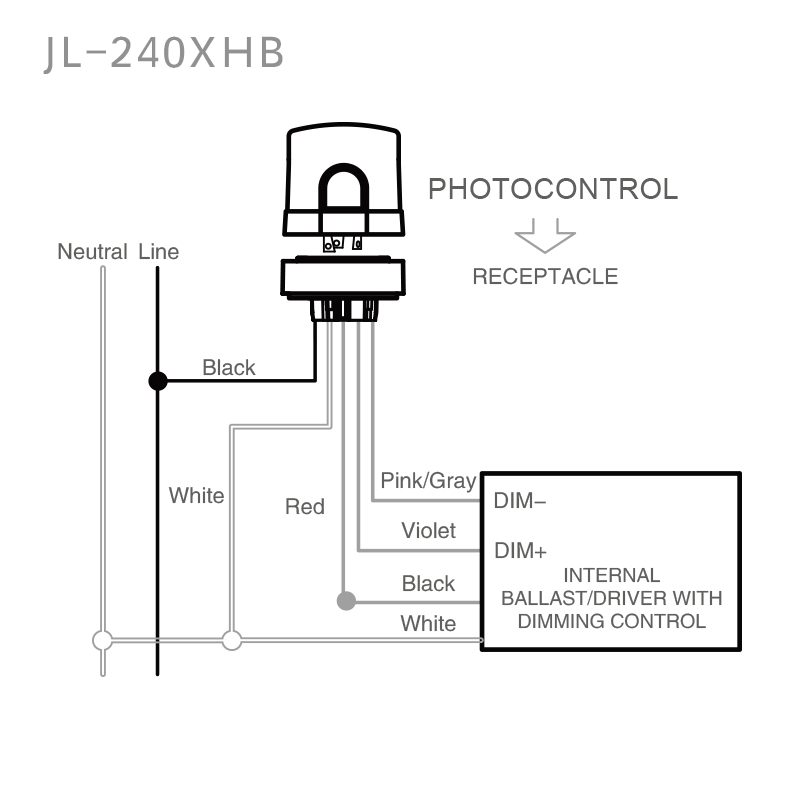

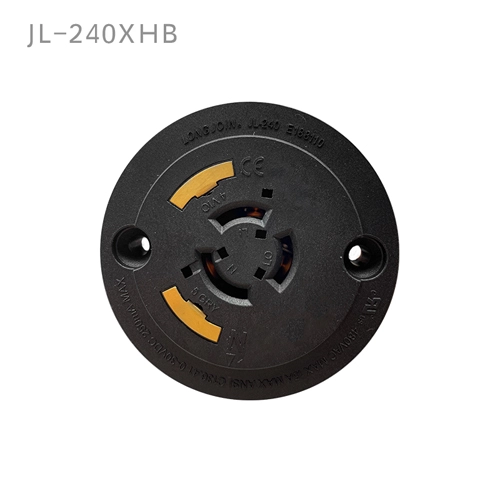

The JL-240XHB twist-lock photocell socket is crafted for outdoor lighting fixtures, enabling control of LED luminaires with twist-lock photocells. This product is equipped with two gold-plated, arc-shaped contact tabs on its top surface, designed to mate with the spring contacts of twist-lock photocells (ANSI C136.41), and includes two signal wires at the back. The JL-240XHB adheres to the standards for insert and twist-lock photocells as specified by ANSI C136.10, ANSI C136.41, and ANSI/UL773 for area lighting applications.

JL-240XHB Built-In 5-Pin NEMA Socket Specifications

Model No.	JL-240XH
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Load Rating	15A
Signal Control	0-30 VDC, 250 mA Max
Lead	16AWG/14AWG 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Outdoor Wiring Cable	●
Certifications	ANSI C136.41-2013
