Name: JL-207 NEMA Interface
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-207 NEMA Interface Overview:

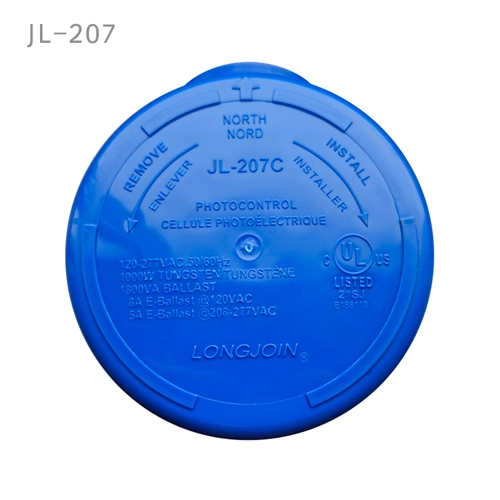

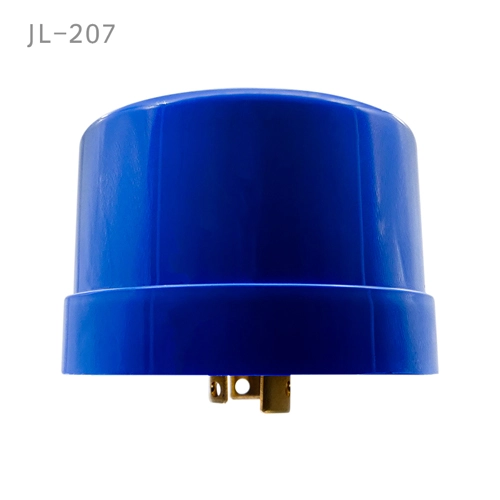

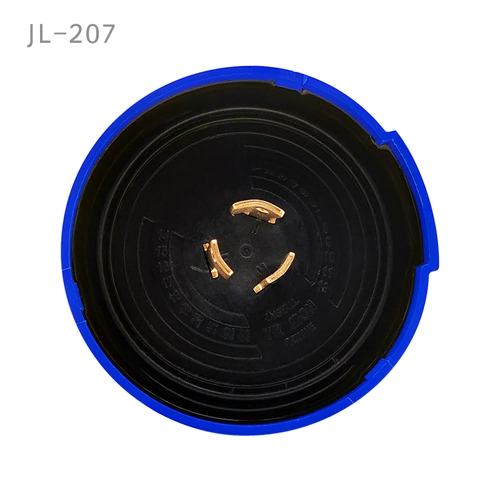

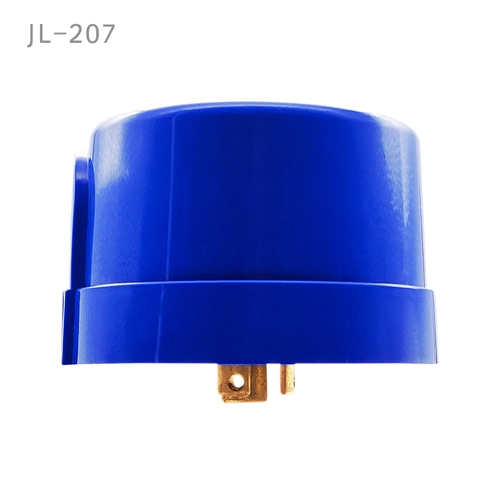

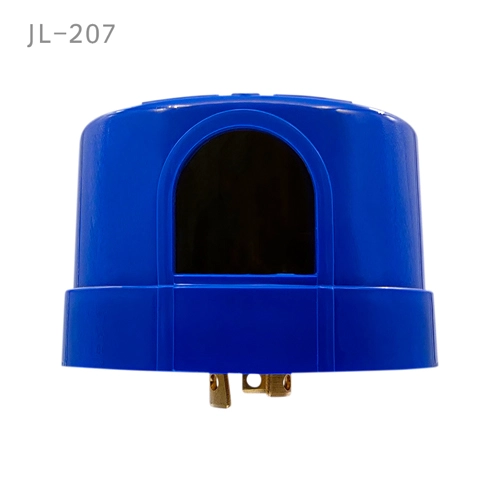

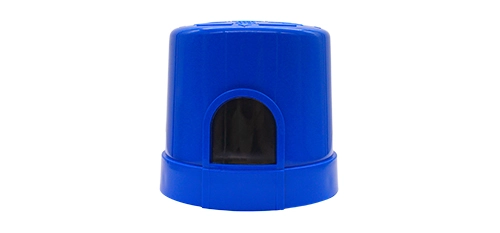

The JL-207 series of photocontrols is designed to automatically manage street, garden, corridor, and entrance lighting based on the surrounding natural light levels, offering an energy-saving function at daybreak. These products feature microprocessor circuits with an IR-filtered phototransistor and include a surge arrester (MOV) for added protection. They also include a factory-set time delay of 5-20 seconds to prevent unnecessary activation from vehicle headlights or nighttime lightning. The long-life version ensures stable and dependable performance over time, with the relay capable of over 10,000 operating cycles. When equipped with a double-layer protective casing, the JL-207 series can extend its operational life. The HP variant is designed to handle higher loads. The product is equipped with twist-lock terminals that comply with ANSI C136.10 standards and the ANSI/UL773 specification for plug-in, locking type photocontrols used in area lighting.

JL-207 NEMA Interface Specifications

Model No.	JL-207C	JL-207CHP	JL-207E	JL-207F
Rate Voltage	120~277VAC		347VAC	480VAC
Applicable Voltage Range	105~305VAC		105~382VAC	105~528VAC
Rated Voltage	50/60Hz
Related Humidity	96%
Ambient Temperature	-40℃~+70℃
Failure mode	C5：Fail-On C4：Fail-Off	C5HP：Fail-On C4HP：Fail-Off	E5：Fail-On E4：Fail-Off	F5：Fail-On F4：Fail-Off
Rated Loading	1000W Tungsten, 1800VA Ballast, 8A@120VAC/ 5A@208-277VAC e-Ballast	1800W@120VAC 2000W@208-277VAC Tungsten, 1800VA@120VAC 2000VA@208-277VAC Ballast	1800W Tungsten, 1800VA Ballast, 5A e-Ballast	1800W Tungsten, 1800VA Ballast

Operate Levels	16Lx On / 24Lx Off （Typical）
Shell material	optional Sandwich cover
Power consumption	0.5W Max.	0.9W Max.	0.5W Max.
High protection	sandwich cover（optional）
IP level	IP54 / IP65 / IP67
Factory settings	Illuminance/Delayed Customizable
Zero crossing control	●		N/A
FCC	●		N/A
Certifications		ANSI C136.10-2017
