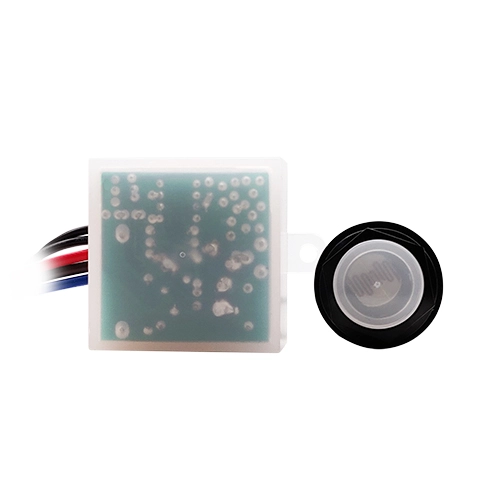

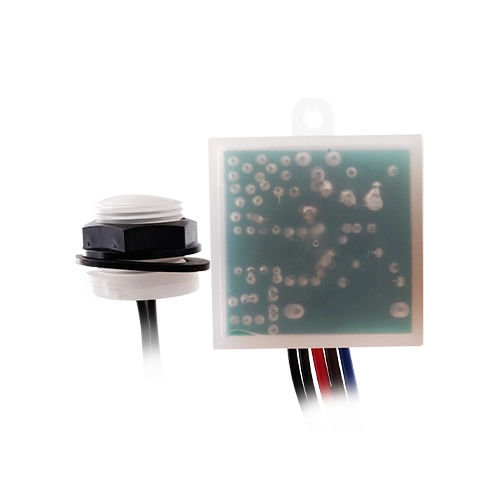

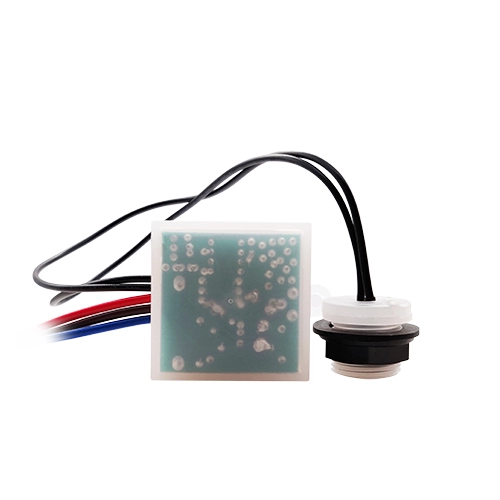

Name: JL-401BR Separated Sensor
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-401BR Separated Sensor Overview:

The JL-401B photocontrol is designed to automatically manage outdoor lighting in gardens, corridors, and doorways, responding to the level of natural light in the environment. Moreover, it includes a pre-set time delay of 10 to 30 seconds to minimize unnecessary activation from headlights or flashes of lightning at night.

JL-401BR Separated Sensor Specifications

Model No.	JL-401B	JL-401BR
Rated Voltage	220~240VAC
Rated Frequency	50/60Hz
Sensor Type	CdS photocell
Rated Loading	6A TUNGSTEN、6A Ballast
Power Consumption	5W Max.
Operate Levels	10~20Lx Turn-On / 25~35Lx Turn-Off
Fail Mode	Fail-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Leads Length	AWG#18, AWM1015
Wire Color Coding	Europe
Surge Protection	40J/1750A (MOV)
Certifications

JL-401BR Separated Sensor Installation

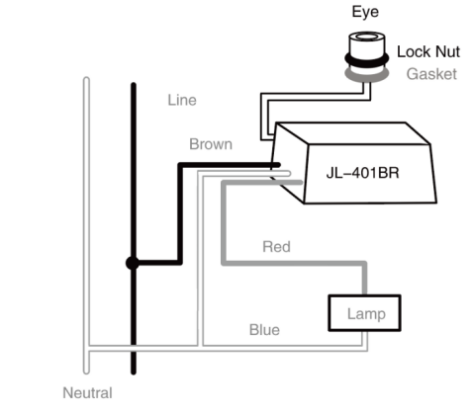

Disconnect power, place screw thread of the photocontrol in knockout hole and fasten with rubber gasket and lock-nut. Wire according to the diagram in below. Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

JL-401BR Separated Sensor Installation
