Name: JL-412C Integrated Sensor, Miniature Improved Electronic
Brand: Shanghai Long-Join Intelligent Technology Inc.

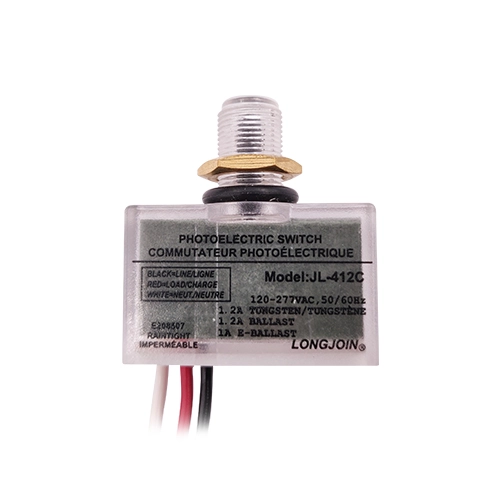

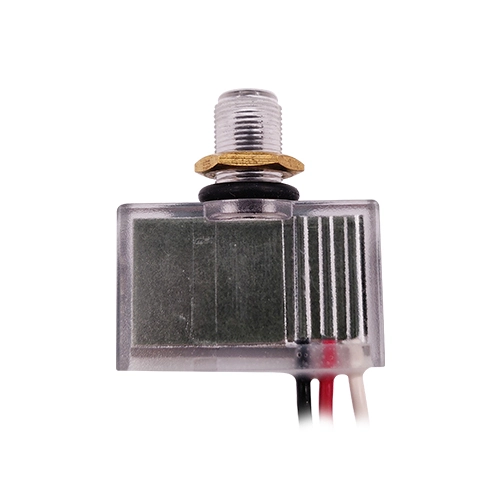

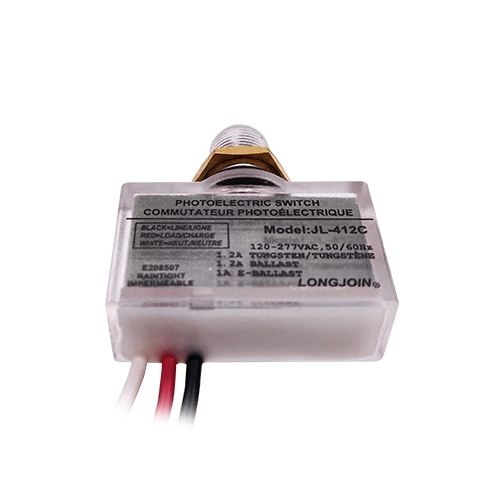

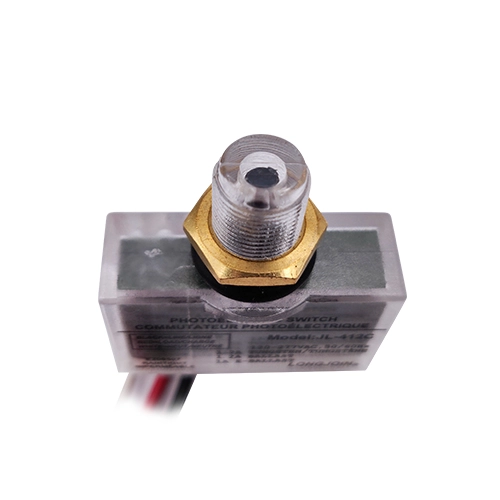

JL-412C Integrated Sensor, Miniature Improved Electronic Overview:

The JL-412C photocontrol is intended for the automatic management of lighting in corridors and entryways, responding to the surrounding light levels. Engineered with sophisticated electronic circuitry, it boasts a rapid response time with a built-in delay of 3 to 10 seconds, facilitating ease of testing. Additionally, its compact size is compatible with a wide range of smaller lighting fixtures. The unit also includes a factory-set time delay of 3 to 10 seconds to prevent unnecessary activation by vehicle headlights or nocturnal lightning strikes. This product has received certification from UL LLC and adheres to the UL773A standard for non-industrial photoelectric switches used in lighting control.

JL-412C Integrated Sensor, Miniature Improved Electronic Specifications

Model No.	JL-412C	JL-412CR
Rated Voltage	120~277VAC
Available Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Rated Loading	1.2A Tungsten / Ballast 1A e-Ballast
Power Consumption	1W Max.
On-off Levels	10~30Lx Turn-On / 30~80Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Leads Length	AWG #18, AWM1430
Wire Color Coding	US
Certifications

JL-412C Integrated Sensor, Miniature Improved Electronic Installation

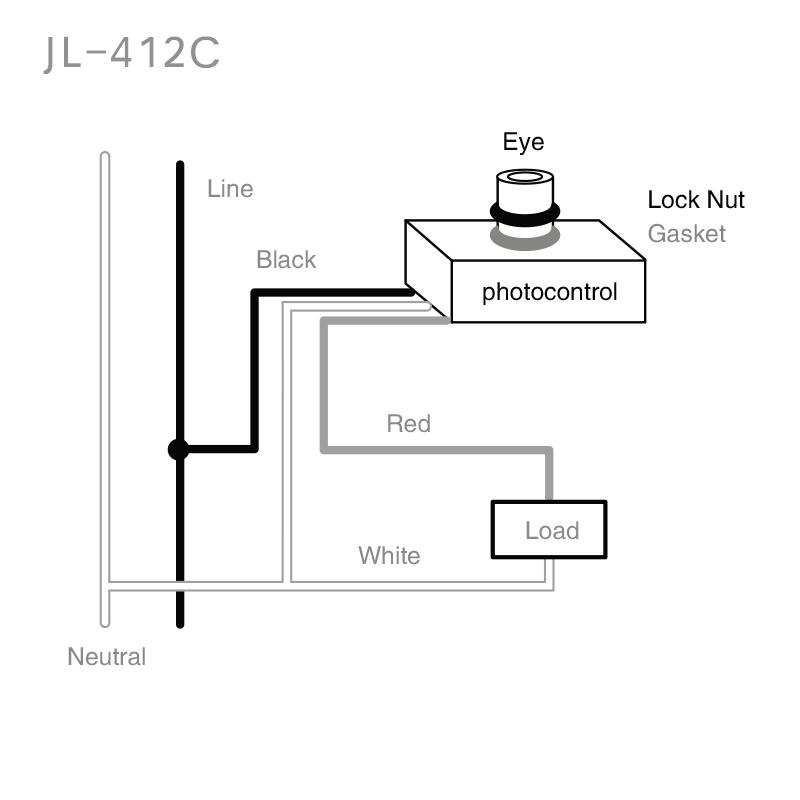

Disconnect power, place screw thread of the photocontrol in knockout hole and fasten with rubber gasket and lock-nut. Wire according to the diagram in below. Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

JL-412C Integrated Sensor, Miniature Improved Electronic Installation
