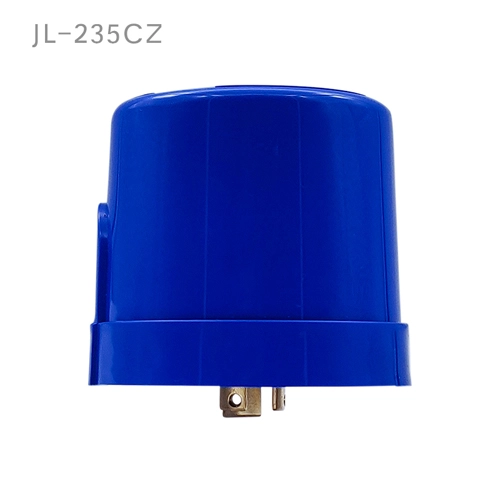

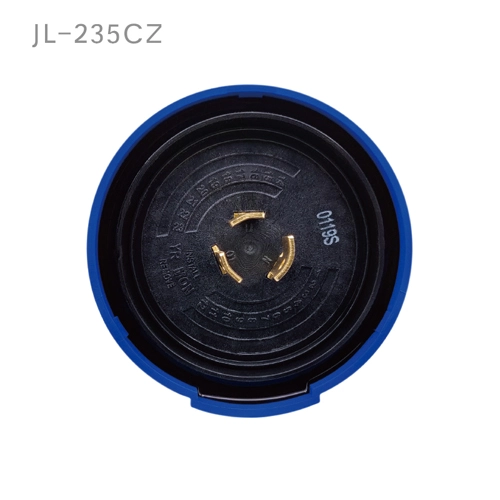

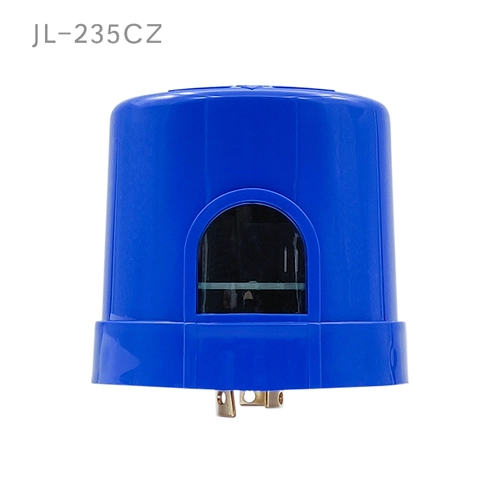

JL-235CZ NEMA Interface

Built-In Zigbee Communication Module Twist Lock Intelligent Photocontrol (Sub-Control)

JL-235CZ NEMA Interface Features:

ANSI C136.10 Twist-lock
Fail-On Mode
Time Delay 5-20s
Multi-Volts Available
Surge Arrester Built-in
IR-Filtered Phototransistor

JL-235CZ NEMA Interface Overview:

The JL-235CZ photocontrol is designed to automatically manage street, garden, passage, and doorway lighting based on the surrounding natural light levels, and it can also be controlled via a remote system. This device includes a Zigbee communication module, enabling it to be integrated with a smart Internet of Things (IoT) management system for remote operation.

JL-235CZ NEMA Interface Overview:

JL-235CZ NEMA Interface Specifications

Model No.	JL-235CZ
Rated Voltage	120~277VAC
Applicable Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Wireless Communication （down）	Zigbee
Spectral Acquisition Range	350~1100nm ; Peak wavelength：590nm
Rated Loading	1000W Tungsten, 1000VA Ballast 8A e-Ballast @120VAC/5A e-Ballast @208-277VAC
Power Consumption	2.4W Max.
Operate Levels	Turn-On＜100Lx，Turn-Off＞150Lx / per client request
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Fail Mode	Fail-On
Shell Material	PC+PC
Optional High Protection	Double Shell
Surge protection level	6KV/3KA
IP level	IP65 / IP67
Factory settings	Remote control+Adaptive mode
Certifications

JL-235CZ NEMA Interface Installation

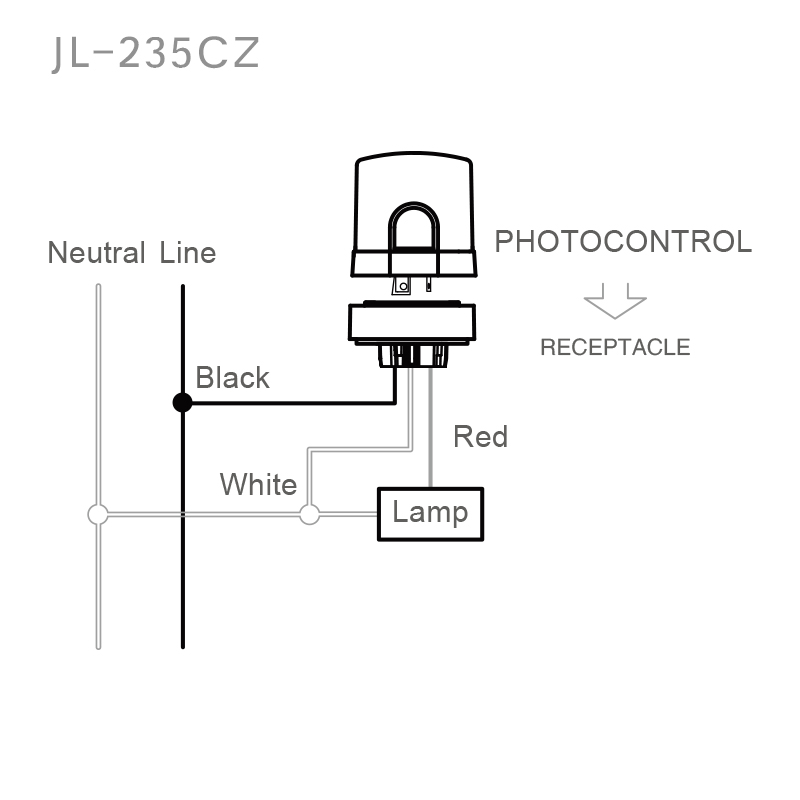

Disconnect power; wire the color coded receptacle according to the diagram below.

Push the photocontrol on and twist it clockwise to lock it into the receptacle.

Adjust the receptacle position if necessary, to ensure the Photocell facing the NORTH direction as indicated on the top of the photocontrol.

JL-235CZ NEMA Interface Installation
