Name: JL-246CG NEMA Interface 0-10V
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-246CG NEMA Interface 0-10V Overview:

The JL-246CG photocontrol is suitable for both standalone and integrated system control in a variety of environments including streets, trade shows, educational facilities, shopping centers, supermarkets, industrial settings, and parks. It is equipped with both a Zigbee and an LTE communication module, which enables the Zigbee group to be remotely managed via an intelligent IoT management system.

JL-246CG NEMA Interface 0-10V Specifications

Model No.	JL-246CG
Rated Voltage	120~277VAC
Applicable Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Dimming Output	0~10VDC
Wireless Communication（up）	LTE-Cat1
Wireless Communication（down）	Zigbee
Spectral Acquisition Range	350~1100nm；Peak wavelength 590nm
Rated Loading	1000W Tungsten,1000VA Ballast,8A@120VAC/5A@208-277VAC e-Ballast
Operate Levels	Turn-On＜100Lx，Turn-Off＞150Lx / per client request
Power Consumption	1.2W static，10W dynamic
Ambient Temperature	-40℃~70℃
Related Humidity	96%
Fail Mode	Fail-On
Shell material	PC+PC
High protection	Double Shell
Surge protection level	6KV/3KA differential mode
IP level	IP54/IP65/IP67
Factory Settings	Remote control+Adaptive mode
FCC	●
Certifications
Criterion	IEC61000-4-5；IEC61000-4-2；IEC61000-4-3， IEC61000-4-6；GB/T 17743-2017；IEC61000-4-4； IEC61000-4-11；IEC61000-3-2；GB/T2423.10-2008； UL94-V0；

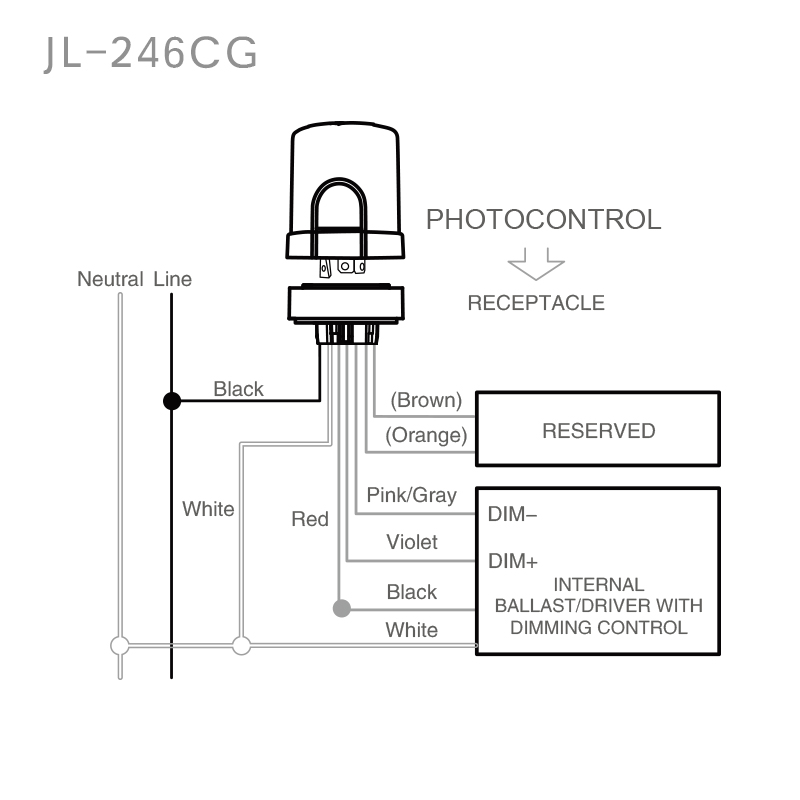

JL-246CG NEMA Interface 0-10V Installation

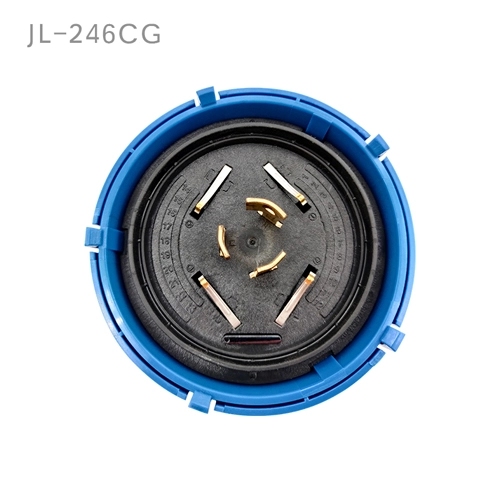

The interface of the product itself has been mistake-proof designed, just tighten the photocontrol directly to the rotatable/fixed base, as shown in Figure clockwise after insertion.
