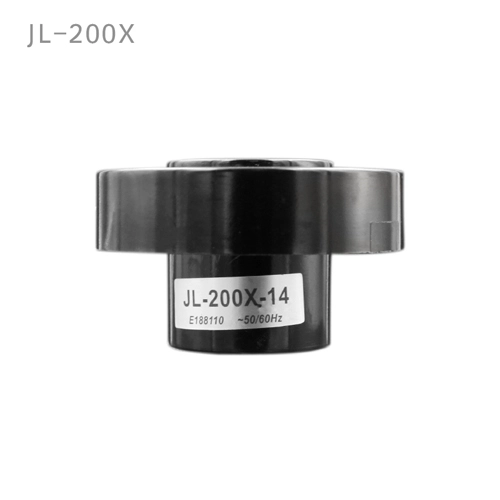

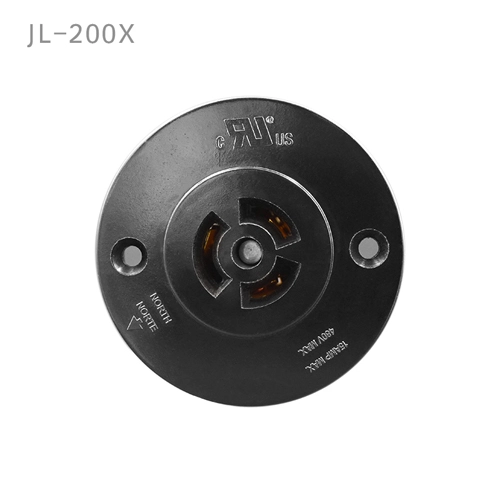

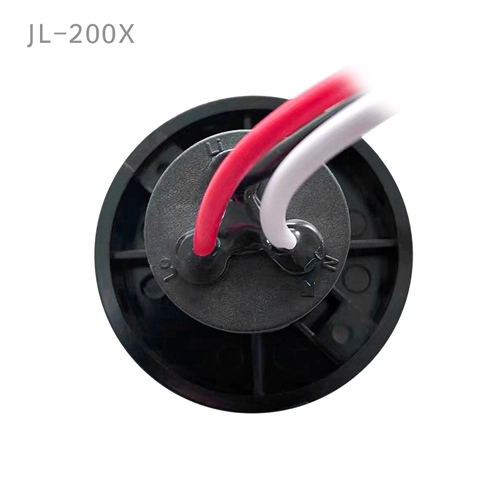

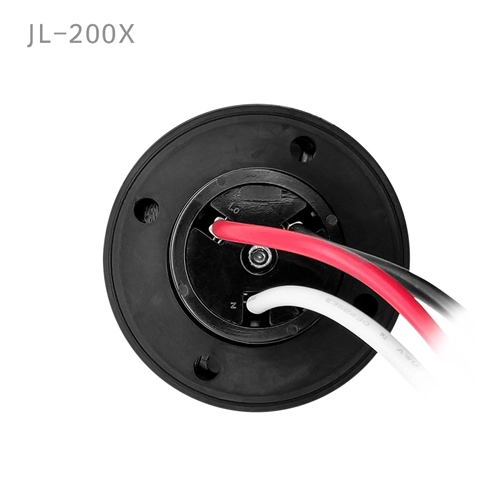

JL-200X Built-In 3-Pin NEMA Socket

Photocontrol Receptacle

JL-200X Built-In 3-Pin NEMA Socket Features:

Bakelite body for long-life service
Silicone gasket for better waterproof

JL-200X Built-In 3-Pin NEMA Socket Overview:

The JL-200 twist-lock photocell switch socket series products are designed for outdoor lighting fixtures, used to accept the power control of the twist-lock photocell/controller/switch. The product offers three terminal lock tabs, meeting the standards required for insert and twist-lock photocells as per ANSI C136.10 and ANSI/UL773 for area lighting.

JL-200X Built-In 3-Pin NEMA Socket Overview:

JL-200X Built-In 3-Pin NEMA Socket Specifications

Model No.		JL-200X	JL-200Z
Power Volt Range		0~480VAC
Rated Frequency		50/60Hz
Load Rating		15 A
Ambient Temperature		-40°C ~ +70°C
Related Humidity		96%
Accessory	Rear holder	—	●
	Zinc Alloy Lock Nut	—	●
	Mounting Bracket	—	●
Lead Length		6" min
Lead		AWG#12/14/16 AWG#18(non-UL)	AWG#12/14 AWG#16/18(non-UL)
Cable Line (IP65)		-	Optional
Certifications		ANSI C136.10-2010（RS type only）

JL-200X Built-In 3-Pin NEMA Socket Installation

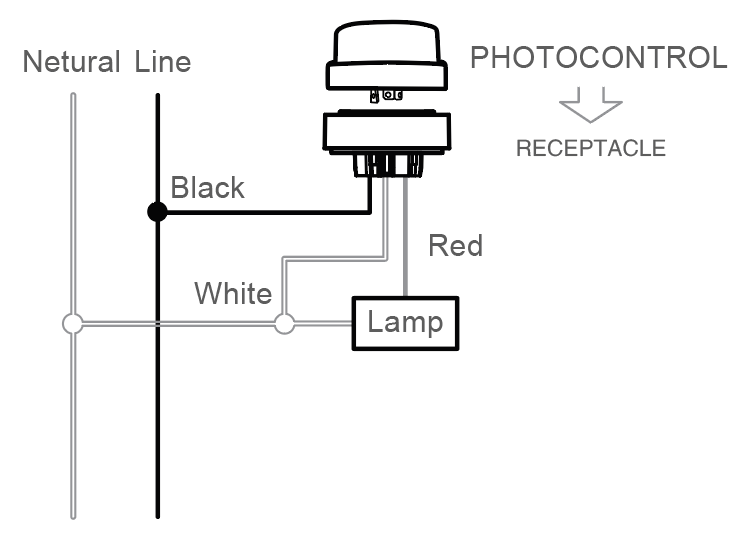

Disconnect power; wire the receptacle according to the diagram below.

JL-200X Built-In 3-Pin NEMA Socket Installation

An arrow indicating NORTH on the top of the receptacle is used to assist correct direction.

Adjust the receptacle position if possible. when the fixture is installed in field.
