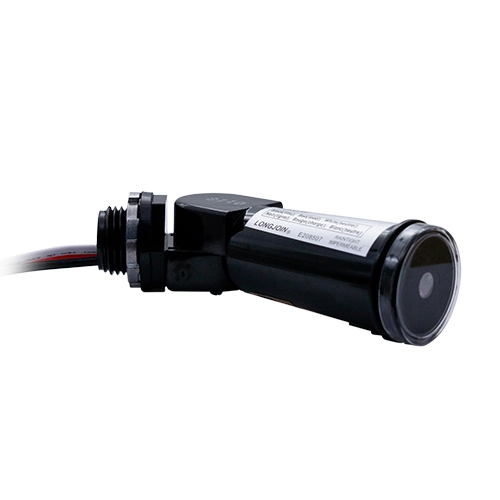

Name: JL-404C Swiveled Wire-In Electronic Photocontrol
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-404C Swiveled Wire-In Electronic Photocontrol Overview:

The JL-404C wired electronic photocontrol switch is suitable for autonomously controlling garden, passage, and entrance lighting based on the ambient natural light levels. This product features an electronic circuit design. It has a faster response rate, is easy to install and test, and includes a 3-10 second time delay control function to prevent redundant operations at night due to spotlights or lightning. Combined with a rotatable connector, it allows for easy directional adjustment after installation. The product has been certified by UL in the United States and meets the UL773A standard for non-industrial photoelectric switches for lighting control.

JL-404C Swiveled Wire-In Electronic Photocontrol Specifications

Model No.	JL-404C
Rated Voltage	120~277VAC
Available Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Rated Loading	500W Tungsten, 850VA Ballast 5A e-Ballast
Power Consumption	1.8W@120VAC
Operate Levels	10~20Lx Turn-On / 30~80Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Leads	AWG #18, 105℃ 4" min
Wire Color Coding	US
Failure Mode	Fail-Off
Certifications
