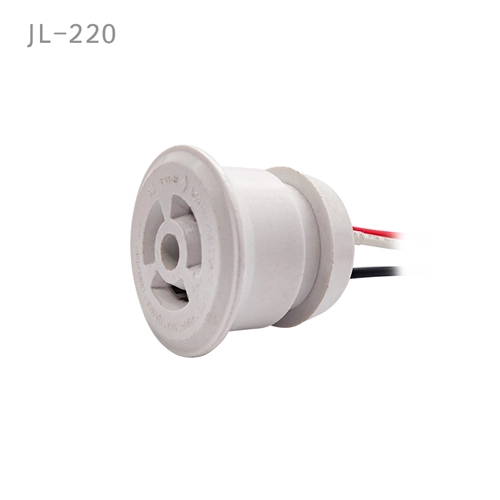

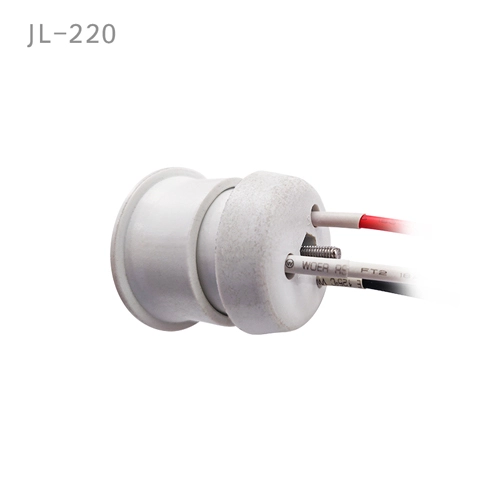

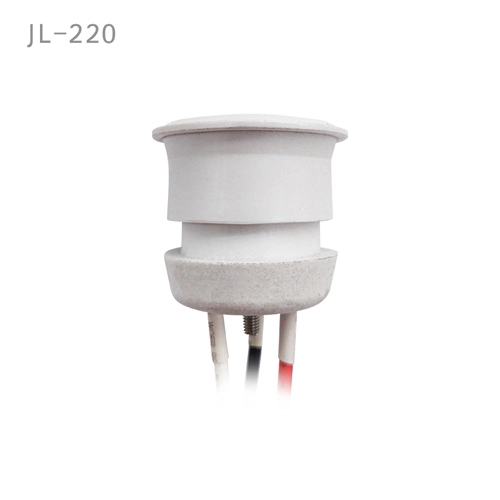

JL-220 Built-In 3-Pin NEMA Socket

Photocontrol Receptacle Compact

This photocell socket is custom-engineered for lanterns featuring a casted ascending platform, meant to accommodate a twist-lock photocell for electrical control. It includes a 360° rotational limitation feature to meet ANSI C136.10 specifications, supported by a die-cast bracket.

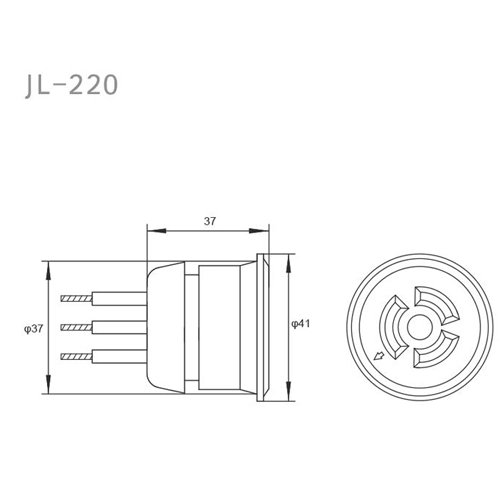

JL-220 Built-In 3-Pin NEMA Socket Specifications

Model No.	JL-220-14/16	JL-220-18
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Load Rating	15A		12A
Lead	16AWG/14AWG 6" min		18AWG 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Certifications

JL-220 Built-In 3-Pin NEMA Socket Installation

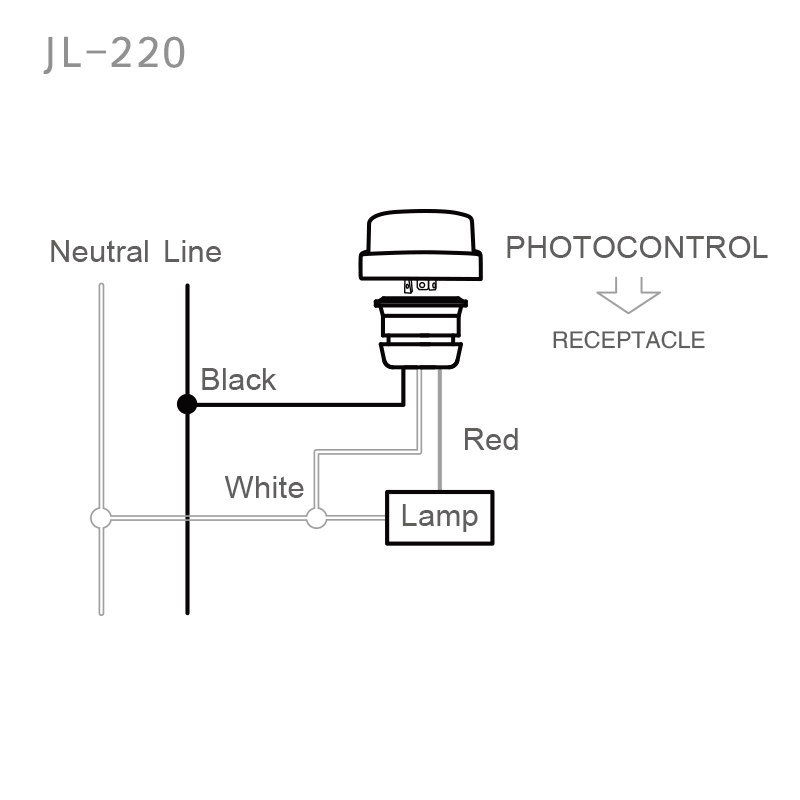

Disconnect power; wire the receptacle according to the diagram below.

JL-220 Built-In 3-Pin NEMA Socket Installation

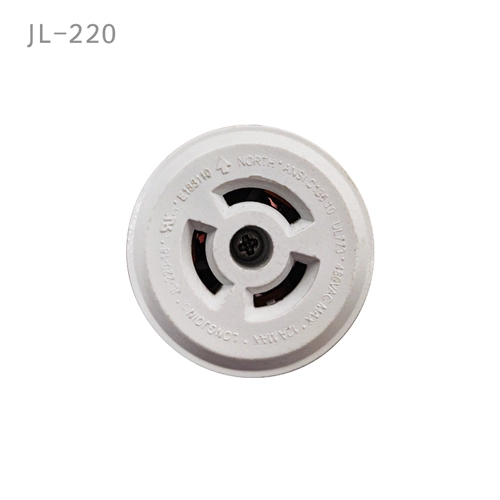

An arrow indicating NORTH on the top of the receptacle is used to assist correct orientation.

Adjust the receptacle position if necessary, by loose the central screw and retighten it, when the fixture is installed in field.
