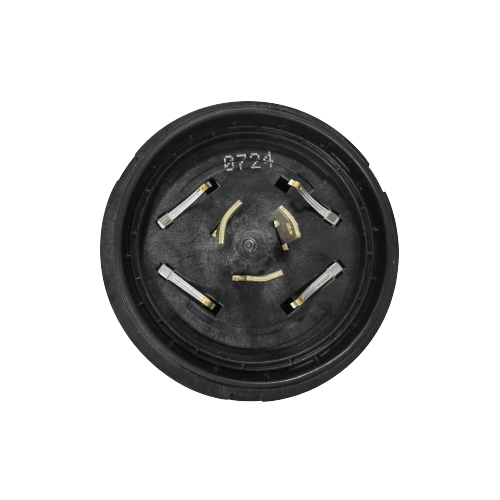

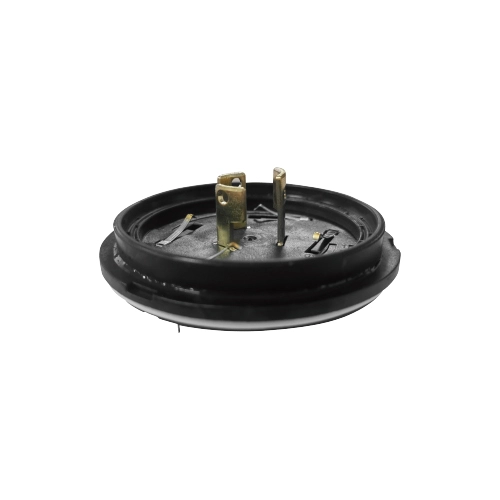

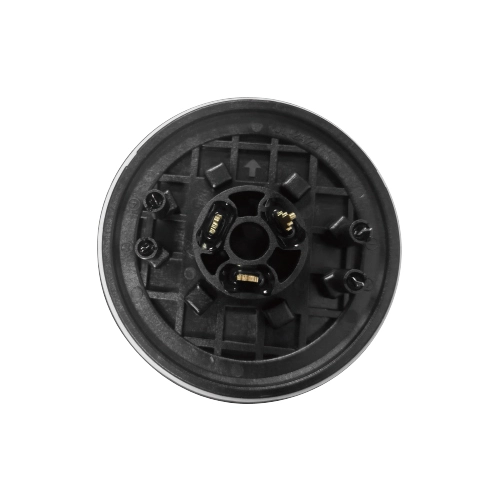

JL-242J NEMA Interface Light Controller Cover

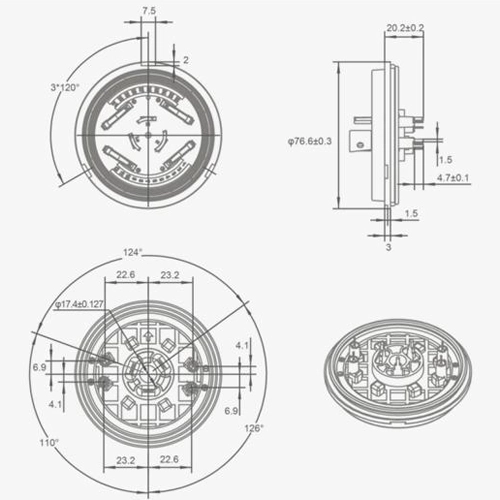

Diameter 76.6mm Height 11.7mm

The base for the single-lamp controller is crafted with 5-pin and 7-pin NEMA socket designs, ideally suited for the control of energy-efficient lighting systems and managing controllers within integrated electronic devices. For power linkage, it incorporates a standard NEMA connector equipped with a twist-to-lock mechanism to maintain a robust connection. Meanwhile, the signal linkage is established through gold-plated spring-loaded contacts, ensuring consistent and reliable signal flow, which in turn facilitates smart management and control of lighting fixtures.

JL-242J NEMA Interface Light Controller Cover Specifications

Model Number	JL-242J/JV
Rated Voltage	Max 480Vac
Rated Frequency	50/60Hz
Rated Load	15A
Signal Control	0-30 VDC, 250 mA Max
IP Level	IP66 (Reachable after assembly)
Material	PBT
Operating Temperature	-40℃ ~ +70℃

JL-242J NEMA Interface Light Controller Cover Installation

JL-242J NEMA Interface Light Controller Cover Installation
