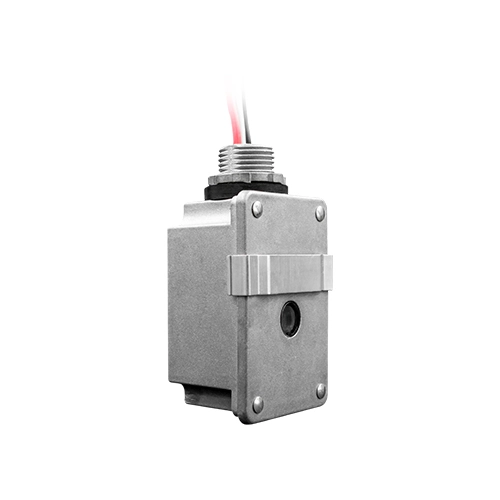

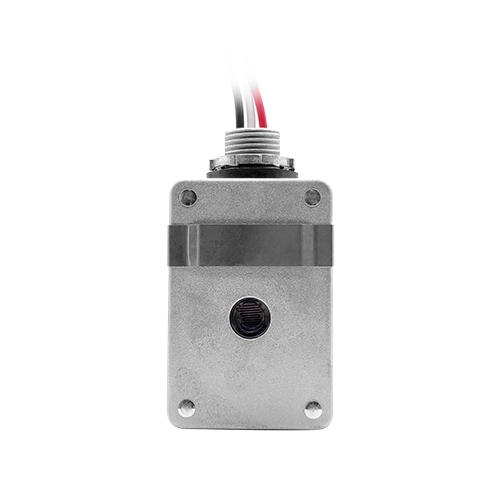

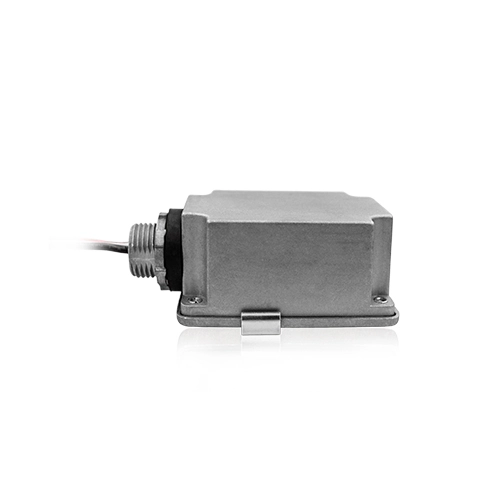

Name: JL-116 With Light Adjustment Bar
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-116 With Light Adjustment Bar Overview:

The JL-116 photocontrol is equipped to regulate the lighting in passageways and doorways automatically, syncing with the surrounding light intensity. Its design incorporates an electrical heating element that introduces a delay of more than 30 seconds to prevent unnecessary activation by vehicle headlights or nighttime lightning. A built-in temperature compensation feature ensures that the performance remains steady across different environmental temperatures. Furthermore, the unit’s compatibility with an additional swivel attachment allows for simple directional tweaking following installation.

JL-116 With Light Adjustment Bar Specifications

Model No.	JL-116A（*V）	JL-116B（*V）	JL-116C（*V）	JL-116D（*V）
Rated Voltage	120VAC	220~240VAC	208~277VAC	277VAC
Applicable Voltage Range	—		200~305VAC	—
Rated Frequency	50/60Hz
Rated Loading	2000W Tungsten,2000VA Ballast
Power Consumption	1.5W Max.
Operate Levels	10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Fail Mode	Fail-On
Lead Wire	AWG#16, AWM3321 4"min
Certifications
