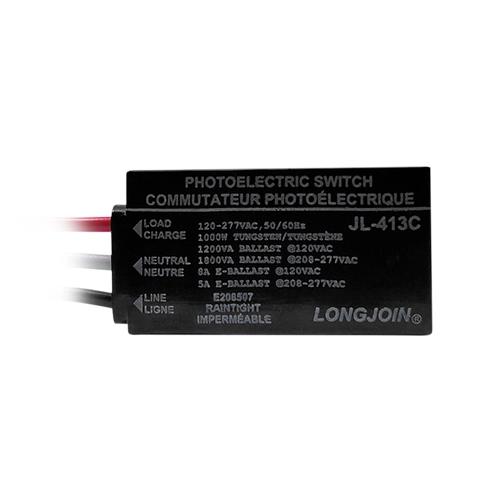

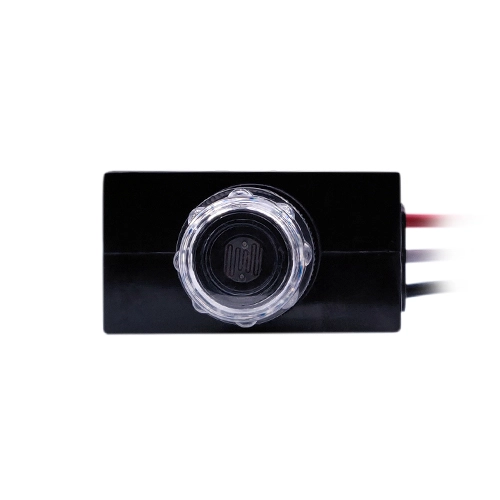

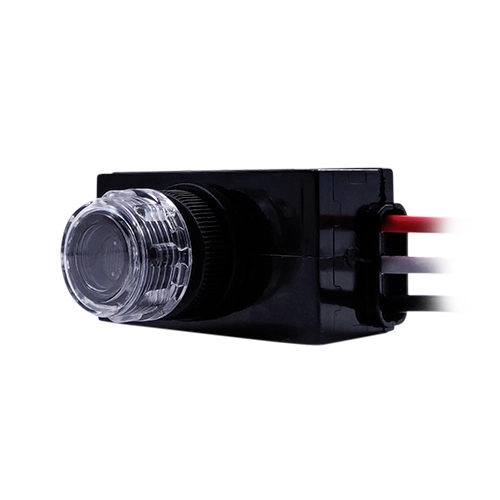

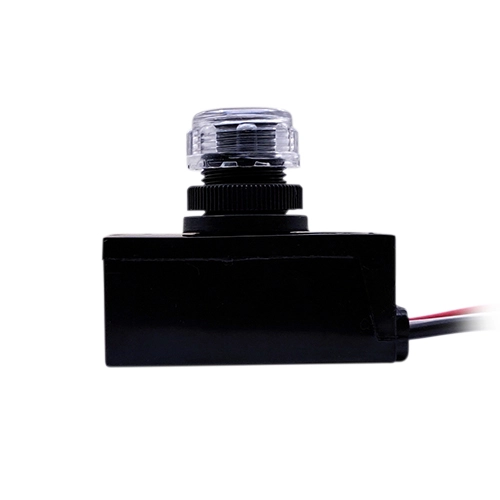

Name: JL-413C (M) Standard Edition (Surge Proof Version)
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-413C (M) Standard Edition (Surge Proof Version) Overview:

The JL-413C photocontrol is suited for the automatic regulation of street, corridor, and entrance lighting based on the surrounding light intensity. Crafted with electronic circuitry, it boasts a rapid response rate and includes a 3-10 second time delay for convenient testing. Notably, the JL-413C model delivers enhanced power factor performance. Additionally, the built-in 3-10 second time delay can prevent erroneous activation caused by vehicle headlights or nighttime lightning.*The M version is a surge protection model.

JL-413C (M) Standard Edition (Surge Proof Version) Specifications

Model No.	JL-413C
Rated Voltage	120~277VAC
Available Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Rated Loading	1000W Tungsten 1200VA Ballast @120VAC 1800VA Ballast @208-277VAC 8A e-Ballast @120VAC 5A e-ballast @208-277VAC
Power Consumption	0.5W Max.
Operate Levels	10~20Lx Turn-On / 30~80Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Leads Length	AWG #16,AWM 1015 4" min
Wire Color Coding	US
Failure Mode	Fail-Off
Rainproof Cap	Optional
Surge Protection	460Joule / 10000Amp (MOV)
Certifications

JL-413C (M) Standard Edition (Surge Proof Version) Installation

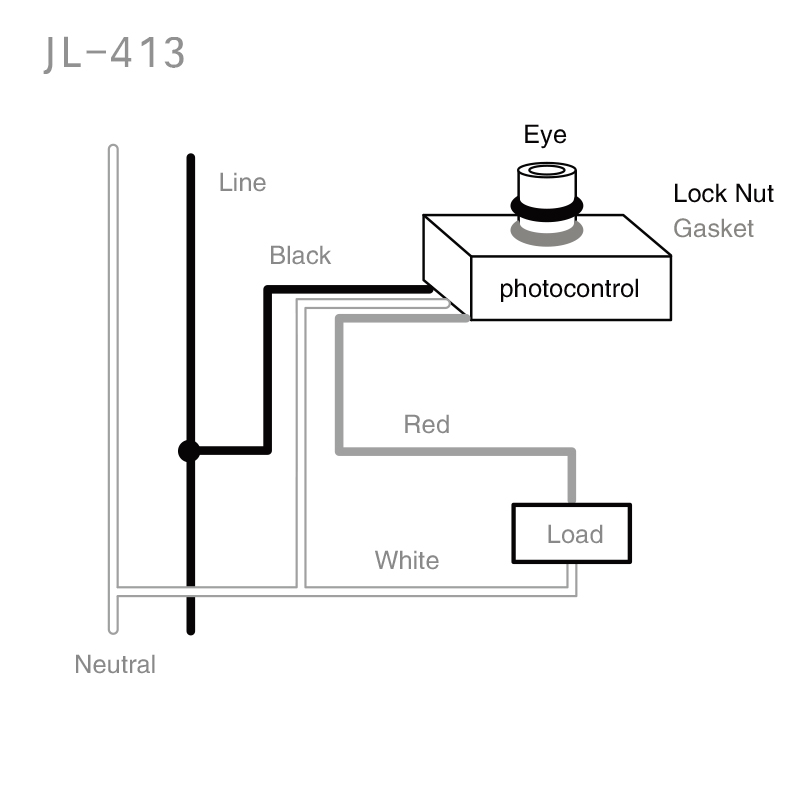

Disconnect power, remove junction box cover, place the photocontrol through knockout hole and fasten with locknut. Wire according to the diagram in below.

Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

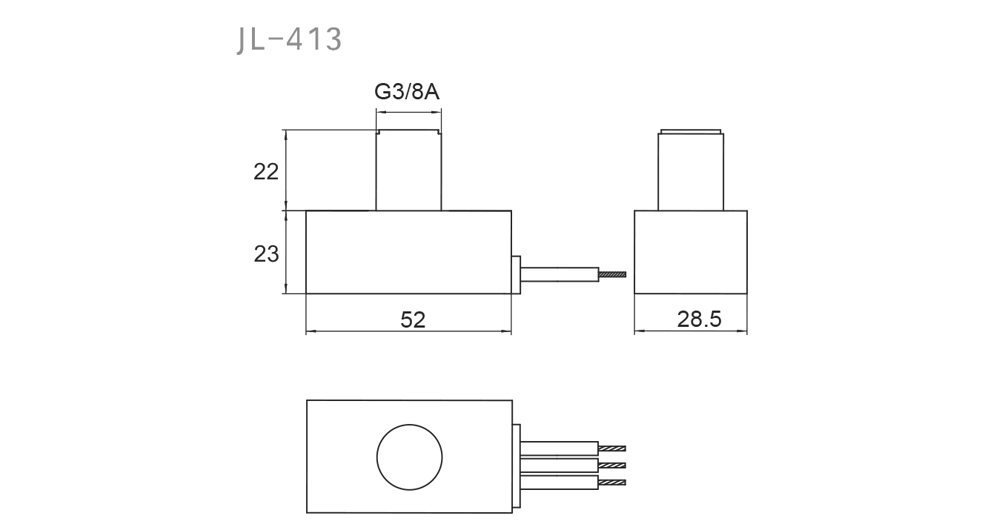

JL-413C (M) Standard Edition (Surge Proof Version) Installation
