Name: JL-302 E26/E27 Bulb Socket Type
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-302 E26/E27 Bulb Socket Type Overview:

The JL-302 series of bulb holder controls is suitable for automatically regulating passage and entrance lighting in response to the surrounding light intensity. Based on a thermal switch mechanism, this product incorporates a time delay of over 30 seconds to prevent unnecessary toggling caused by brief light sources such as spotlights or lightning at night. Additionally, a temperature compensation system ensures stable operation across varying ambient temperatures.

JL-302 E26/E27 Bulb Socket Type Specifications

Model No.	JL-302A	JL-302B
Rated Voltage	120VAC	240VAC
Rated Frequency	60Hz	50/60Hz
Rated Loading	150W Tungsten
Power Consumption	1.5W Max.
Operate Levels	10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
UL File number	E346727	—
Adapter	E26	E27
Failure Mode	Fail-On
Sunshade sleeve	●
Certifications

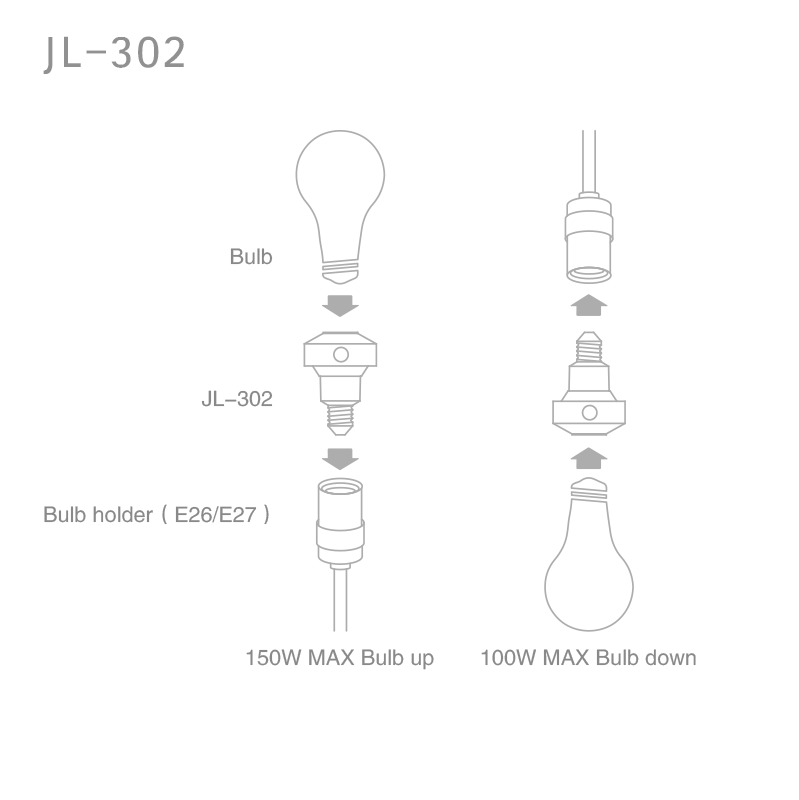

JL-302 E26/E27 Bulb Socket Type Installation

Disconnect power.
Screw bulb off.
Screw the unit into bulb holder completely.
Screw bulb into the bulb holder of the unit.
Connect power. Turn lamp switch ON.
Do not install the switch with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.
Avoid to use the unit in an opaque or reflective glass lantern, as well as use in a wet place.

JL-302 E26/E27 Bulb Socket Type Installation
