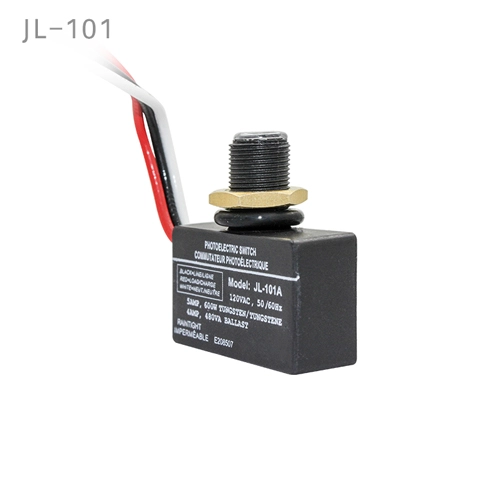

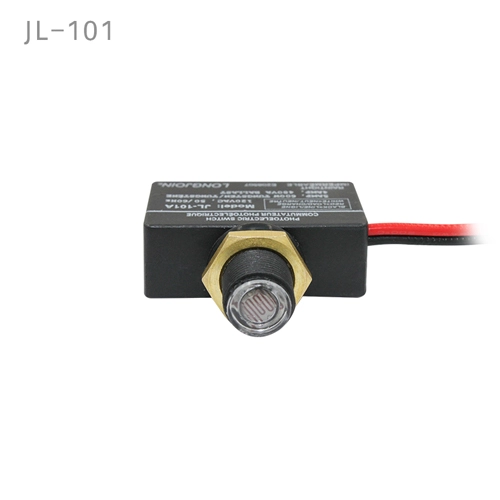

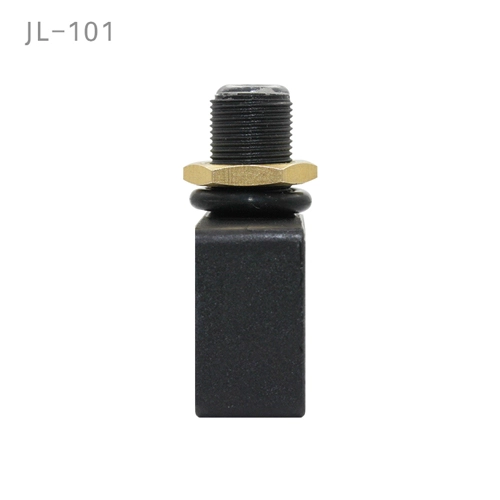

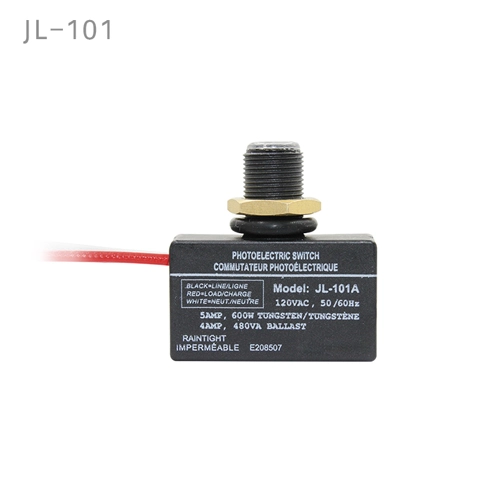

JL-101 Sub-Miniature Button Type

Direct Wire-In Thermal Photocontrol Raintight

JL-101 Sub-miniature Button Type Features:

Time Delay 20~120s
Ambient Temperature： -20℃ ~ +70℃
PET enclosure (UL94 V-0)
Copper alloy lock nut

JL-101 Sub-miniature Button Type Overview:

The JL-101 photocontrol is designed to manage the illumination of passages and doorways by automatically adjusting to the surrounding light conditions. It adheres to the UL773A standard, which is specified for non-industrial lighting control photocontrols.

JL-101 Sub-miniature Button Type Overview:

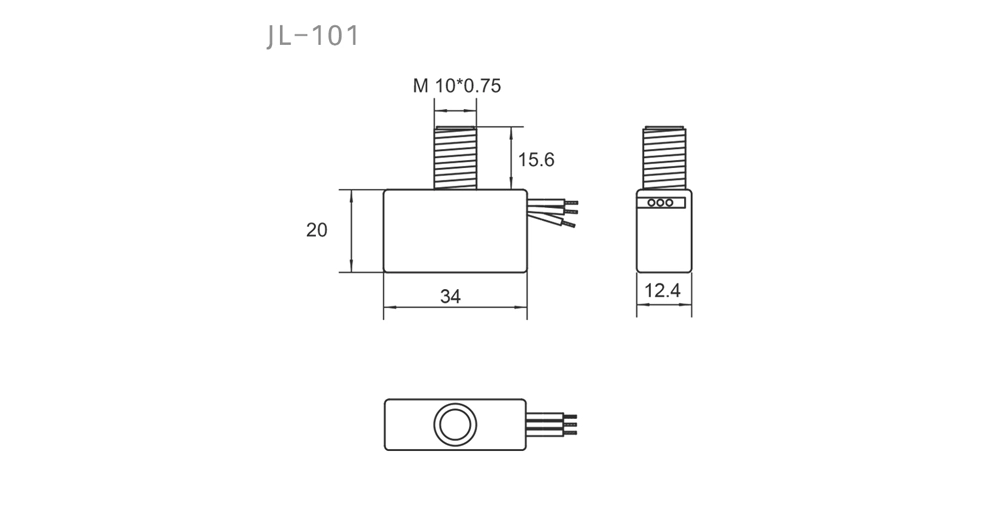

JL-101 Sub-miniature Button Type Specifications

Model No.	JL-101A
Rated Voltage	120VAC
Rated Frequency	50/60Hz
Rated Loading	600W Tungsten, 480VA Ballast, 2A e-Ballast
Power Consumption	1.5W Max.
Operate Levels	10~20Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature	-20℃ ~ +70℃
Related Humidity	96%
Fail Mode	Fail-On
Lead Wire	AWG#18, AWM1332
Rainproof Cap	Optional
Certifications

JL-101 Sub-Miniature Button Type Installation

Disconnect power, remove junction box cover, place the SWITCH in knockout hole and fasten with lock-nut.

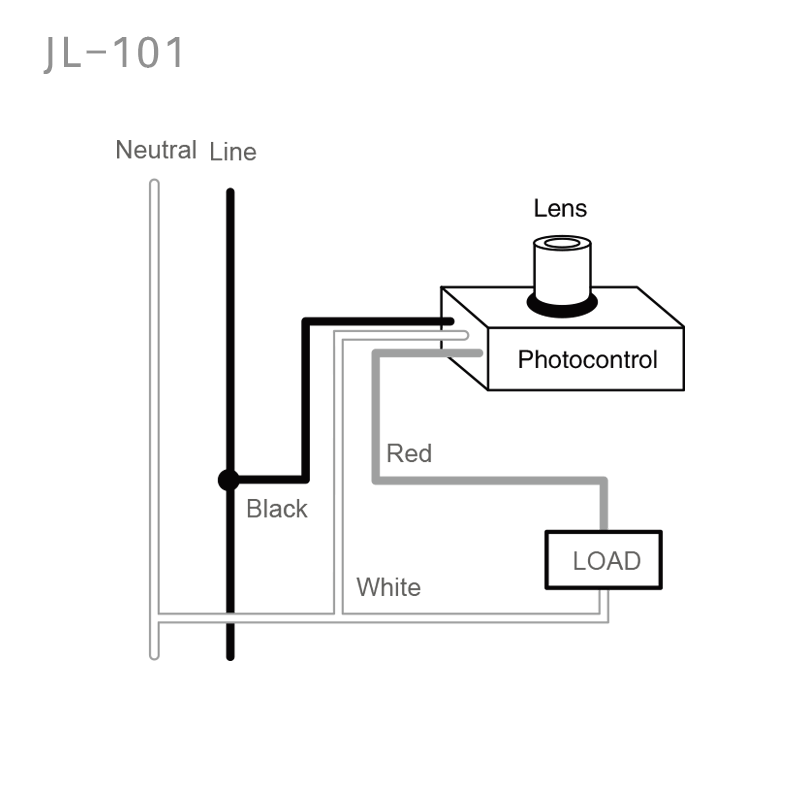

Wire according to the diagram:

JL-101 Sub-Miniature Button Type Installation

Do not install the switch with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.
