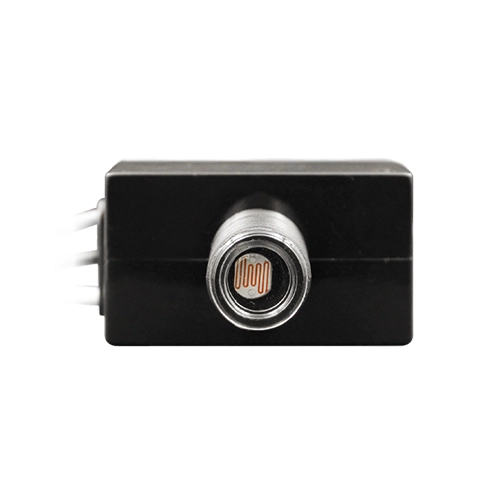

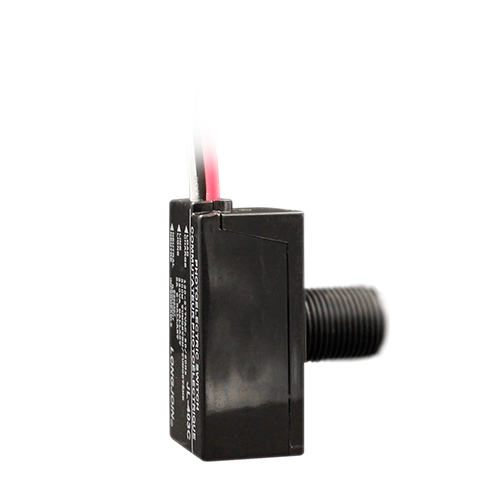

Name: JL-403C (M) Standard Edition (Surge Proof Version)
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-403C (M) Standard Edition (Surge Proof Version) Overview:

The JL-403C series of wired bayonet-style electronic photocontrol switches are designed for the autonomous control of garden, passage, and entrance lighting based on ambient natural light levels. The product caters to nearly all power supply conditions, offering a broader voltage range for customer applications. Engineered with electronic circuitry, it features faster response times, ease of installation for testing, and a 3-10 second time-delay function to prevent redundant operation at night due to spotlights or lightning. This product is certified by UL in the United States and meets the UL773A standard for non-industrial photoelectric switches for lighting control. It also complies with FCC regulations. *The M version is a surge protection model.

JL-403C (M) Standard Edition (Surge Proof Version) Specifications

Model No.	JL-403C	JL-403CM	JL-403CW
Rated Voltage	120~277VAC
Available Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Rated Loading	500W Tungsten, 850VA Ballast 5A e-Ballast
Power Consumption	1.8W@120VAC
Operate Levels	10~20Lx Turn-On / 30~80Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Leads	AWG #18, AWM 1015 4" min
Wire Color Coding	US
Failure Mode	Fail-Off
Rainproof Cap	Optional
Certifications

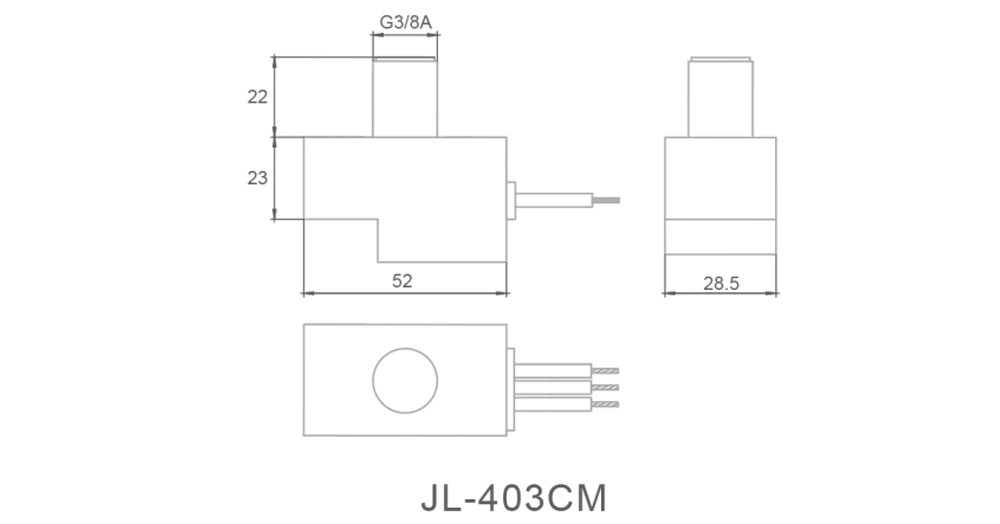

JL-403C (M) Standard Edition (Surge Proof Version) Installation

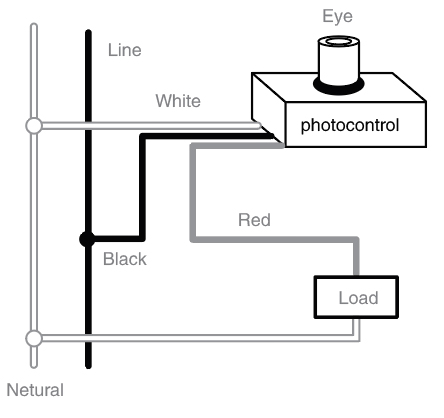

Disconnect power, remove junction box cover, place the photocontrol through knockout hole and fasten with locknut. Wire according to the diagram in below.

Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

JL-403C (M) Standard Edition (Surge Proof Version) Installation
