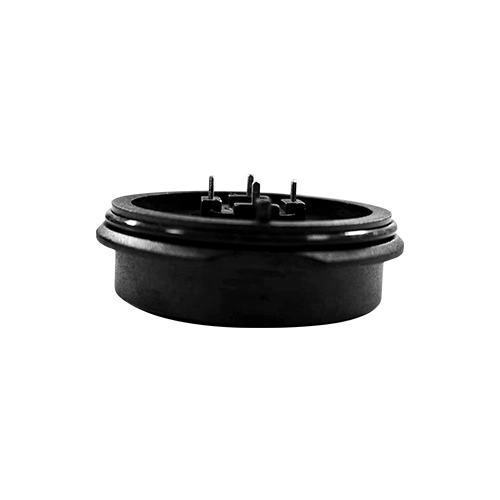

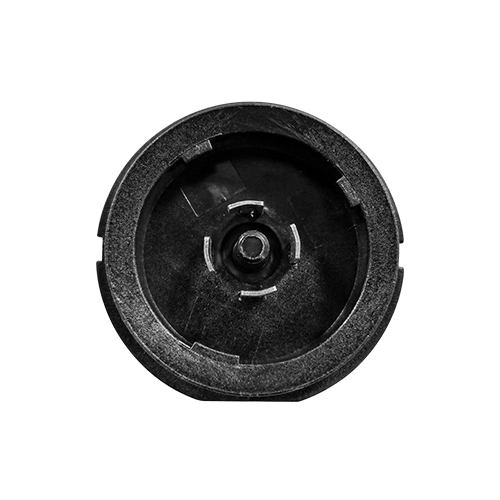

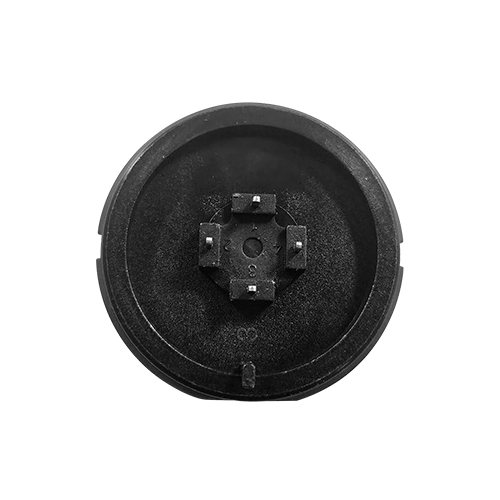

JL-701J Zhaga Interface Light Controller Cover

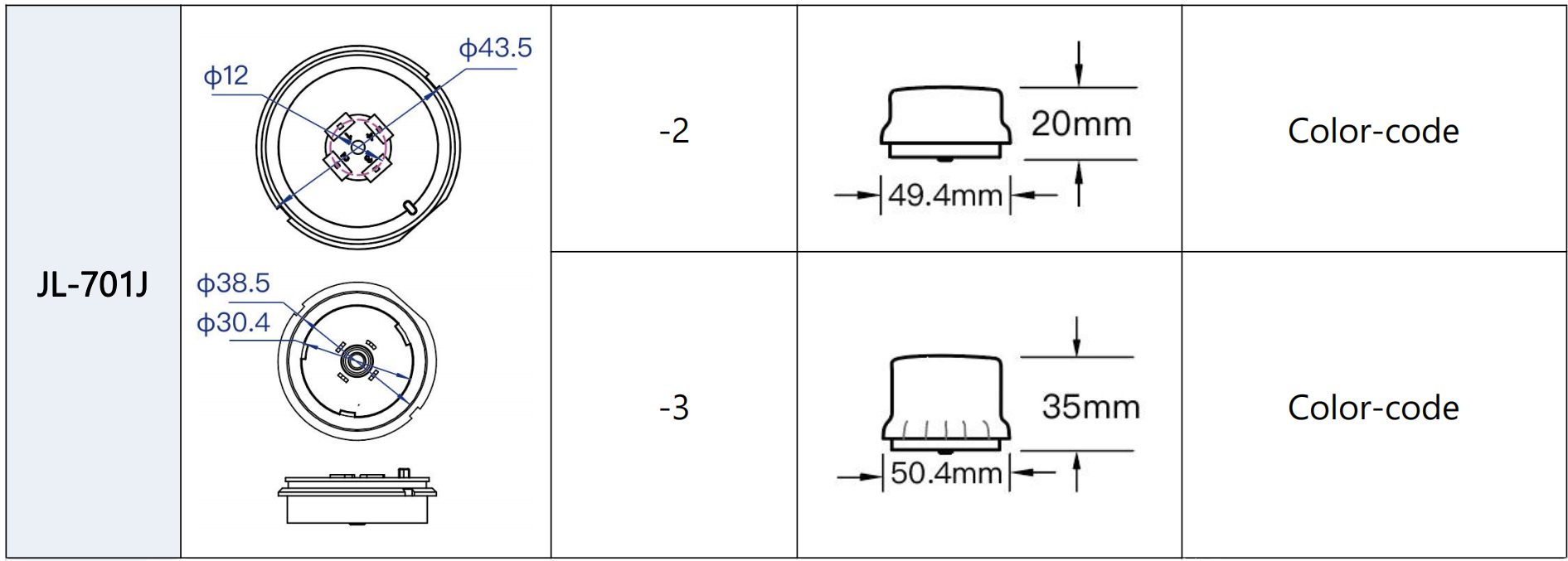

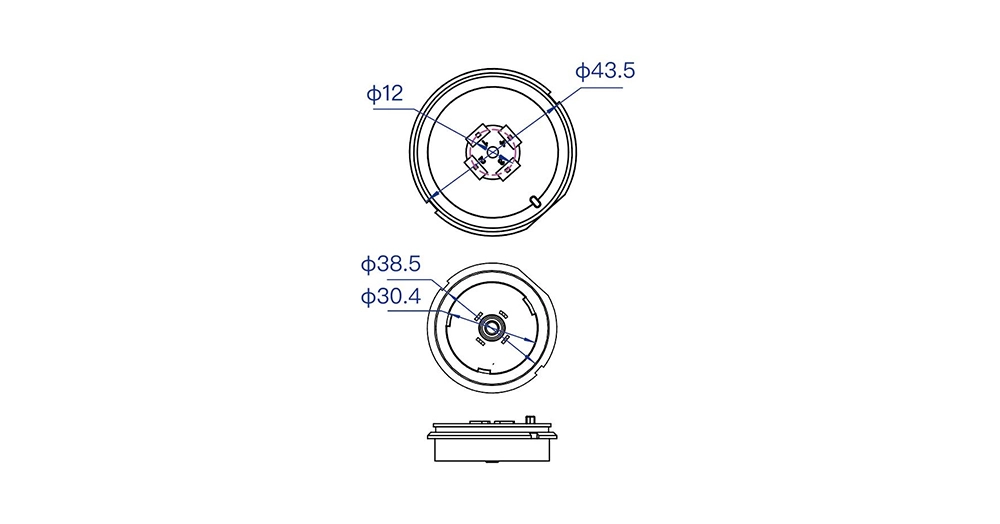

Diameter 43.5mm Pin 12mm Height 12.5mm

JL-701J Zhaga Interface Light Controller Cover Featrues:

ZHAGA BOOK18 interface standard
Ultra low cost
Compact size, suitable for installation to various lamps
1.5mA ultra low working current
Anti false triggering design of interference light source
No load power consumption ≤ 0.12W
Environmental illumination ratio of switch action: 1:4
Power on: full on by default, 5S self-test
Protection grade: up to IP66

JL-701J Zhaga Interface Light Controller Cover Overview:

The controller base is designed with a 700 interface, primarily used for lighting energy-saving control and various built-in electronic product controller products. The power connection part uses the internationally standardized Zhaga plug to ensure convenient and safe connections. For signal connections, high-quality tin-plated copper strips are employed to guarantee stable signal transmission, thereby achieving intelligent control of lighting equipment.

JL-701J Zhaga Interface Light Controller Cover Specifications

Product number	JL-7XXJX
Interface rated voltage	24VDC
Interface rated current	1.5A MAX
Working humidity	96%
Operating temperature	-40°C ~ +70 °C
IP	IP66（Reachable after assembly）
