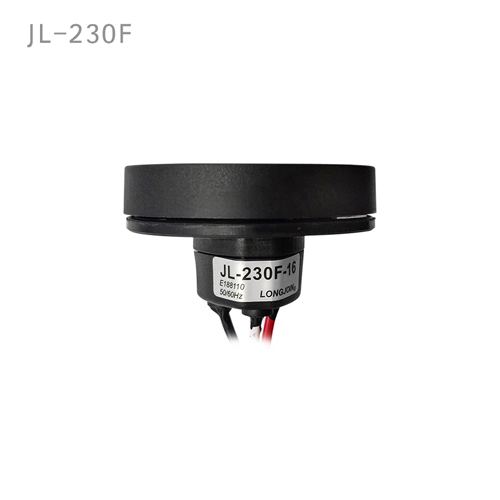

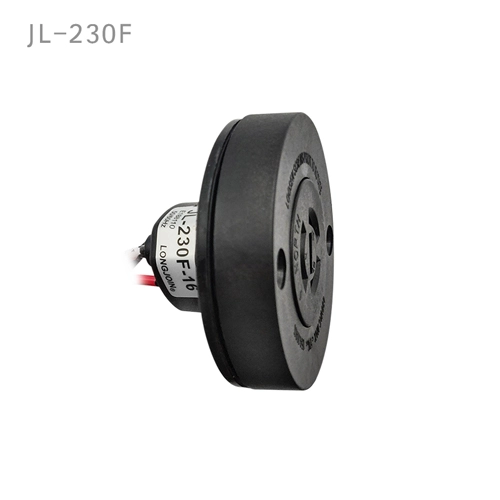

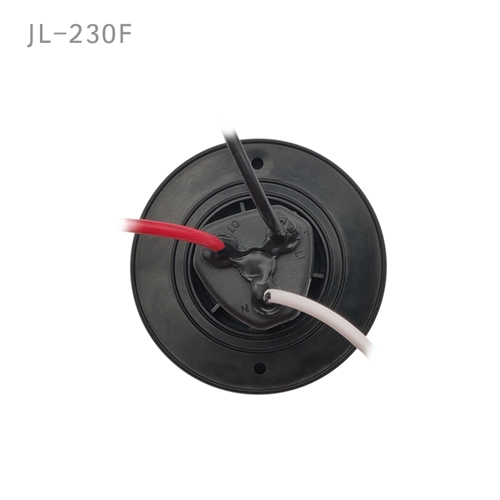

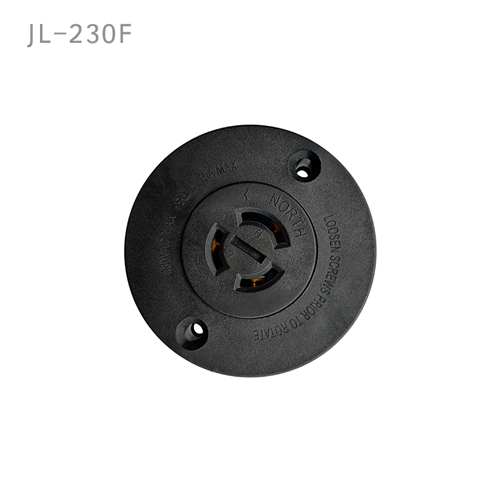

Name: JL-230F Built-In 3-Pin NEMA Socket
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-230F Built-In 3-Pin NEMA Socket Overview:

The JL-230 series of twist-lock photocell switch sockets is designed for outdoor lighting fixtures, intended for the power management of lighting fixtures by accepting twist-lock photocells/switches. This series provides three locking terminal tabs. Additionally, the JL-230F model offers enhanced protection against water ingress through the socket interface. It also features an anti-rotation function. The series meets the standards for insert and twist-lock photocells as required by ANSI C136.10 and ANSI/UL773 for area lighting.

JL-230F Built-In 3-Pin NEMA Socket Specifications

Model No.	JL-230	JL-230F
Rated Voltage	480VAC Max
Rated Frequency	50/60Hz
Lead	16AWG,14AWG 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Load Rating	15 A
Holding Cover	Nylon	PBT
Receptacle	Phenolic (Bakelite)	PBT
Contact	H62 Brass
Gasket	Silicon Rubber
Cable Line	●	-
IP65	●
Certifications	ANSI C136.10-2010
