Name: JL-245CG NEMA Interface
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-245CG NEMA Interface Overview:

The JL-245CG photocontrol is suitable for both standalone control applications and system control scenarios, including settings like streets, trade shows, educational institutions, retail centers, supermarkets, industrial facilities, and public parks. It is equipped with an LTE-Cat1 wireless communication module, enabling it to be remotely managed through an intelligent IoT management system.

JL-245CG NEMA Interface Specifications

Model No.	JL-245CG
Rated Voltage	120~277VAC
Applicable Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Dimming Output	0~10VDC
Wireless Communication（up）	LTE-Cat1
Wireless Communication（down）	LTE-Cat1
Spectral Acquisition Range	350~1100nm; Peak wavelength 590nm
Rated Loading	1000W Tungsten ,1000VA Ballast , 8A@120VAC/5A@208-277VAC e-Ballast
Operate Levels	Turn-On＜100Lx，Turn-Off＞150Lx / per client request
Power Consumption	1.2W static，2.4W dynamic
Ambient Temperature	-40℃~70℃
Related Humidity	96%
Fail Mode	Fail-On
Shell material	PC
Surge protection level	6KV/3KA differential mode
IP level	IP67
Factory Settings	Remote control+Adaptive mode
Certifications
Criterion	IEC61000-4-5;IEC61000-4-2;IEC61000-4-3; IEC61000-4-6;GB/T 17743-2017;IEC61000-4-4; IEC61000-4-11;IEC61000-3-2;GB/T2423.10-2008;UL94-V0;

JL-245CG NEMA Interface Installation

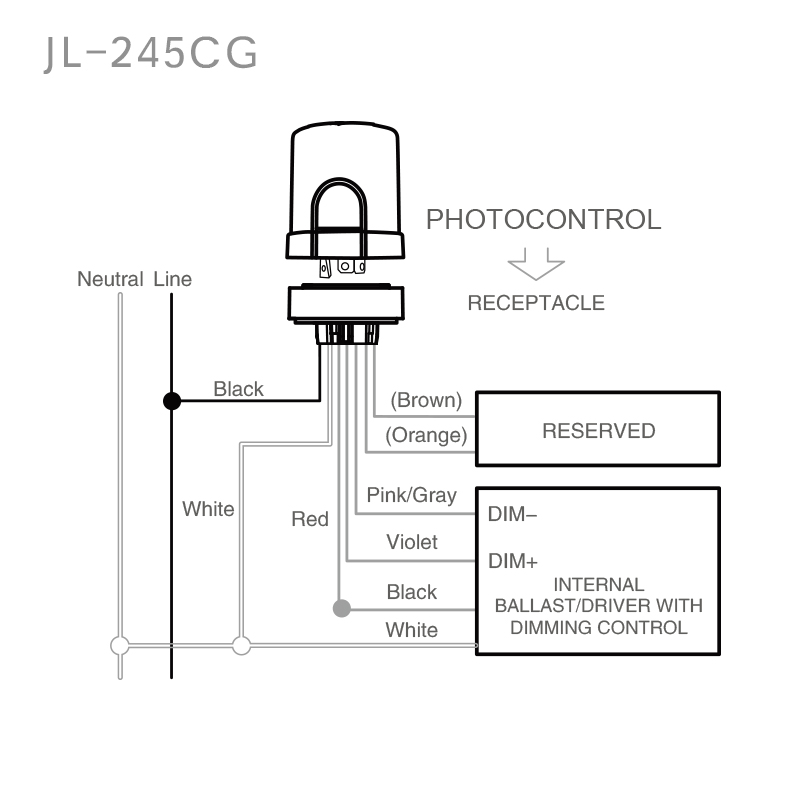

The interface of the product itself has been mistake-proof designed, just tighten the photocontrol directly to the rotatable/fixed base, as shown in Figure clockwise after insertion.
