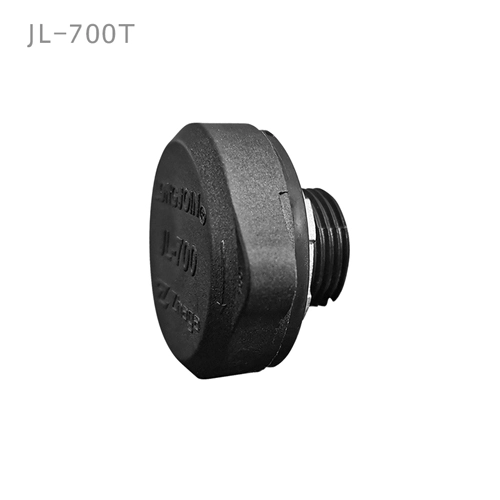

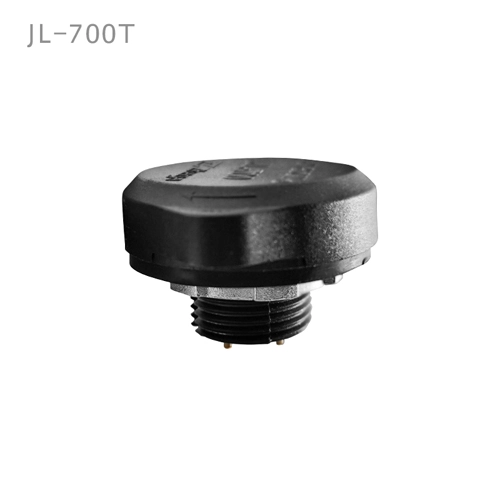

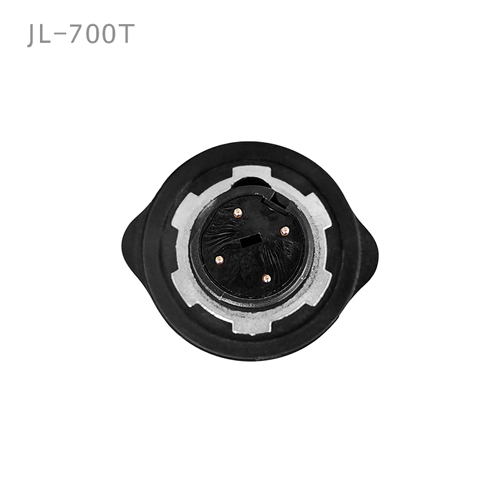

JL-700T Spring Needle Plate

Zhaga Book-18 Receptacle

JL-700T Spring Needle Plate Features:

  • Standardized interface defined in Zhaga Book-18

  • Compact size allowing greater flexibility in luminaire design

  • Advanced sealing to achieve IP66 with no mounting screws

  • Scalable solution allows use of Ø40mm photocell and Ø80mm LEX-M in a central management system with the same connection interface

  • Flexible mounting position, upwards, downwards and sideways facing

  • Integrated single gasket that seals to both luminaire and module that minimizes assembling time

JL-700T Spring Needle Plate Overview:

Jl-700T locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R、Z-LEX-C) and has passed relevant certification, which is convenient for the development and installation of road lighting, regional lighting or commercial and residential lighting, such as street lights, industrial and mining lights, corridor lights, wall lights, etc.
JL-700T Spring Needle Plate Overview:

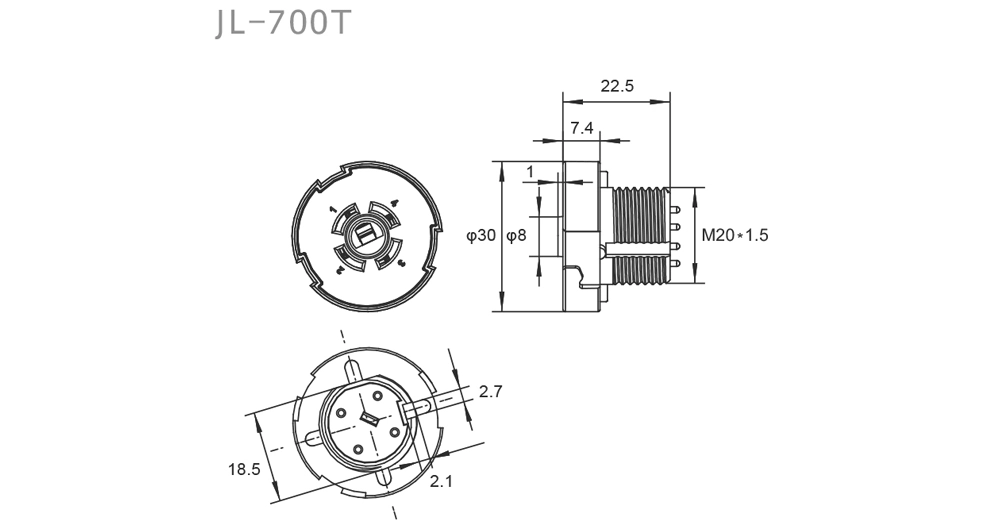

JL-700T Spring Needle Plate Specifications

Model No.

JL-700T

Rated Voltage

24VDC

Power Consumption

1.5A MAX

Related Humidity

96%

Ambient Temperature

-40°C ~ +70 °C

IP

IP66

Certifications

JL-700T Spring Needle PlateJL-700T Spring Needle PlateJL-700T Spring Needle PlateJL-700T Spring Needle PlateJL-700T Spring Needle PlateJL-700T Spring Needle PlateJL-700T Spring Needle Plate


JL-700T Spring Needle Plate Installation

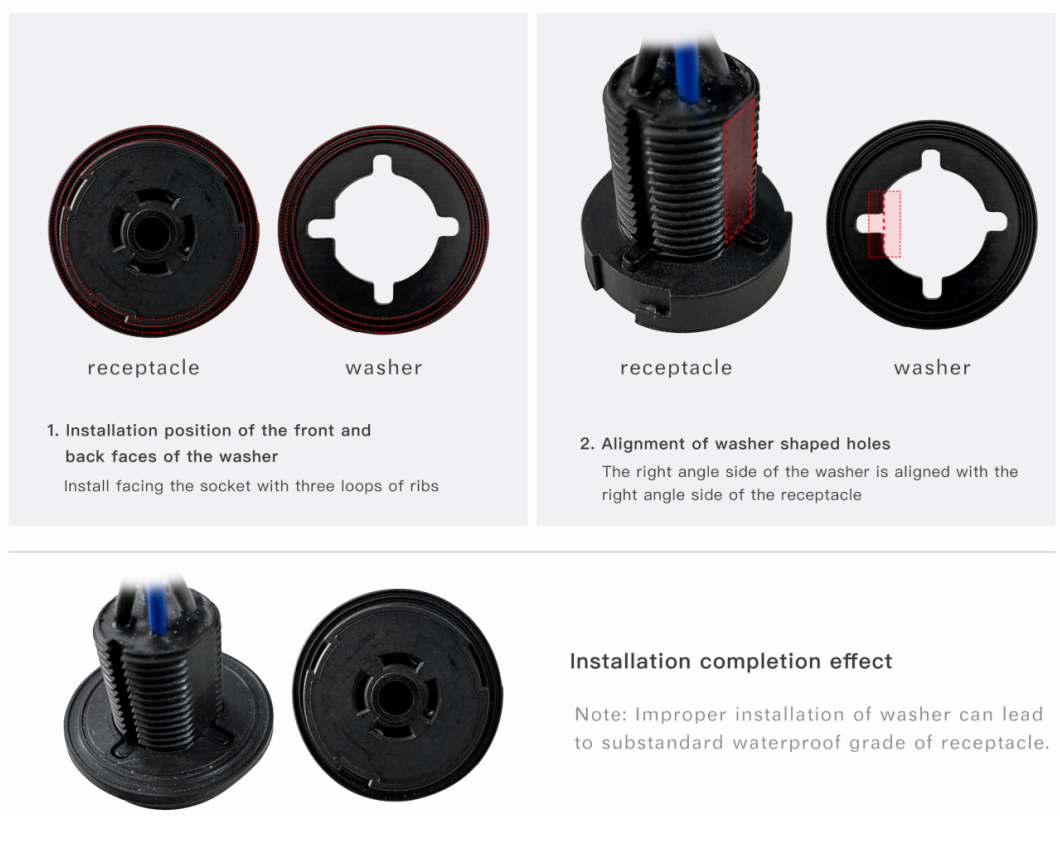

Precautions for installation of gaskets for Zhaga socket products

JL-700T Spring Needle Plate Installation
