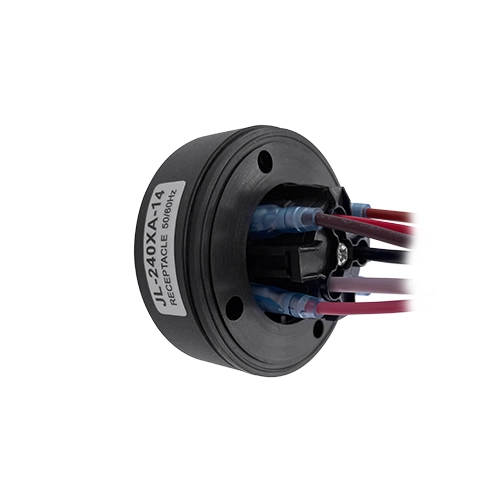

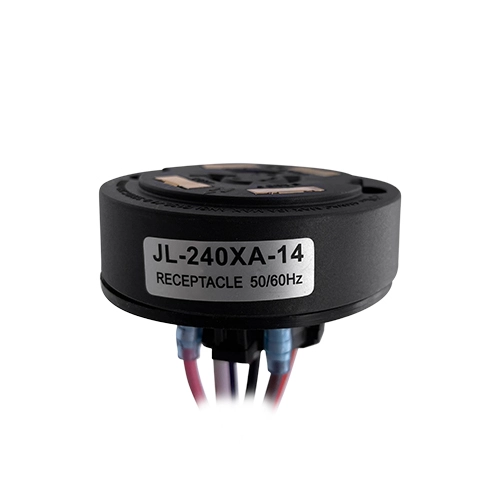

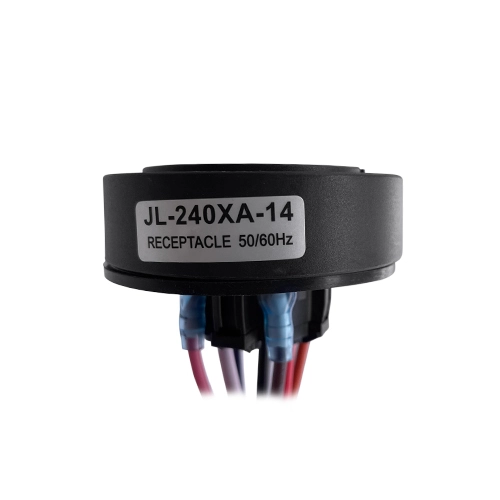

Name: JL-240XA Built-In 7-Pin NEMA Socket
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-240XA Built-In 7-Pin NEMA Socket Overview:

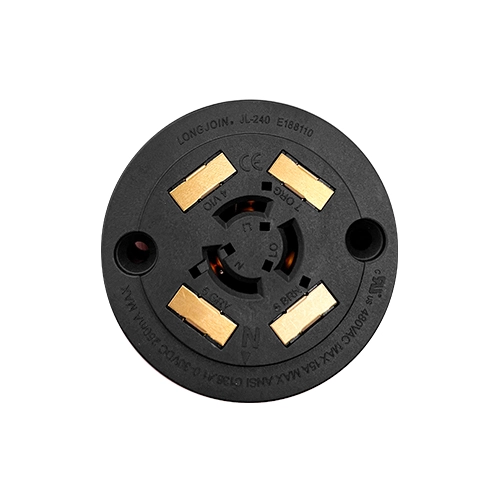

The JL-240XA twist-lock photocell socket, with a separate gasket design, is crafted for outdoor lighting fixtures and is intended for accepting twist-lock photocells to manage LED lighting fixtures. The product features four gold-plated contact tabs on the top surface, which are compatible with the spring contacts of twist-lock photocells (ANSI C136.41), and supplies four signal wires on the back. This product meets the standards for insert and twist-lock photocells as required by ANSI C136.10, ANSI C136.41, and ANSI/UL773 for area lighting.

JL-240XA Built-In 7-Pin NEMA Socket Specifications

Model No.	JL-240X/TX
Applicable Volt Range	0~480VAC
Rated Frequency	50/60Hz
Load Rating	15A
Signal Control	0-30 VDC, 250 mA Max
Lead	16AWG,14AWG 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Outdoor Wiring Cable	●
Certifications	ANSI C136.41-2013
