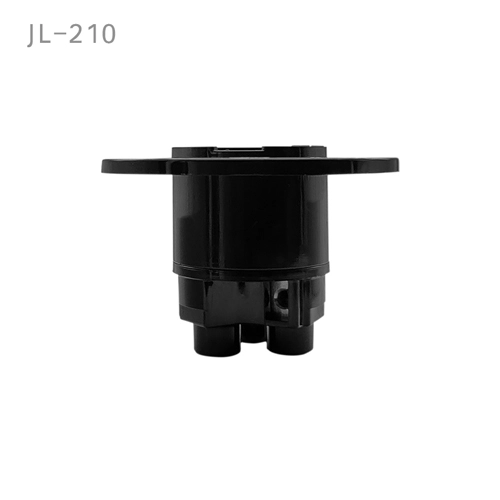

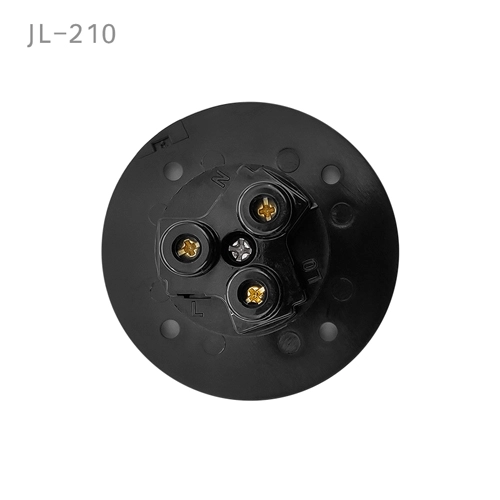

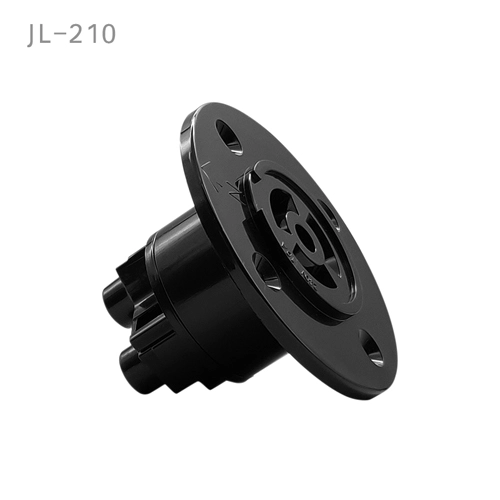

JL-210 Built-In 3-Pin NEMA Socket

Name: JL-210 Built-In 3-Pin NEMA Socket
Brand: Shanghai Long-Join Intelligent Technology Inc.

Photocontrol Receptacle North-Mark UK

The JL-210 series PECU outlets are engineered for lanterns that lack a BS5972 socket. The JL-210 model is intended for incorporation during lantern assembly, while the JL-210K model is designed for standalone wall mounting.

JL-210 Built-In 3-Pin NEMA Socket Specifications

Model No.	JL-210
Power Volt Range	0~480VAC
Rated Frequency	50/60Hz
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Receptacle	PC
Certifications

JL-210 Built-In 3-Pin NEMA Socket Installation

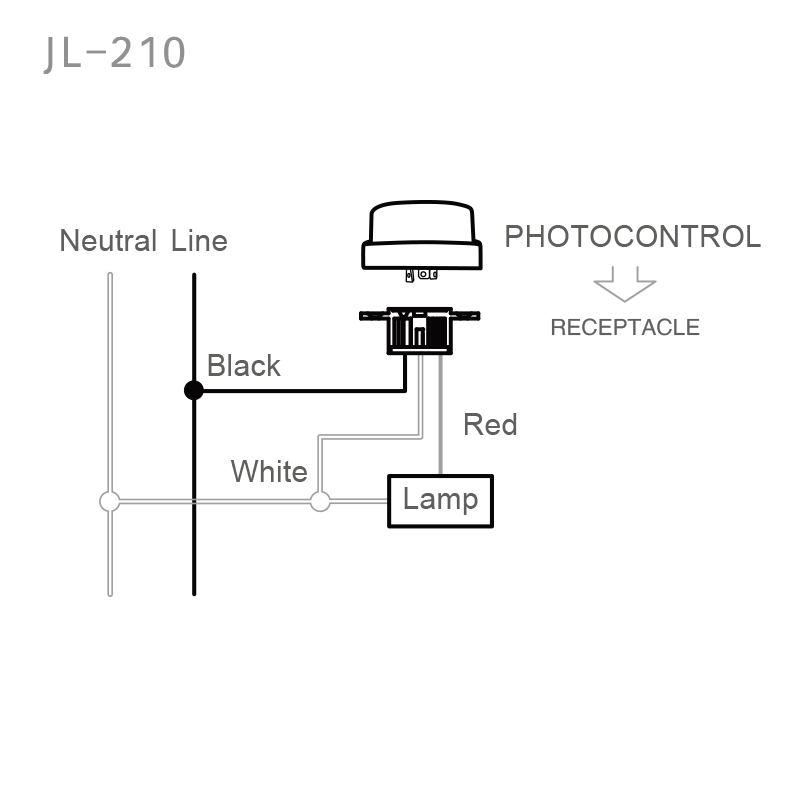

Disconnect power; wire the receptacle according to the diagram in below.

JL-210 Built-In 3-Pin NEMA Socket Installation

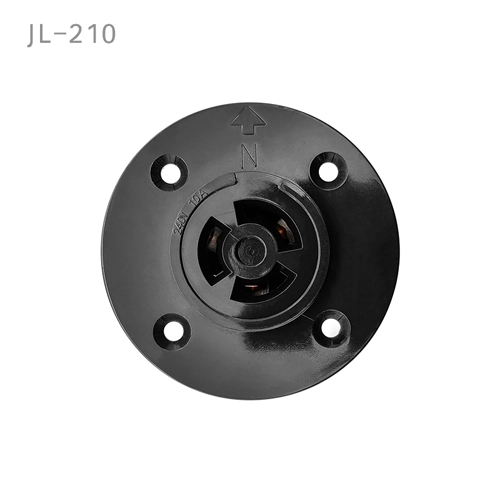

An arrow indicating NORTH on the top of the receptacle is used to assist correct direction.

Adjust the receptacle position if necessary.
