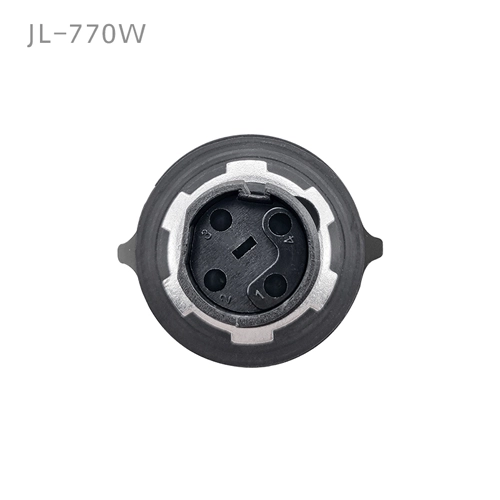

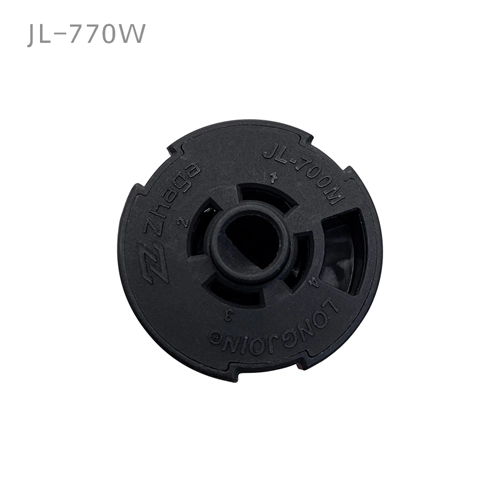

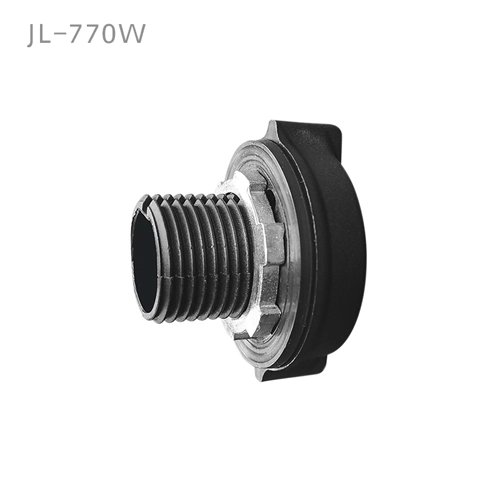

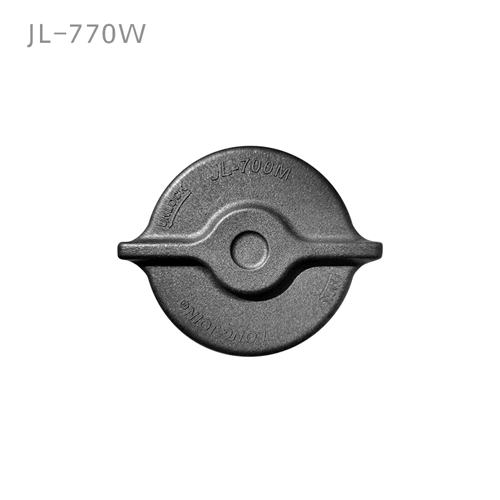

JL-770W Leadless Version

0-10V Dimming, Zhaga Book-18 Receptacle

JL-770W Leadless Version Features:

  • Contact rating: 1.5A, 30VDC (typical 24V)

  • Meet 10kV common mode surge test requirements

  • Hot pluggable

  • Quadrupole contact

  • Rated impulse voltage: 0.8kv

  • Insulation protection: Class II

  • Temperature range: - 40 to 70°C

  • Before installing lamps, the main power supply should be turned off

JL-770W Leadless Version Overview:

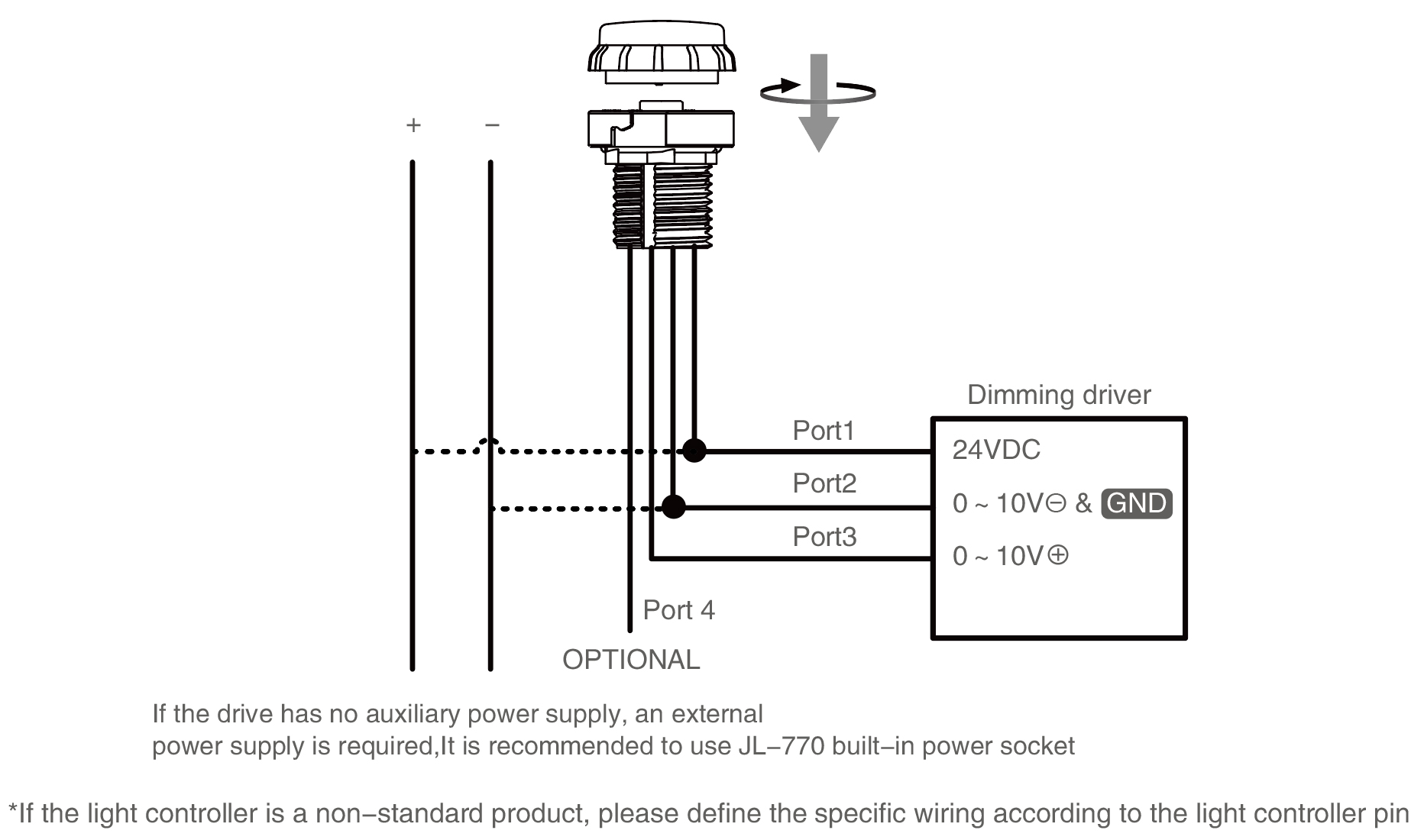

Similar to Zhaga Book-18 standard, JL-770W socket is suitable for 0-10V dimming scheme, which is convenient for developing standard equipment suitable for road lighting, regional lighting or residential lighting. According to the equipment arrangement, these equipment can adopt monitoring, communication, control and other functions based on 0-10V dimming.
JL-770W Leadless Version Overview:

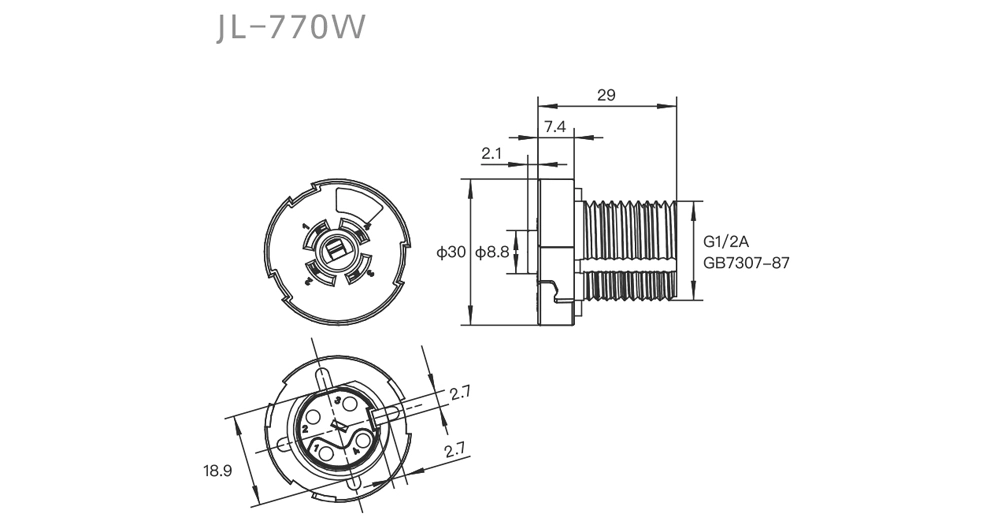

JL-770W Leadless Version Specifications

Model No.

JL-770W

Rated Voltage

24VDC

Power Consumption

1.5A MAX

Related Humidity

-40°C ~ +70 °C

Ambient Temperature

96%

Wires

20~22AWG, Strip the head 9 ~ 11mm and tin it

IP

IP66

Certifications

JL-770W Leadless VersionJL-770W Leadless VersionJL-770W Leadless VersionJL-770W Leadless VersionJL-770W Leadless VersionJL-770W Leadless Version

JL-770W Leadless Version Installation

JL-770W Leadless Version Installation

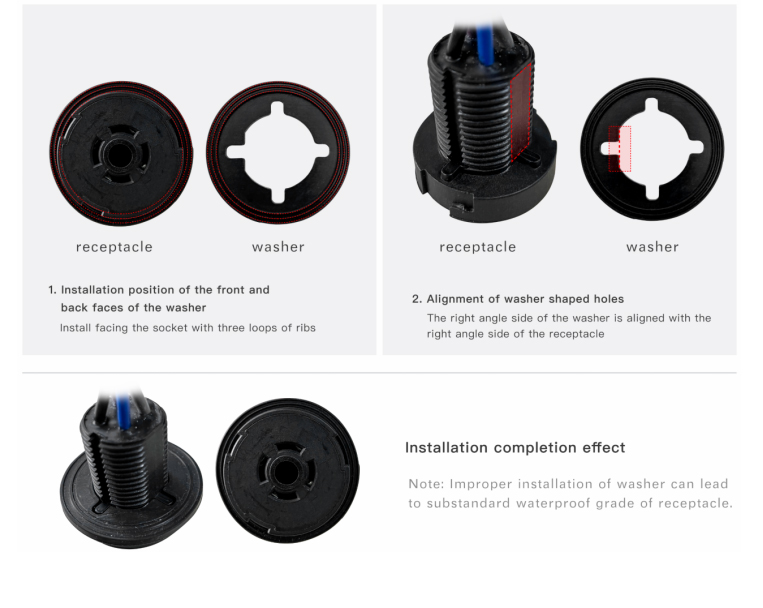

Precautions for installation of gaskets for Zhaga socket products

JL-770W Leadless Version Installation
