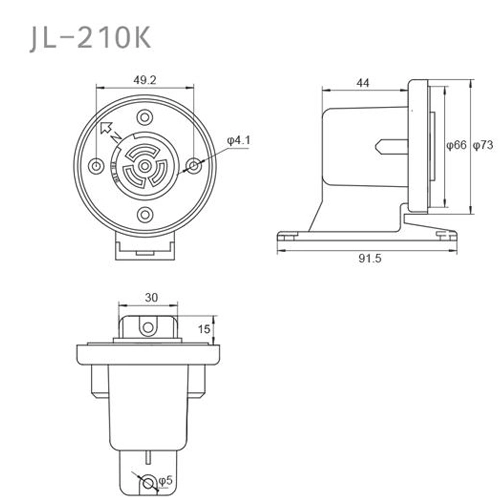

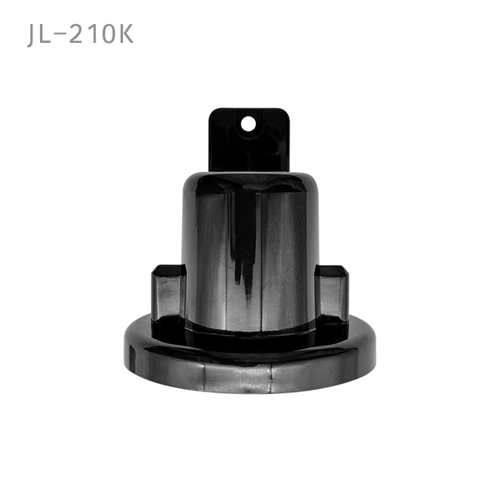

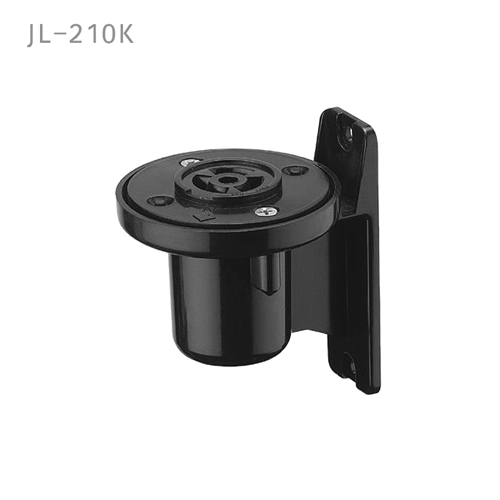

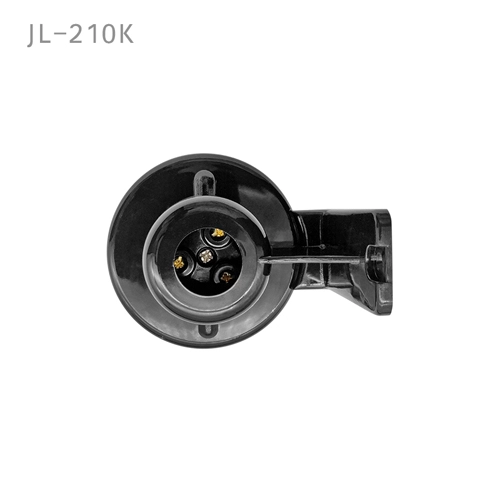

JL-210K Wall Mount 3-Pin NEMA Socket

Photocontrol Receptacle, North-Mark UK

The JL-210 PECU socket series is specifically designed for outdoor lighting fixtures that do not have a BS5972 socket. The JL-210K is used exclusively for wall mounting.

JL-210K Wall Mount 3-Pin NEMA Socket Specifications

Model No.

JL-210

Power Volt Range

0~480VAC

Rated Frequency

50/60Hz

Ambient Temperature

-40°C ~ +70°C

Related Humidity

96%

Receptacle

PC

Certifications

JL-210K Wall Mount 3-Pin NEMA SocketJL-210K Wall Mount 3-Pin NEMA Socket


JL-210K Wall Mount 3-Pin NEMA Socket Installation

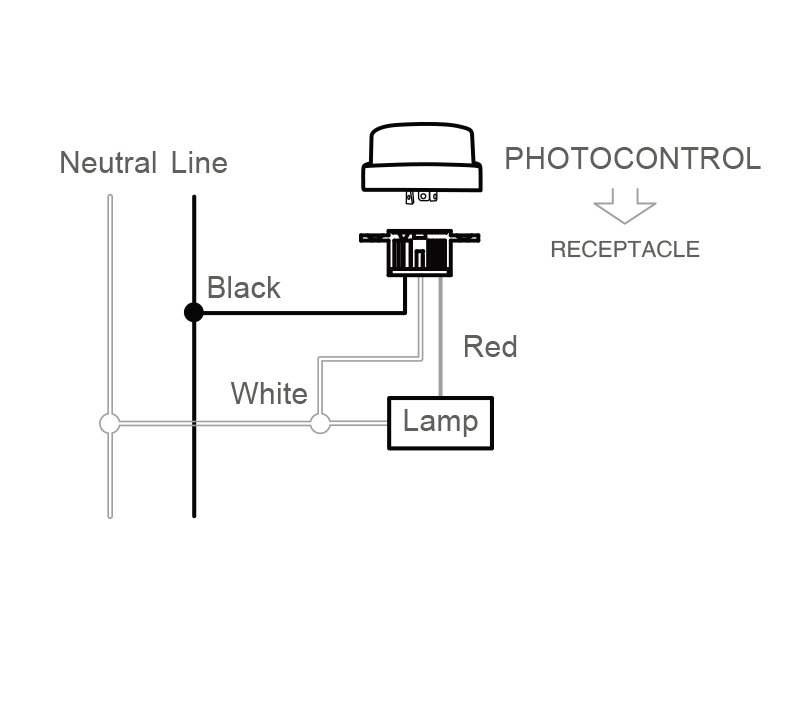

Disconnect power; wire the receptacle according to the diagram in below.

JL-210K Wall Mount 3-Pin NEMA Socket Installation

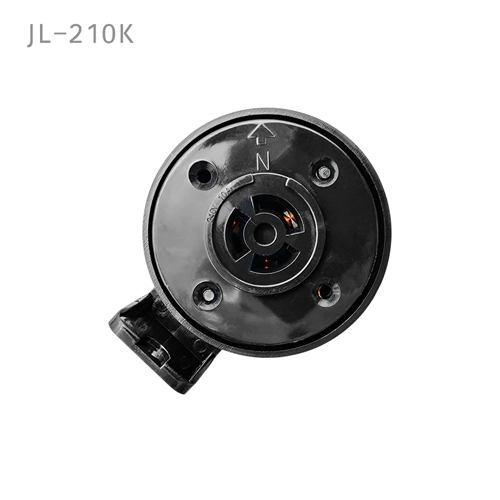

An arrow indicating NORTH on the top of the receptacle is used to assist correct direction.

Adjust the receptacle position if necessary.
