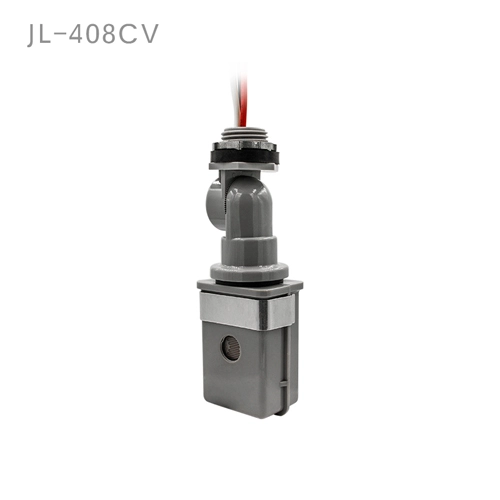

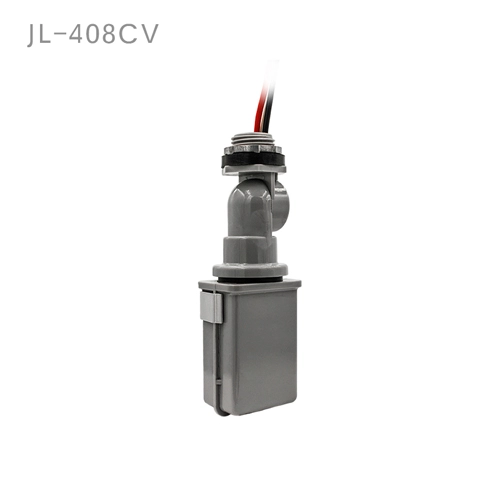

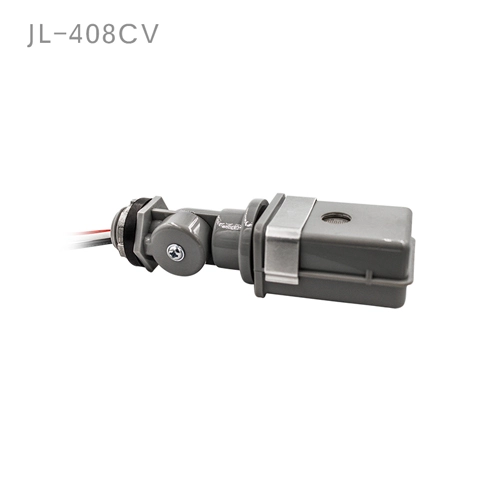

Name: JL-408C (V) Conduit Wire-In Electronic Photocontrol
Brand: Shanghai Long-Join Intelligent Technology Inc.

JL-408C (V) Conduit Wire-In Electronic Photocontrol (V Version Swiveled) Overview:

The JL-408C photocontrol is intended for the automatic regulation of street, corridor, and entrance lighting, which adjusts to the surrounding light conditions. Constructed with electronic circuitry, it facilitates a rapid response, complemented by a 3-10 second time delay for simple testing. Notably, the JL-408CV variant includes a swivel for precise alignment and a shielding bar is standard across all models, allowing for user calibration of the lighting activation thresholds. Additionally, the pre-set 3-10 second time delay helps prevent unintended triggering by headlights or nocturnal lightning flashes. This product has been approved by UL LLC and adheres to the UL773A standard for non-industrial photoelectric switches in lighting control.

JL-408C (V) Conduit Wire-In Electronic Photocontrol Specifications

Model No.	JL-408C	JL-408CV
Rated Voltage	120~277VAC
Available Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Rated Loading	500W Tungsten, 850VA Ballast 5A e-Ballast
Power Consumption	1.8W@120VAC
Operate Levels	10~20Lx Turn-On / 30~80Lx Turn-Off
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Leads	AWG #18, 105℃ 4" min
Wire Color Coding	US
Failure Mode	Fail-Off
Certifications

JL-408C (V) Conduit Wire-In Electronic Photocontrol Installation

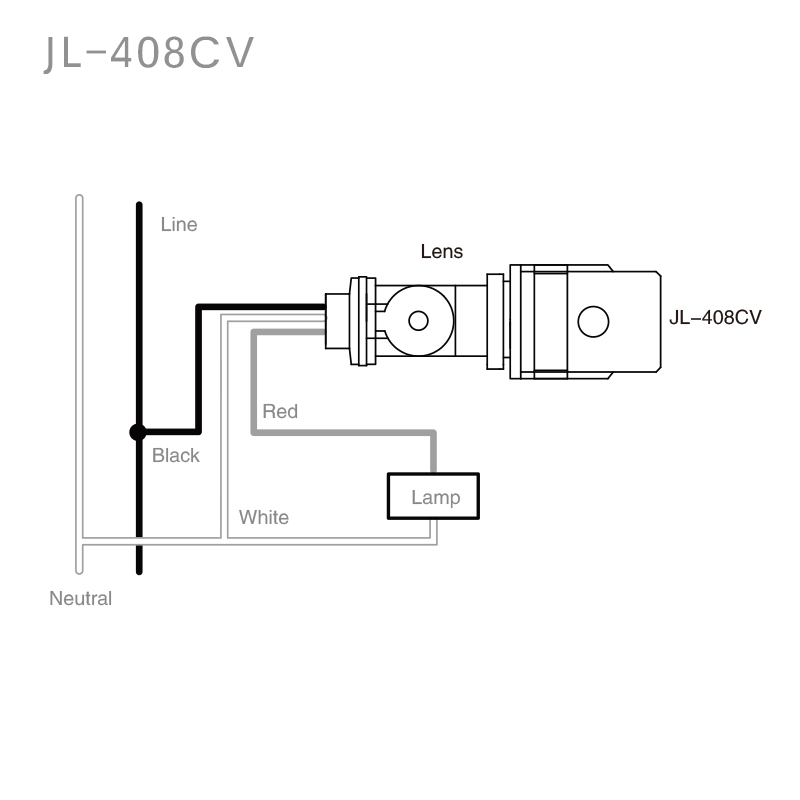

Disconnect power, remove junction box cover, place the photocontrol through knockout hole and fasten with locknut. Wire according to the diagram in below.

Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

JL-408C (V) Conduit Wire-In Electronic Photocontrol Installation
