Name: NEMA Interface Light Controller Cover
Brand: Shanghai Long-Join Intelligent Technology Inc.

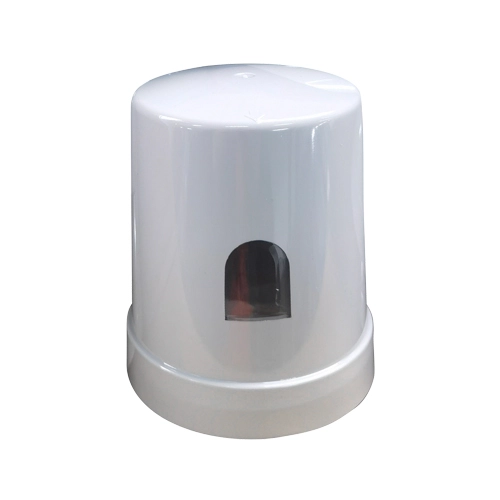

NEMA Interface Light Controller Cover Overview:

The NEMA enclosure is a high-performance protective device designed specifically for outdoor lighting photocells. Made of premium materials, it boasts excellent weather resistance and UV protection, ensuring no deformation during long-term outdoor use. The enclosure effectively prevents dust, moisture, and insects from entering, safeguarding the stable operation of the photocell. With its sleek design and variety of color options, it easily complements various types of lighting fixtures, providing a safe and reliable protective solution for your outdoor lighting.

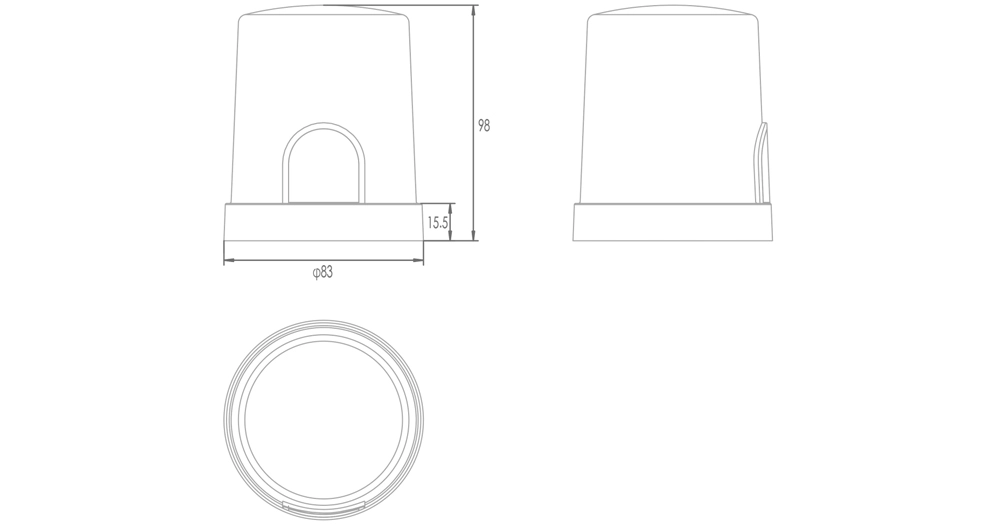

NEMA Interface Light Controller Cover Specifications

AN SI C136.41&UL773

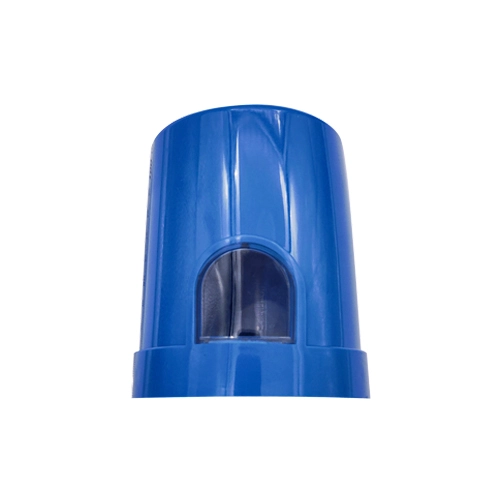

Model	YSZ677006F1C	5pin Blue controller housing kit
		7pin Blue controller housing kit

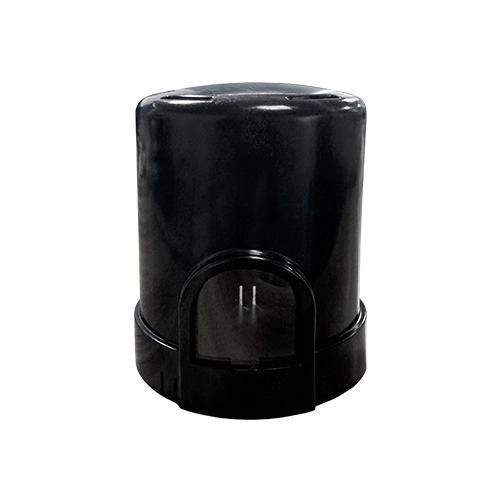

	YSZ879000H0C	5pin Black Double Shell Kit
		7pin Black Double Shell Kit
Texture of material	PC UV Resistance
Withstand voltage	＞600V
IP level	IPx5
Operating Temperature	-40℃~ + 70℃

NEMA Interface Light Controller Cover Installation

The zero line pin of a single lamp controller is larger than the line and load pins.

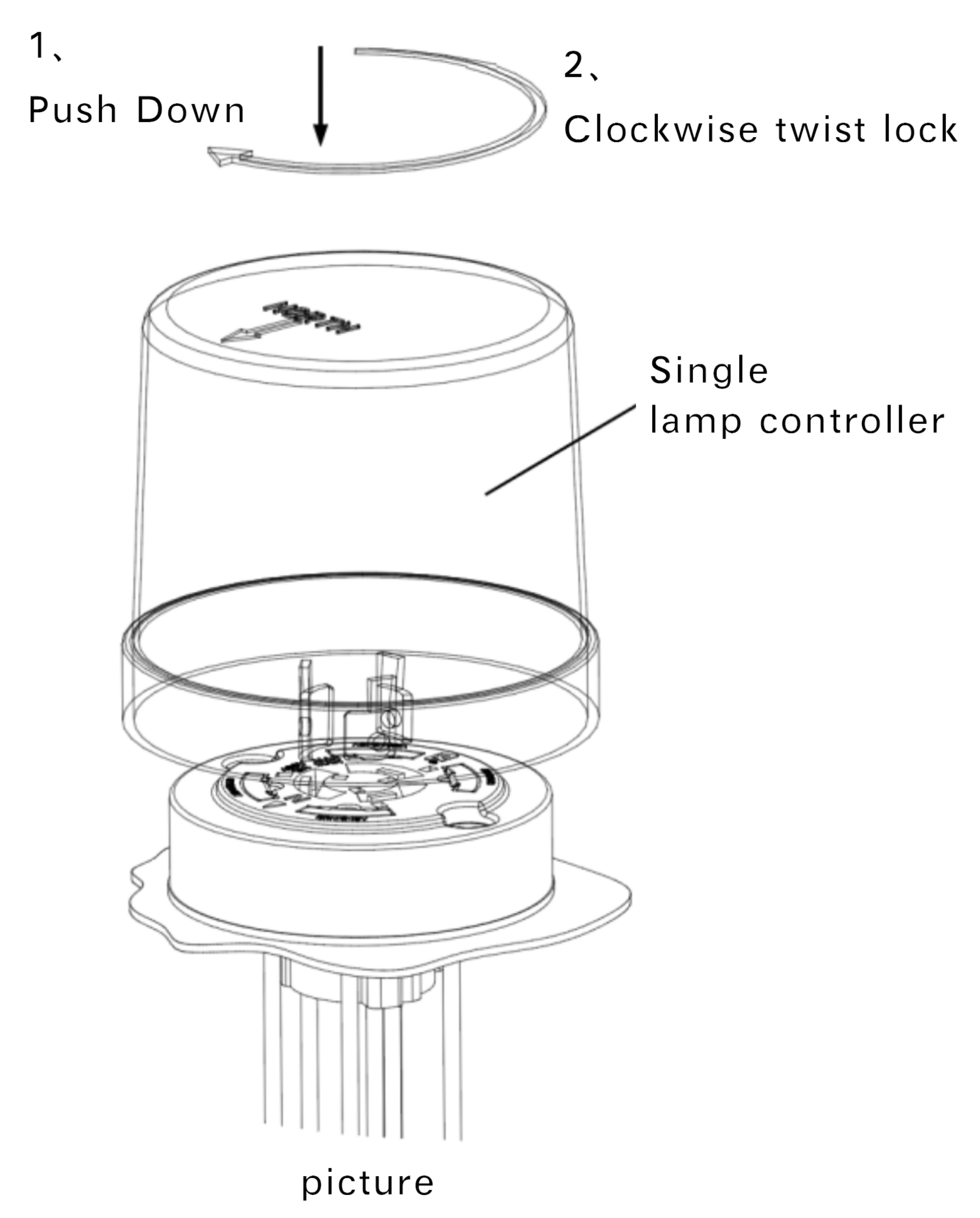

During installation, align the power pin correctly with the socket power contact circuit, and then push it downward. The bottom of the single lamp controller fits against the surface of the socket, slightly pressing the gasket. Then, by twisting the single lamp controller in a clockwise direction, the single lamp controller is locked in place to complete the installation. Please reverse the above procedure for disassembly. Refer to Illustration.

NEMA Interface Light Controller Cover Installation
