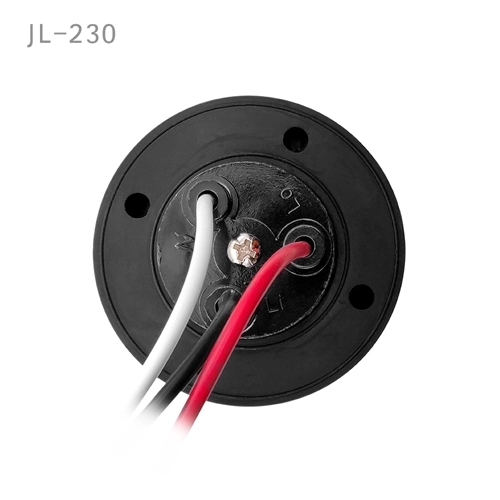

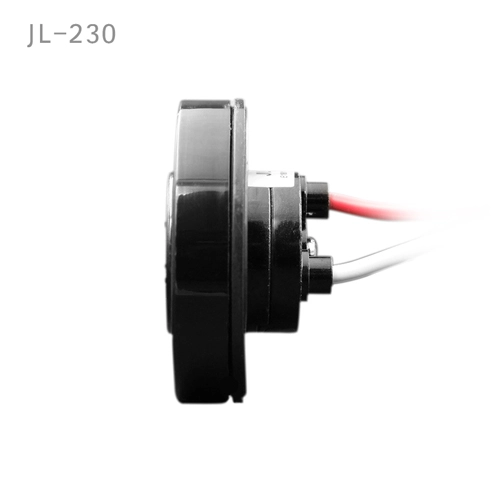

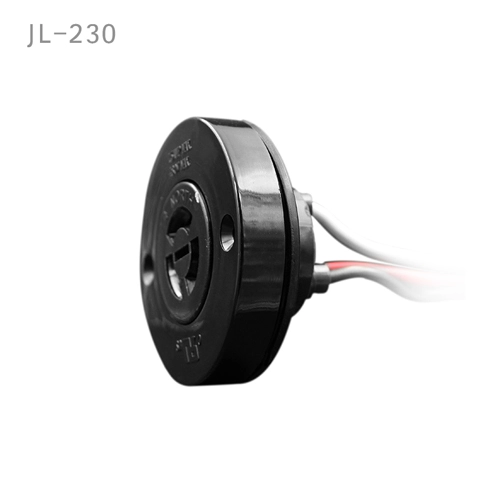

JL-230 Built-In 3-Pin NEMA Socket

Photocontrol Receptacle

JL-230 Built-In 3-Pin NEMA Socket Features:

2 or 4 screws holes available
Bakelite body for long-life service
Nylon holder prevents cracks
The screw can be loosened to find the north, making it convenient for the installation of the light controller (default north direction during installation), avoiding the decline of the light sensitive components of the light controller and extending its service life

JL-230 Built-In 3-Pin NEMA Socket Overview:

The JL-230 twist-lock photocell switch socket series is designed for outdoor lighting fixtures, used to accept twist-lock photocells/switches for the management of the lighting fixture’s power supply. This product series offers three locking terminal tabs and also features an anti-rotation function. It meets the standards required for insert and twist-lock photocells as per ANSI C136.10 and ANSI/UL773 for area lighting.

JL-230 Built-In 3-Pin NEMA Socket Overview:

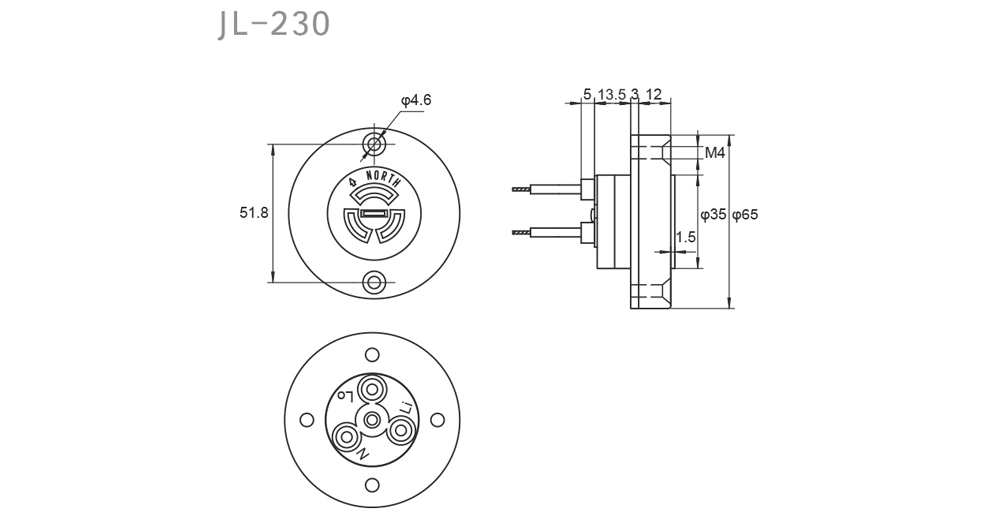

JL-230 Built-In 3-Pin NEMA Socket Specifications

Model No.	JL-230	JL-230F
Rated Voltage	480VAC Max
Rated Frequency	50/60Hz
Lead	16AWG,14AWG 6" min
Ambient Temperature	-40°C ~ +70°C
Related Humidity	96%
Load Rating	15 A
Holding Cover	Nylon	PBT
Receptacle	Phenolic (Bakelite)	PBT
Contact	H62 Brass
Gasket	Silicon Rubber
Cable Line	●	-
IP65	●
Certifications	ANSI C136.10-2010

JL-230 Built-In 3-Pin NEMA Socket Installation

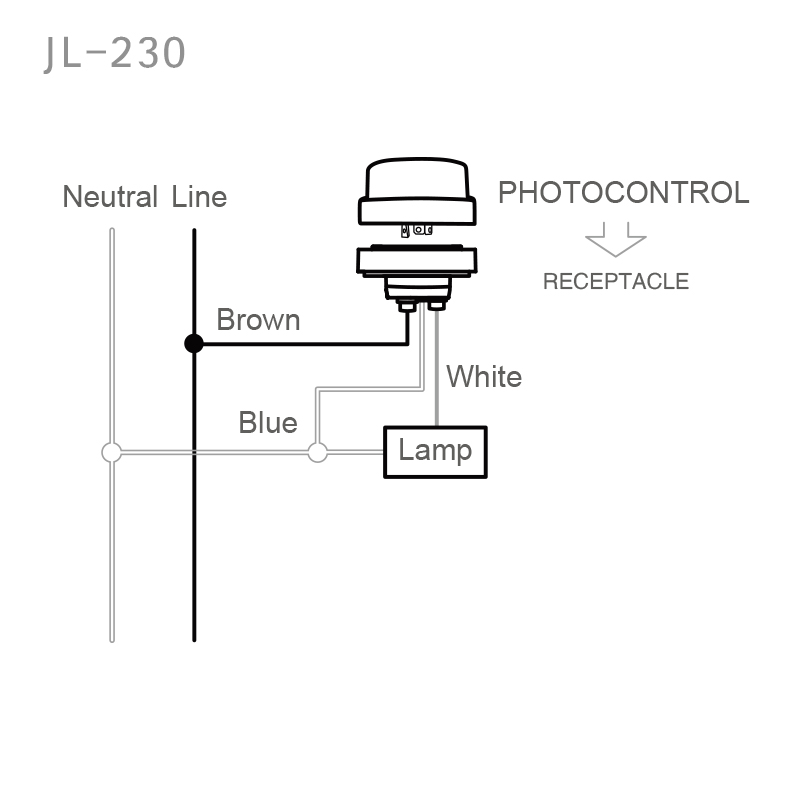

Disconnect power; wire the receptacle according to the diagram in below.

JL-230 Built-In 3-Pin NEMA Socket Installation

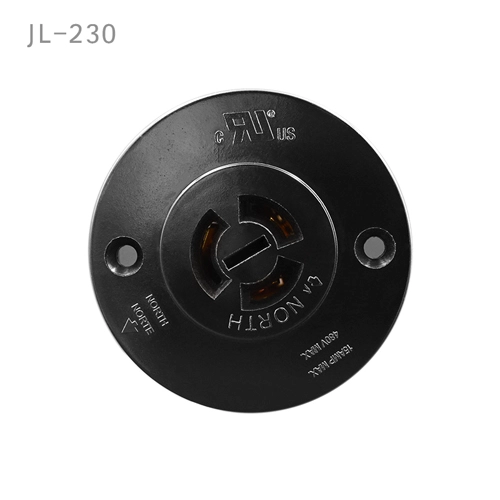

An arrow indicating NORTH on the top of the receptacle is used to assist correct orientation.

Adjust the receptacle position by loosening screws and fasten them after its redirected.
