Name: JL-320C E26 Bulb Socket Type
Brand: Shanghai Long-Join Intelligent Technology Inc.

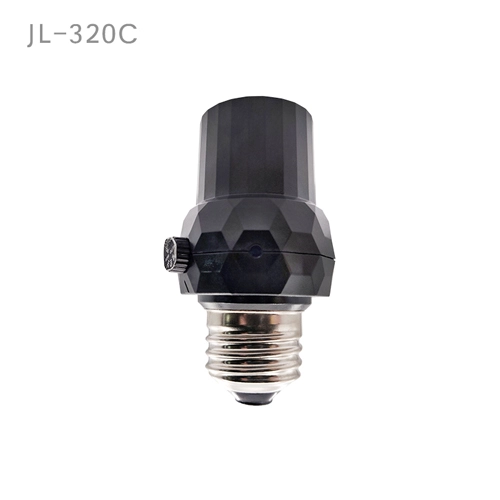

JL-320C E26 Bulb Socket Type Overview:

The JL-320C is a sophisticated light controller designed around the E26 adapter. It incorporates a light sensor that gauges the ambient light level and toggles the bulb’s operation in accordance with the user’s preferences, which are set using the adjustable rotating gear.

JL-320C E26 Bulb Socket Type Specifications

Model No.	JL-320C
Rated Voltage	120VAC & 240VAC
Applicable Voltage Range	105~305VAC
Rated Frequency	50/60Hz
Rated Loading	150W Tungsten 2A@120VAC e-Ballast 1A@240VAC e-Ballast
6 functions	ON: Always On Auto: Turn On/Off according to ambient light level 2h: Keep On for 2 hours after turned on by auto 5h: Keep On for 5 hours after turned on by auto 8h: Keep On for 8 hours after turned on by auto RDM: Keep On for 2h/5h/8h randomly after turned on by auto
Sensor type	IR-filtered phototransistor
Turn on level	20 Lx（±5 Lx）
Turn off level	Initial: 50±5 Lx *Once reflected light (Δ) is detected: 50+Δ±5 Lx
Reflected light Compensation upper limit	1200±100 Lx
Initialization stage	5s (On)

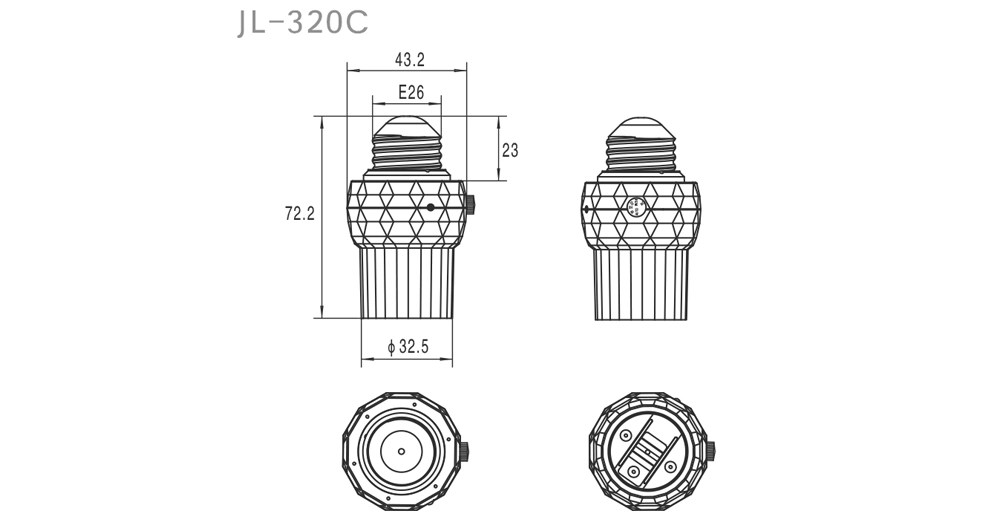

Adaptor	E26
Turn on delay	5s
Failure mode	Fail-Off
Operating Temperature	-40℃~70℃
Related Humidity	96%
FCC	Class B
Zero Crossing Control	Built-in
Certifications

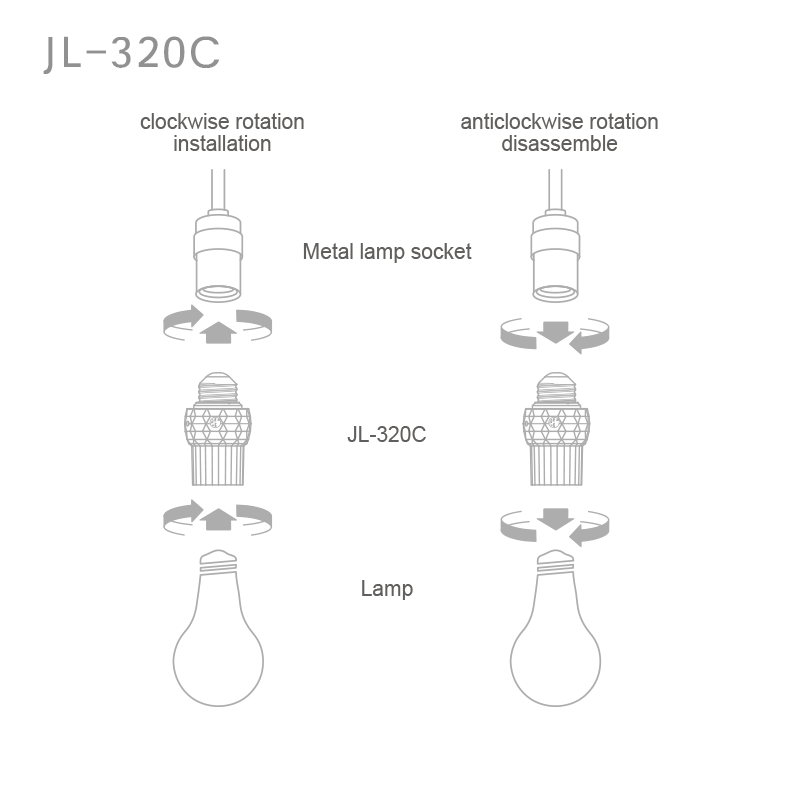

JL-320C E26 Bulb Socket Type Installation

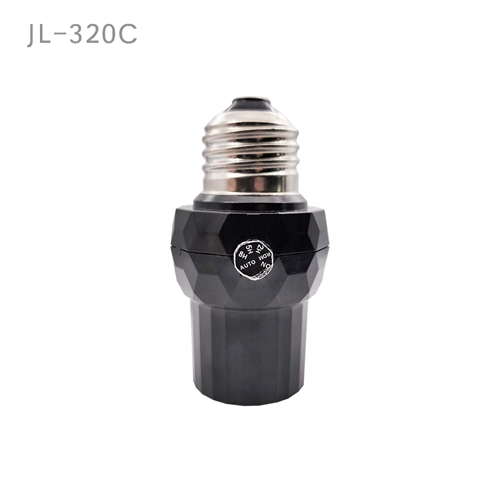

Select a function with the setting gear.
Disconnect power.
Screw bulb off from E26 socket.
Put the light control unit into the E26 socket, and then turn clockwise to tighten.

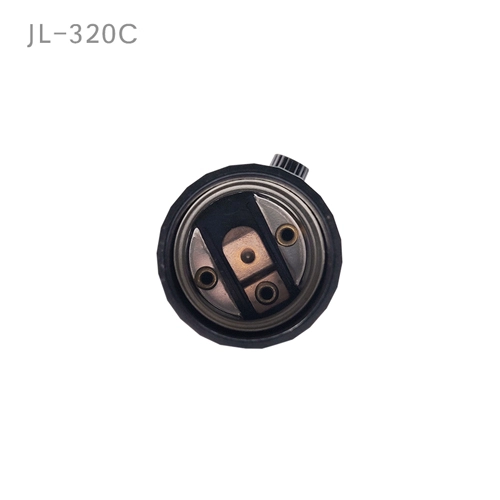

Screw bulb into the bulb holder of the unit.
Connect power; Turn lamp switch ON.
Avoid to use the unit in an opaque or reflective glass lantern, as well as use in a wet place.

JL-320C E26 Bulb Socket Type Installation
