Name: JL-215C NEMA Interface
Brand: Shanghai Long-Join Intelligent Technology Inc.

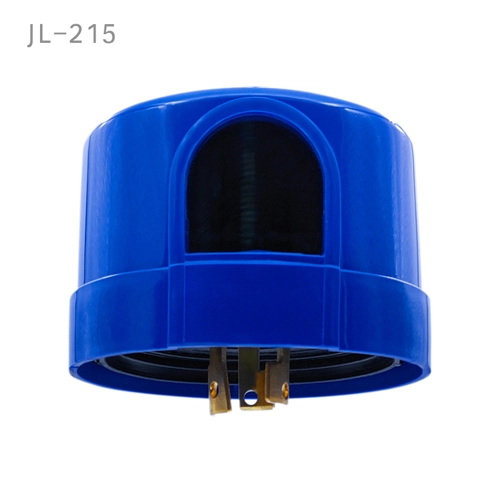

JL-215C NEMA Interface Overview:

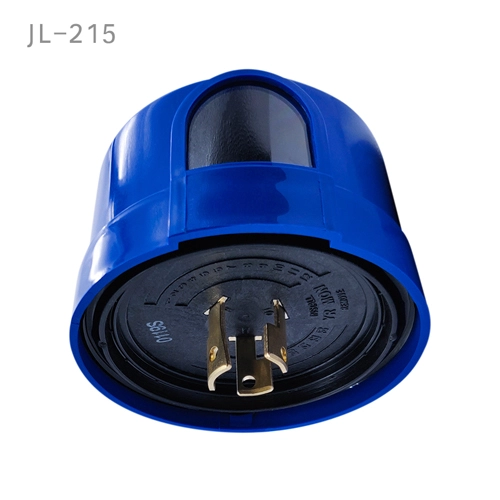

The JL-215C photocontrol is designed to automatically manage street, garden, corridor, and entrance lighting based on the surrounding environmental light levels. It features electronic circuits with a phototransistor sensor and includes a surge arrester (MOV) for added protection. Notably, the JL-215C model outperforms the JL-205C series in terms of power factor. It also incorporates a pre-set time delay of 3-20 seconds to prevent unnecessary activation from vehicle headlights or nighttime lightning. This device is equipped with twist-lock terminals that comply with ANSI C136.10 standards and the ANSI/UL773 specification for plug-in, locking type photocontrols used in area lighting.

JL-215C NEMA Interface Specifications

Model No.	JL-215C
Rated Voltage	120~277VAC
Rated Frequency	50/60Hz
Applicable Voltage Range	105~305VAC
Rated Loading	1000W Tungsten, 1800VA Ballast 8A@120VAC/5A@208-277VAC e-Ballast
Power Consumption	0.5W Max.
Operate Levels	10~30Lx Turn-On / 30~60Lx Turn-Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	96%
Fail Mode	Fail-On
Shell material	optional Sandwich cover
FCC	●
IP level	IP54 / IP65 / IP67
Certifications
