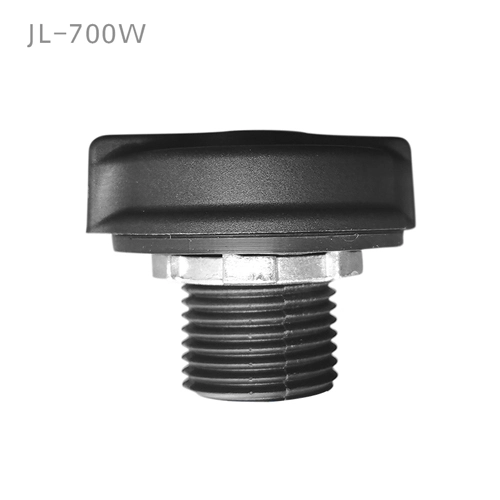

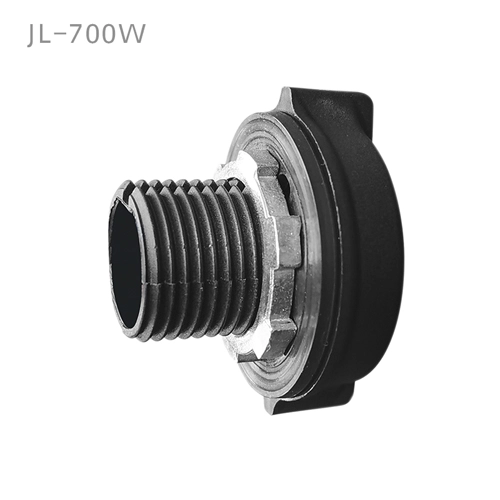

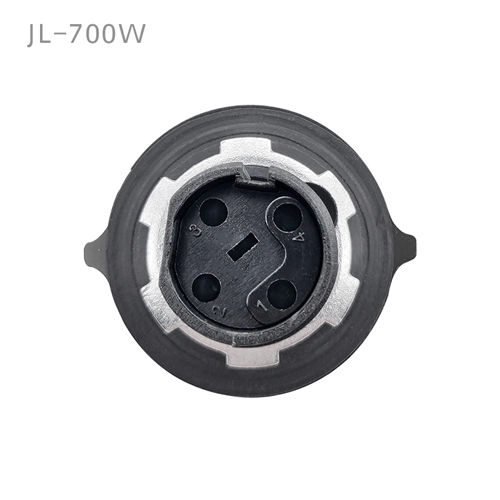

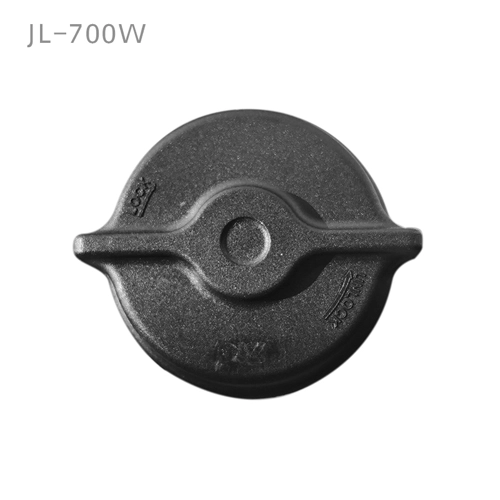

JL-700W Leadless Version

Zhaga Book-18 Receptacle

JL-700W Leadless Version Features:

  • Standardized interface defined in Zhaga Book-18

  • Compact size allowing greater flexibility in luminaire design

  • Advanced sealing to achieve IP66 with no mounting screws

  • Flexible mounting position, upwards, downwards and sideways facing

  • Integrated single gasket that seals to both luminaire and module that minimizes assembling time

JL-700W Leadless Version Overview:

Jl-700W locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R、Z-LEX-C) and has passed relevant certification, which is convenient for the development and installation of road lighting, regional lighting or commercial and residential lighting, such as street lights, industrial and mining lights, corridor lights, wall lights, etc.
JL-700W Leadless Version Overview:

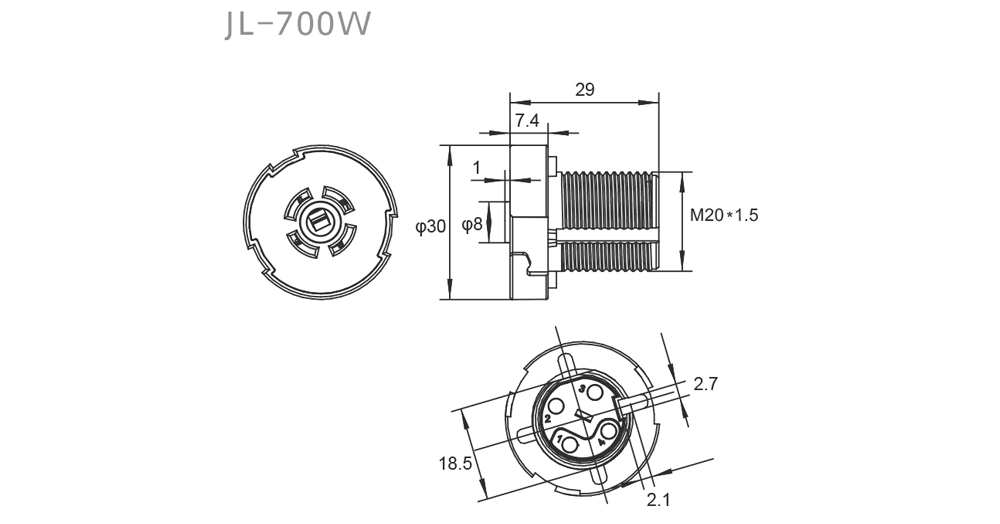

JL-700W Leadless Version Specifications

Model No.

JL-700W

Rated Voltage

24VDC

Power Consumption

1.5A MAX

Related Humidity

-40°C ~ +70 °C

Ambient Temperature

96%

Wires

20~22AWG, Strip the head 9 ~ 11mm and tin it

IP

IP66

Certifications

JL-700W Leadless VersionJL-700W Leadless VersionJL-700W Leadless VersionJL-700W Leadless VersionJL-700W Leadless VersionJL-700W Leadless VersionJL-700W Leadless Version

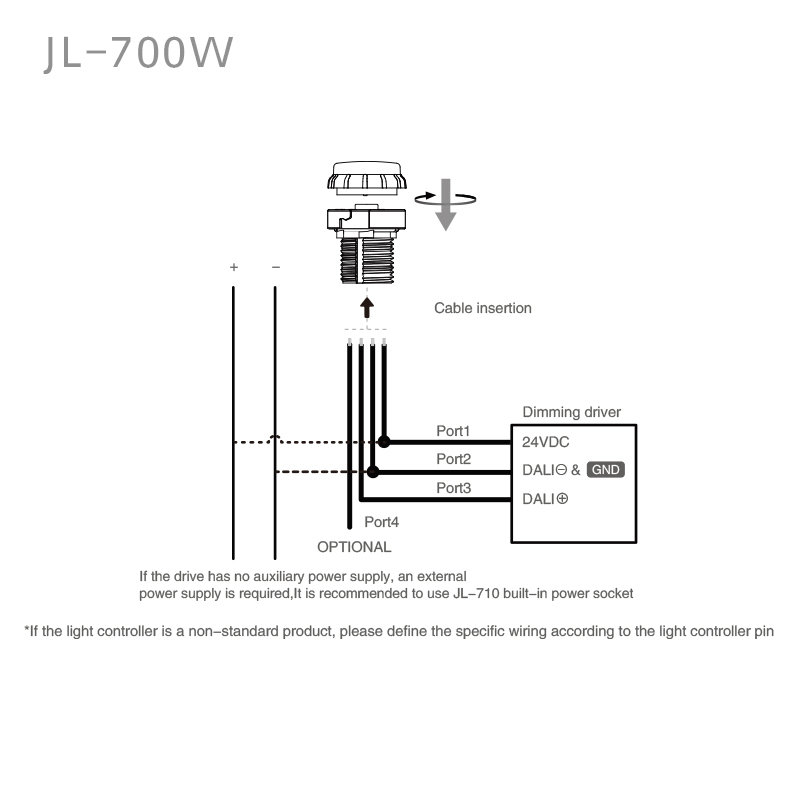

JL-700W Leadless Version Installation

JL-700W Leadless Version Installation

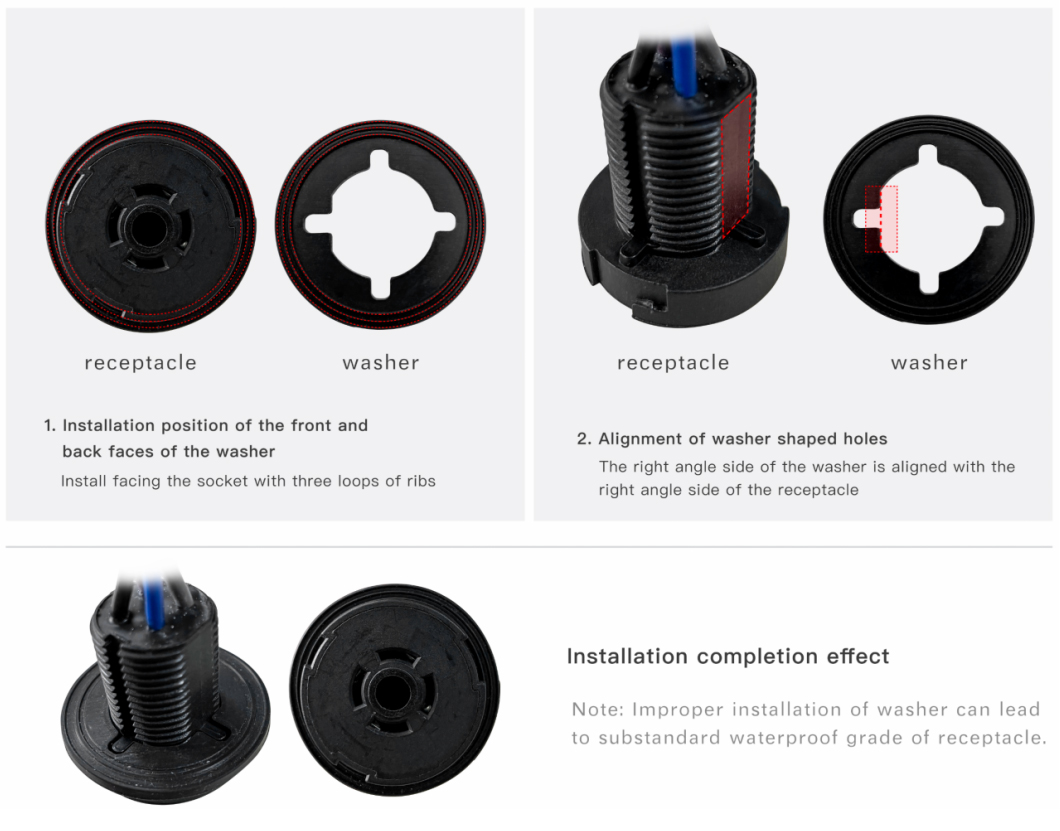

Precautions for installation of gaskets for Zhaga socket products

JL-700W Leadless Version Installation
