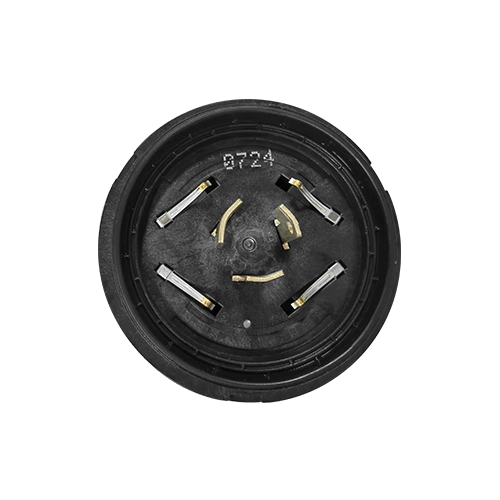

JL-242JV NEMA Interface Light Controller Cover

Name: JL-242JV NEMA Interface Light Controller Cover
Brand: Shanghai Long-Join Intelligent Technology Inc.

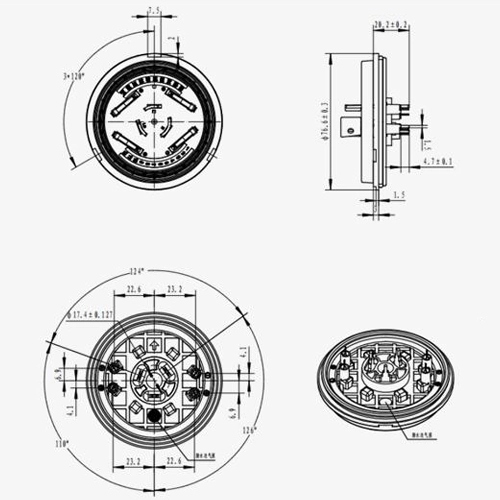

Diameter 76.6mm Height 11.7mm Add Waterproof Breathable Membrane

The foundation of the single-lamp controller features 5-pin and 7-pin NEMA socket configurations, perfectly aligned for the regulation of energy-saving lighting solutions and the operation of controllers within complex electronic systems. The power interface is fitted with a conventional NEMA plug that includes a twist-lock function for a durable and stable connection. Additionally, the communication link is facilitated by gold-plated spring contacts, which are designed to maintain steady and dependable signal transmission, thereby enabling sophisticated control and management of lighting equipment.

JL-242JV NEMA Interface Light Controller Cover Specifications

Model Number	JL-242J/JV
Rated Voltage	Max 480Vac
Rated Frequency	50/60Hz
Rated Load	15A
Signal Control	0-30 VDC, 250 mA Max
IP Level	IP66 (Reachable after assembly)
Material	PBT
Operating Temperature	-40℃ ~ +70℃
